0x00

总结记录一下_IO_FILE的基础知识
参考博客
linux IO_FILE 利用_io list all结构体-CSDN博客
【IO_FILE】源码详解 | Loora1N’s Blog | 鹭雨
【PWN】iofile | 狼组安全团队公开知识库

0x01 _IO_FILE结构

FILE 在 Linux 系统的标准 IO 库中是用于描述文件的结构，称为文件流。 FILE 结构在程序执行 fopen 等函数时会进行创建，并分配在堆中。我们常定义一个指向 FILE 结构的指针来接收这个返回值。FILE 结构定义在 libio.h 中，如下所示

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
struct _IO_FILE {
  int _flags;       /* High-order word is _IO_MAGIC; rest is flags. */
#define _IO_file_flags _flags

  /* The following pointers correspond to the C++ streambuf protocol. */
  /* Note:  Tk uses the _IO_read_ptr and _IO_read_end fields directly. */
  char* _IO_read_ptr;   /* Current read pointer */
  char* _IO_read_end;   /* End of get area. */
  char* _IO_read_base;  /* Start of putback+get area. */
  char* _IO_write_base; /* Start of put area. */
  char* _IO_write_ptr;  /* Current put pointer. */
  char* _IO_write_end;  /* End of put area. */
  char* _IO_buf_base;   /* Start of reserve area. */
  char* _IO_buf_end;    /* End of reserve area. */
  /* The following fields are used to support backing up and undo. */
  char *_IO_save_base; /* Pointer to start of non-current get area. */
  char *_IO_backup_base;  /* Pointer to first valid character of backup area */
  char *_IO_save_end; /* Pointer to end of non-current get area. */

  struct _IO_marker *_markers;

  struct _IO_FILE *_chain;

  int _fileno;
#if 0
  int _blksize;
#else
  int _flags2;
#endif
  _IO_off_t _old_offset; /* This used to be _offset but it's too small.  */

#define __HAVE_COLUMN /* temporary */
  /* 1+column number of pbase(); 0 is unknown. */
  unsigned short _cur_column;
  signed char _vtable_offset;
  char _shortbuf[1];

  /*  char* _save_gptr;  char* _save_egptr; */

  _IO_lock_t *_lock;
#ifdef _IO_USE_OLD_IO_FILE
};
struct _IO_FILE_complete
{
  struct _IO_FILE _file;
#endif
#if defined _G_IO_IO_FILE_VERSION && _G_IO_IO_FILE_VERSION == 0x20001
  _IO_off64_t _offset;
# if defined _LIBC || defined _GLIBCPP_USE_WCHAR_T
  /* Wide character stream stuff.  */
  struct _IO_codecvt *_codecvt;
  struct _IO_wide_data *_wide_data;
  struct _IO_FILE *_freeres_list;
  void *_freeres_buf;
# else
  void *__pad1;
  void *__pad2;
  void *__pad3;
  void *__pad4;

  size_t __pad5;
  int _mode;
  /* Make sure we don't get into trouble again.  */
  char _unused2[15 * sizeof (int) - 4 * sizeof (void *) - sizeof (size_t)];
#endif
};

其中的第一个成员_flags是一个非常重要且关键的值。其高两个字节是_IO_MAGIC（一个宏，其值为0xFBAD0000），用于检查_IO_file的合法性。glibc中存在的检查如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
#define _IO_MAGIC 0xFBAD0000
#define _IO_MAGIC_MASK 0xFFFF0000
/*glibc中一个用于检查的宏如下*/
#define CHECK_FILE(FILE, RET) do {
    if ((FILE) == NULL ||
        ((FILE)->_flags & _IO_MAGIC_MASK) != _IO_MAGIC) {
        __set_errno (EINVAL);
        return RET;
    }
} while (0)
/*glibc 在遍历 _IO_list_all （全局 FILE 链表）进行 flush/unbuffer 操作时，通常使用如下方式过滤不合法的文件*/
for (fp = (FILE *) _IO_list_all; fp; fp = fp->_chain) {
    if (((fp->_flags & _IO_MAGIC_MASK) != _IO_MAGIC) …)
        continue;
    …
}

而_flags的低二字节，也就是低16bit是一个状态码，用于控制控制 FILE 的读写状态、缓存、put/get 模式、错误状态等

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
#define _IO_MAGIC 0xFBAD0000           /* Magic number 文件结构体的魔数，用于标识文件结构体的有效性 */
#define _OLD_STDIO_MAGIC 0xFABC0000    /* Emulate old stdio 模拟旧的标准输入输出库（stdio）行为的魔数 */
#define _IO_MAGIC_MASK 0xFFFF0000      /* Magic mask 魔数掩码，用于从 _flags 变量中提取魔数部分 */
#define _IO_USER_BUF 1                 /* User owns buffer; don't delete it on close. 用户拥有缓冲区，不在关闭时删除缓冲区 */
#define _IO_UNBUFFERED 2               /* Unbuffered 无缓冲模式，直接进行I/O操作，不使用缓冲区 */
#define _IO_NO_READS 4                 /* Reading not allowed 不允许读取操作 */
#define _IO_NO_WRITES 8                /* Writing not allowed 不允许写入操作 */
#define _IO_EOF_SEEN 0x10              /* EOF seen 已经到达文件结尾（EOF） */
#define _IO_ERR_SEEN 0x20              /* Error seen 已经发生错误 */
#define _IO_DELETE_DONT_CLOSE 0x40     /* Don't call close(_fileno) on cleanup. 不关闭文件描述符 _fileno，在清理时不调用 close 函数 */
#define _IO_LINKED 0x80                /* Set if linked (using _chain) to streambuf::_list_all. 链接到一个链表（使用 _chain 指针），用于 streambuf::_list_all */
#define _IO_IN_BACKUP 0x100            /* In backup 处于备份模式 */
#define _IO_LINE_BUF 0x200             /* Line buffered 行缓冲模式，在输出新行时刷新缓冲区 */
#define _IO_TIED_PUT_GET 0x400         /* Set if put and get pointer logically tied. 在输出和输入指针逻辑上绑定时设置 */
#define _IO_CURRENTLY_PUTTING 0x800    /* Currently putting 当前正在执行 put 操作 */
#define _IO_IS_APPENDING 0x1000        /* Is appending 处于附加模式（在文件末尾追加内容） */
#define _IO_IS_FILEBUF 0x2000          /* Is file buffer 是一个文件缓冲区 */
#define _IO_BAD_SEEN 0x4000            /* Bad seen 遇到错误（bad flag set） */
#define _IO_USER_LOCK 0x8000           /* User lock 用户锁定，防止其他线程访问 */

_IO_read_ptr正在使用的input缓冲区的input地址
_IO_read_end input缓冲区的结束地址
_IO_read_base input缓冲区的基址
_IO_write_base output缓冲区的基址
_IO_write_ptr 指向还没输出的那个字节
_IO_write_end output缓冲区的结束地址
_IO_buf_base input和output缓冲区的基址
_IO_buf_end input和output缓冲区的结束地址
_chain 为_IO_FILE *类型，存放着一个单链表，用于串联所有的file stream（其实就是_IO_FILE结构体），表头通过_IO_list_all指针访问，注意_IO_list_all便是_IO_FILE_plus *类型的。结构如下所示

_fileno 与文件相关的文件描述符（例如stdin为0，stdout为1，stderr为2）
_vtable_offset 存放虚表(virtual table)的偏移
_offset 存放当前文件的偏移
至于vtable，为函数指针结构体，存放着各种 IO 相关的函数的指针，可以在另一个结构体_IO_FILE_plus中看到。

1
2
3
4
5
struct _IO_FILE_plus
{
  _IO_FILE file;
  const struct _IO_jump_t *vtable;
};

_IO_jump_t定义如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
struct _IO_jump_t
{
    JUMP_FIELD(size_t, __dummy);
    JUMP_FIELD(size_t, __dummy2);
    JUMP_FIELD(_IO_finish_t, __finish);
    JUMP_FIELD(_IO_overflow_t, __overflow);
    JUMP_FIELD(_IO_underflow_t, __underflow);
    JUMP_FIELD(_IO_underflow_t, __uflow);
    JUMP_FIELD(_IO_pbackfail_t, __pbackfail);
    /* showmany */
    JUMP_FIELD(_IO_xsputn_t, __xsputn);
    JUMP_FIELD(_IO_xsgetn_t, __xsgetn);
    JUMP_FIELD(_IO_seekoff_t, __seekoff);
    JUMP_FIELD(_IO_seekpos_t, __seekpos);
    JUMP_FIELD(_IO_setbuf_t, __setbuf);
    JUMP_FIELD(_IO_sync_t, __sync);
    JUMP_FIELD(_IO_doallocate_t, __doallocate);
    JUMP_FIELD(_IO_read_t, __read);
    JUMP_FIELD(_IO_write_t, __write);
    JUMP_FIELD(_IO_seek_t, __seek);
    JUMP_FIELD(_IO_close_t, __close);
    JUMP_FIELD(_IO_stat_t, __stat);
    JUMP_FIELD(_IO_showmanyc_t, __showmanyc);
    JUMP_FIELD(_IO_imbue_t, __imbue);
#if 0
    get_column;
    set_column;
#endif
};

IO函数便会调用这个表中的函数，以fopen，fread，fwrite，fclose为例
fopen函数是在分配空间，建立FILE结构体，未调用vtable中的函数。
fread函数中调用的vtable函数有：
* _IO_sgetn函数调用了vtable的_IO_file_xsgetn。
* _IO_doallocbuf函数调用了vtable的_IO_file_doallocate以初始化输入缓冲区。
* vtable中的_IO_file_doallocate调用了vtable中的__GI__IO_file_stat以获取文件信息。
* __underflow函数调用了vtable中的_IO_new_file_underflow实现文件数据读取。
* vtable中的_IO_new_file_underflow调用了vtable__GI__IO_file_read最终去执行系统调用read。
fwrite 函数调用的vtable函数有：
* _IO_fwrite函数调用了vtable的_IO_new_file_xsputn。
* _IO_new_file_xsputn函数调用了vtable中的_IO_new_file_overflow实现缓冲区的建立以及刷新缓冲区。
* vtable中的_IO_new_file_overflow函数调用了vtable的_IO_file_doallocate以初始化输入缓冲区。
* vtable中的_IO_file_doallocate调用了vtable中的__GI__IO_file_stat以获取文件信息。
* new_do_write中的_IO_SYSWRITE调用了vtable_IO_new_file_write最终去执行系统调用write。
fclose函数调用的vtable函数有：
* 在清空缓冲区的_IO_do_write函数中会调用vtable中的函数。
* 关闭文件描述符_IO_SYSCLOSE函数为vtable中的__close函数。
* _IO_FINISH函数为vtable中的__finish函数。

一个程序初始情况下有三个_IO_FILE，分别为 _IO_2_1_stderr_ ，_IO_2_1_stdout_，_IO_2_1_stdin，_IO_list_all初始默认指向_IO_2_1_stderr_
并且存在 3 个全局指针 stdin，stdout，stderr 分别指向 _IO_2_1_stdin_，_IO_2_1_stdout_，_IO_2_1_stderr_ 三个结构体

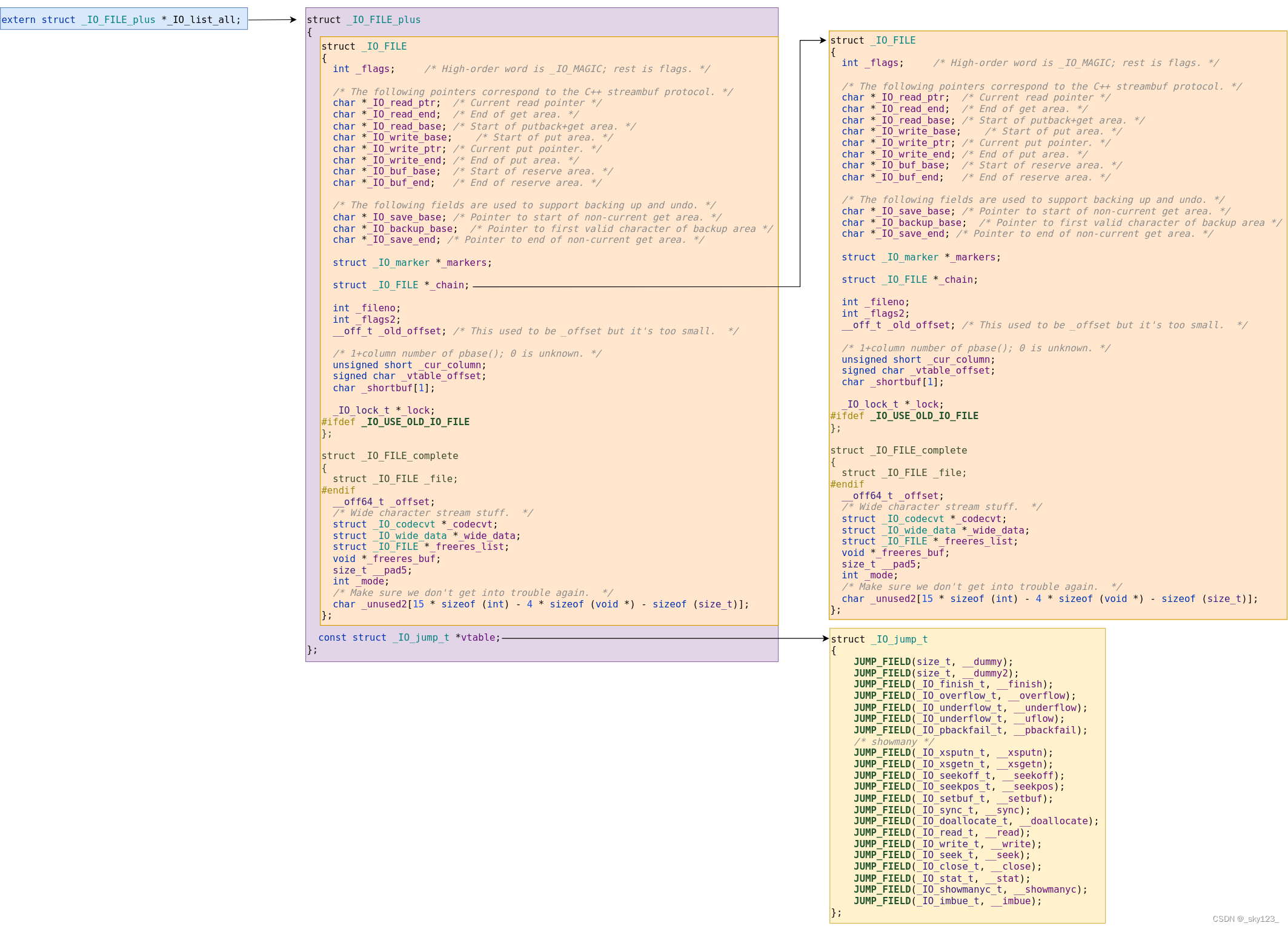

结构如下所示

程序在进行文件IO操作时候，便会创建_IO_FILE_plus结构体，并使用头插法接入_IO_list_all链表中
下面就分析一下fopen，fread，fwrite，fclose四个函数，来学习一下_IO_FILE_plus的作用机制（因为笔者本地没有下载glibc的源码，自己看源码的时候都是从其他地方看，因为懒得再从其他地方贴源码过来，所以下面调试都是硬看汇编的）
再放上结构体内的偏移对应

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
amd64：

0x0:'_flags',
0x8:'_IO_read_ptr',
0x10:'_IO_read_end',
0x18:'_IO_read_base',
0x20:'_IO_write_base',
0x28:'_IO_write_ptr',
0x30:'_IO_write_end',
0x38:'_IO_buf_base',
0x40:'_IO_buf_end',
0x48:'_IO_save_base',
0x50:'_IO_backup_base',
0x58:'_IO_save_end',
0x60:'_markers',
0x68:'_chain',
0x70:'_fileno',
0x74:'_flags2',
0x78:'_old_offset',
0x80:'_cur_column',
0x82:'_vtable_offset',
0x83:'_shortbuf',
0x88:'_lock',
0x90:'_offset',
0x98:'_codecvt',
0xa0:'_wide_data',
0xa8:'_freeres_list',
0xb0:'_freeres_buf',
0xb8:'__pad5',
0xc0:'_mode',
0xc4:'_unused2',
0xd8:'vtable'

0x02 fopen函数

写个demo来调试一下（glibc2.35）

1
2
3
4
5
6
7
8
9
#include<stdio.h>
#include<stdlib.h>

int main(){

    FILE*fp = fopen("test.txt","wb");
    char *ptr = malloc(0x20);
    return 0;
}

在fopen下个断点跟进fopen函数看看
发现fopen函数实际上是_IO_new_fopen
其汇编如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
pwndbg> disass
Dump of assembler code for function _IO_new_fopen:
=> 0x00007ffff7c7f630 <+0>:     endbr64
   0x00007ffff7c7f634 <+4>:     push   r13
   0x00007ffff7c7f636 <+6>:     mov    r13,rsi
   0x00007ffff7c7f639 <+9>:     push   r12
   0x00007ffff7c7f63b <+11>:    push   rbp
   0x00007ffff7c7f63c <+12>:    mov    rbp,rdi
   0x00007ffff7c7f63f <+15>:    mov    edi,0x1d8
   0x00007ffff7c7f644 <+20>:    push   rbx
   0x00007ffff7c7f645 <+21>:    sub    rsp,0x8
   0x00007ffff7c7f649 <+25>:    call   0x7ffff7c28380 <malloc@plt>
   0x00007ffff7c7f64e <+30>:    test   rax,rax
   0x00007ffff7c7f651 <+33>:    je     0x7ffff7c7f721 <_IO_new_fopen+241>
   0x00007ffff7c7f657 <+39>:    mov    rbx,rax
   0x00007ffff7c7f65a <+42>:    lea    rax,[rax+0xe0]
   0x00007ffff7c7f661 <+49>:    xor    edx,edx
   0x00007ffff7c7f663 <+51>:    xor    esi,esi
   0x00007ffff7c7f665 <+53>:    mov    QWORD PTR [rbx+0x88],rax
   0x00007ffff7c7f66c <+60>:    lea    rcx,[rbx+0xf0]
   0x00007ffff7c7f673 <+67>:    mov    rdi,rbx
   0x00007ffff7c7f676 <+70>:    mov    r12,rbx
   0x00007ffff7c7f679 <+73>:    lea    r8,[rip+0x197a40]        # 0x7ffff7e170c0 <_IO_wfile_jumps>
   0x00007ffff7c7f680 <+80>:    call   0x7ffff7c8e650 <_IO_no_init>
   0x00007ffff7c7f685 <+85>:    lea    rax,[rip+0x197f74]        # 0x7ffff7e17600 <_IO_file_jumps>
   0x00007ffff7c7f68c <+92>:    mov    rdi,rbx
   0x00007ffff7c7f68f <+95>:    mov    QWORD PTR [rbx+0xd8],rax
   0x00007ffff7c7f696 <+102>:   call   0x7ffff7c8be10 <_IO_new_file_init_internal>
   0x00007ffff7c7f69b <+107>:   mov    ecx,0x1
   0x00007ffff7c7f6a0 <+112>:   mov    rdx,r13
   0x00007ffff7c7f6a3 <+115>:   mov    rsi,rbp
   0x00007ffff7c7f6a6 <+118>:   mov    rdi,rbx
   0x00007ffff7c7f6a9 <+121>:   call   0x7ffff7c8c180 <_IO_new_file_fopen>
   0x00007ffff7c7f6ae <+126>:   test   rax,rax
   0x00007ffff7c7f6b1 <+129>:   je     0x7ffff7c7f700 <_IO_new_fopen+208>
   0x00007ffff7c7f6b3 <+131>:   test   BYTE PTR [rbx+0x74],0x1
   0x00007ffff7c7f6b7 <+135>:   je     0x7ffff7c7f6ed <_IO_new_fopen+189>
   0x00007ffff7c7f6b9 <+137>:   test   BYTE PTR [rbx],0x8
   0x00007ffff7c7f6bc <+140>:   je     0x7ffff7c7f6ed <_IO_new_fopen+189>
   0x00007ffff7c7f6be <+142>:   mov    ecx,DWORD PTR [rbx+0xc0]
   0x00007ffff7c7f6c4 <+148>:   lea    rdx,[rip+0x197875]        # 0x7ffff7e16f40 <_IO_wfile_jumps_maybe_mmap>
   0x00007ffff7c7f6cb <+155>:   lea    rax,[rip+0x197dae]        # 0x7ffff7e17480 <_IO_file_jumps_maybe_mmap>
   0x00007ffff7c7f6d2 <+162>:   test   ecx,ecx
   0x00007ffff7c7f6d4 <+164>:   cmovg  rax,rdx
   0x00007ffff7c7f6d8 <+168>:   mov    QWORD PTR [rbx+0xd8],rax
   0x00007ffff7c7f6df <+175>:   mov    rax,QWORD PTR [rbx+0xa0]
   0x00007ffff7c7f6e6 <+182>:   mov    QWORD PTR [rax+0xe0],rdx
   0x00007ffff7c7f6ed <+189>:   add    rsp,0x8
   0x00007ffff7c7f6f1 <+193>:   mov    rax,r12
   0x00007ffff7c7f6f4 <+196>:   pop    rbx
   0x00007ffff7c7f6f5 <+197>:   pop    rbp
   0x00007ffff7c7f6f6 <+198>:   pop    r12
   0x00007ffff7c7f6f8 <+200>:   pop    r13
   0x00007ffff7c7f6fa <+202>:   ret
   0x00007ffff7c7f6fb <+203>:   nop    DWORD PTR [rax+rax*1+0x0]
   0x00007ffff7c7f700 <+208>:   mov    rdi,rbx
   0x00007ffff7c7f703 <+211>:   xor    r12d,r12d
   0x00007ffff7c7f706 <+214>:   call   0x7ffff7c8d2b0 <__GI__IO_un_link>
   0x00007ffff7c7f70b <+219>:   mov    rdi,rbx
   0x00007ffff7c7f70e <+222>:   call   0x7ffff7c28370 <free@plt>
   0x00007ffff7c7f713 <+227>:   add    rsp,0x8
   0x00007ffff7c7f717 <+231>:   mov    rax,r12
   0x00007ffff7c7f71a <+234>:   pop    rbx
   0x00007ffff7c7f71b <+235>:   pop    rbp
   0x00007ffff7c7f71c <+236>:   pop    r12
   0x00007ffff7c7f71e <+238>:   pop    r13
   0x00007ffff7c7f720 <+240>:   ret
   0x00007ffff7c7f721 <+241>:   xor    r12d,r12d
   0x00007ffff7c7f724 <+244>:   jmp    0x7ffff7c7f6ed <_IO_new_fopen+189>
End of assembler dump.

看到

1
0x7ffff7c7f649 <fopen64+25>    call   malloc@plt                  <malloc@plt>

先调用malloc来分配_IO_FILE_plus的内存，这也告诉我们_IO_FILE_plus是分配在堆上的，此时有了一个chunk位于0x555555559290

1
2
3
4
5
6
7
8
9
10
11
12
pwndbg> heap
Allocated chunk | PREV_INUSE
Addr: 0x555555559000
Size: 0x290 (with flag bits: 0x291)

Allocated chunk | PREV_INUSE
Addr: 0x555555559290
Size: 0x1e0 (with flag bits: 0x1e1)

Top chunk | PREV_INUSE
Addr: 0x555555559470
Size: 0x20b90 (with flag bits: 0x20b91)

然后到

1
0x00007ffff7c7f680 <+80>:    call   0x7ffff7c8e650 <_IO_no_init>

调用_IO_no_init函数，其又调用_IO_old_init函数
_IO_no_init函数结束后，我们查看这个chunk

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
 pwndbg> x/40gx 0x5555555592a0
0x5555555592a0: 0x00000000fbad0000      0x0000000000000000
0x5555555592b0: 0x0000000000000000      0x0000000000000000
0x5555555592c0: 0x0000000000000000      0x0000000000000000
0x5555555592d0: 0x0000000000000000      0x0000000000000000
0x5555555592e0: 0x0000000000000000      0x0000000000000000
0x5555555592f0: 0x0000000000000000      0x0000000000000000
0x555555559300: 0x0000000000000000      0x0000000000000000
0x555555559310: 0x0000000000000000      0x0000000000000000
0x555555559320: 0x0000000000000000      0x0000555555559380
0x555555559330: 0x0000000000000000      0x0000000000000000
0x555555559340: 0x0000555555559390      0x0000000000000000
0x555555559350: 0x0000000000000000      0x0000000000000000
0x555555559360: 0x0000000000000000      0x0000000000000000
0x555555559370: 0x0000000000000000      0x0000000000000000
0x555555559380: 0x0000000000000000      0x0000000000000000
0x555555559390: 0x0000000000000000      0x0000000000000000
0x5555555593a0: 0x0000000000000000      0x0000000000000000
0x5555555593b0: 0x0000000000000000      0x0000000000000000
0x5555555593c0: 0x0000000000000000      0x0000000000000000
0x5555555593d0: 0x0000000000000000      0x0000000000000000

可以看到完成了部分的初始化，例如_flags字段设置为了0xfbad0000
接着继续回到_IO_new_fopen继续初始化

1
2
0x7ffff7c7f68c <fopen64+92>         mov    rdi, rbx                        RDI => 0x5555555592a0 ◂— 0xfbad0000
  0x7ffff7c7f68f <fopen64+95>         mov    qword ptr [rbx + 0xd8], rax     [0x555555559378] <= 0x7ffff7e17600 (_IO_file_jumps) ◂— 0

可以看到设置了vtable指针的值到_IO_file_jumps

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$1 = {
  file = {
    _flags = -72548352,
    _IO_read_ptr = 0x0,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x0,
    _IO_buf_end = 0x0,
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x0,
    _fileno = 0,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = 0,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = 0,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

然后调用_IO_new_file_init_internal函数

1
0x7ffff7c7f696 <fopen64+102>        call   _IO_new_file_init_internal  <_IO_new_file_init_internal>

先继续设置_IO_FILE_plus部分字段的值

1
2
3
4
0x7ffff7c8be14 <_IO_new_file_init_internal+4>     or     dword ptr [rdi], 0x240c                        [0x5555555592a0] <= 0xfbad240c (0xfbad0000 | 0x240c)
  0x7ffff7c8be1a <_IO_new_file_init_internal+10>    push   rbx
  0x7ffff7c8be1b <_IO_new_file_init_internal+11>    mov    rbx, rdi                                       RBX => 0x5555555592a0 ◂— 0xfbad240c
  0x7ffff7c8be1e <_IO_new_file_init_internal+14>    mov    qword ptr [rdi + 0x90], 0xffffffffffffffff     [0x555555559330] <= 0xfffffffffffffff
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$2 = {
  file = {
    _flags = -72539124,
    _IO_read_ptr = 0x0,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x0,
    _IO_buf_end = 0x0,
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x0,
    _fileno = 0,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = 0,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

可以看到先设置了_flags字段的状态位（低两字节）为0x240c，同时设置_offset字段为-1
然后调用_IO_link_in函数

1
0x7ffff7c8be29 <_IO_new_file_init_internal+25>    call   _IO_link_in                 <_IO_link_in>

我们看此时_IO_list_all还指向_IO_2_1_stderr_

1
2
pwndbg> p _IO_list_all
$3 = (struct _IO_FILE_plus *) 0x7ffff7e1b6a0 <_IO_2_1_stderr_>

_IO_link_in函数先设置了_flags的状态位为0x248c，如下

1
2
0x7ffff7c8d2f2 <_IO_link_in+34>    mov    ebp, edx                        EBP => 0xfbad240c
0x7ffff7c8d2f4 <_IO_link_in+36>    and    ebp, 0x80                       EBP => 0 (0xfbad240c & 0x80)

然后又进行一些操作（懒得放了），接着调用了__libc_cleanup_push_defer进行一些清理

1
0x7ffff7c8d349 <_IO_link_in+121>    call   __libc_cleanup_push_defer   <__libc_cleanup_push_defer>

后续又是一些操作，然后调用__libc_cleanup_pop_restore

1
0x7ffff7c8d469 <_IO_link_in+409>    call   __libc_cleanup_pop_restore  <__libc_cleanup_pop_restore>

然后又是一些操作，回到_IO_new_file_init_internal函数，这时我们看创建的_IO_FILE_plus的状态

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$5 = {
  file = {
    _flags = -72538996,
    _IO_read_ptr = 0x0,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x0,
    _IO_buf_end = 0x0,
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 0,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = 0,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

发现其_chain域指向了_IO_2_1_stderr_，我们再看_IO_list_all指针

1
2
pwndbg> p _IO_list_all
$6 = (struct _IO_FILE_plus *) 0x5555555592a0

正指向我们创建的_IO_FILE_plus结构体，所以_IO_link_in正是把我们创建的_IO_FILE_plus结构体加入_IO_list_all全局链表中
然后_IO_new_file_init_internal将_fileno域设置为-1，接着回到_IO_new_fopen

1
2
3
0x7ffff7c8be2e <_IO_new_file_init_internal+30>    mov    dword ptr [rbx + 0x70], 0xffffffff             [0x555555559310] <= 0xffffffff
0x7ffff7c8be35 <_IO_new_file_init_internal+37>    pop    rbx                                            RBX => 0x5555555592a0
0x7ffff7c8be36 <_IO_new_file_init_internal+38>    ret                                <fopen64+107>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$7 = {
  file = {
    _flags = -72538996,
    _IO_read_ptr = 0x0,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x0,
    _IO_buf_end = 0x0,
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = -1,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = 0,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

然后调用_IO_file_fopen函数

1
0x7ffff7c7f6a9 <fopen64+121>                      call   _IO_file_fopen              <_IO_file_fopen>

其进行一些操作后调用open64函数，真正打开文件

1
2
3
4
► 0x7ffff7c8c0b1 <_IO_file_open+33>    call   open64                      <open64>
        file: 0x555555556007 ◂— 'test.txt'
        oflag: 0x241
        vararg: 0x1b6

open64返回_IO_file_fopen后，_IO_file_fopen进行一些操作，设置了_fileno域（文件描述符）

1
2
3
4
5
6
7
8
9
10
11
0x7ffff7c8c0b9 <_IO_file_open+41>    test   r12d, r12d     3 & 3     EFLAGS => 0x206 [ cf PF af zf sf IF df of ac ]
0x7ffff7c8c0bc <_IO_file_open+44>  ✘ js     _IO_file_open+192           <_IO_file_open+192>

0x7ffff7c8c0c2 <_IO_file_open+50>    mov    eax, dword ptr [rbx]             EAX, [0x5555555592a0] => 0xfbad248c
0x7ffff7c8c0c4 <_IO_file_open+52>    mov    edx, ebp                         EDX => 4
0x7ffff7c8c0c6 <_IO_file_open+54>    and    ebp, 0x1004                      EBP => 4 (0x4 & 0x1004)
0x7ffff7c8c0cc <_IO_file_open+60>    mov    dword ptr [rbx + 0x70], r12d     [0x555555559310] <= 3
0x7ffff7c8c0d0 <_IO_file_open+64>    and    edx, 0x100c                      EDX => 4 (0x4 & 0x100c)
0x7ffff7c8c0d6 <_IO_file_open+70>    and    eax, 0xffffeff3                  EAX => 0xfbad2480 (0xfbad248c & 0xffffeff3)
0x7ffff7c8c0db <_IO_file_open+75>    or     eax, edx                         EAX => 0xfbad2484 (0xfbad2480 | 0x4)
0x7ffff7c8c0dd <_IO_file_open+77>     mov    dword ptr [rbx], eax             [0x5555555592a0] <= 0xfbad2484
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$11 = {
  file = {
    _flags = -72539004,
    _IO_read_ptr = 0x0,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x0,
    _IO_buf_end = 0x0,
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = 0,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

可见_fileno已经被设置为3，_IO_file_fopen函数还设置了缓冲区等
后续再次调用_IO_link_in，应该是确保结构体状态的更新

1
2
3
4
5
0x7ffff7c8c0df <_IO_file_open+79>     cmp    ebp, 0x1004                      0x4 - 0x1004     EFLAGS => 0x287 [ CF PF af zf SF IF df of ac ]
0x7ffff7c8c0e5 <_IO_file_open+85>   ✔ jne    _IO_file_open+144           <_IO_file_open+144>
    ↓
0x7ffff7c8c120 <_IO_file_open+144>    mov    rdi, rbx                 RDI => 0x5555555592a0 ◂— 0xfbad2484
0x7ffff7c8c123 <_IO_file_open+147>    call   _IO_link_in                 <_IO_link_in>

后续调用了一些字符串解析函数，最后回到_IO_new_fopen函数，最后回到main函数结束

1
2
3
4
5
6
7
8
9
10
0x7ffff7c7f6b3 <fopen64+131>    test   byte ptr [rbx + 0x74], 1     0 & 1     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c7f6b7 <fopen64+135>  ✔ je     fopen64+189                 <fopen64+189>
    ↓
0x7ffff7c7f6ed <fopen64+189>    add    rsp, 8       RSP => 0x7fffffffdca8 (0x7fffffffdca0 + 0x8)
0x7ffff7c7f6f1 <fopen64+193>    mov    rax, r12     RAX => 0x5555555592a0 ◂— 0xfbad2484
0x7ffff7c7f6f4 <fopen64+196>    pop    rbx          RBX => 0
0x7ffff7c7f6f5 <fopen64+197>    pop    rbp          RBP => 0x7fffffffdce0
0x7ffff7c7f6f6 <fopen64+198>    pop    r12          R12 => 0x7fffffffddf8
0x7ffff7c7f6f8 <fopen64+200>    pop    r13          R13 => 0x555555555169 (main)
0x7ffff7c7f6fa <fopen64+202>    ret                                <main+37>

看最终返回的_IO_FILE_plus结构体

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$15 = {
  file = {
    _flags = -72539004,
    _IO_read_ptr = 0x0,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x0,
    _IO_buf_end = 0x0,
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = 0,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

0x03 fread函数

继续用fopen使用的demo，加一个fread函数即可（glibc2.35）

1
2
3
4
5
6
7
8
9
10
#include<stdio.h>
#include<stdlib.h>

int main(){

    FILE*fp = fopen("test.txt","rb");
    char *ptr = malloc(0x20);
    fread(ptr, 1, 20, fp);
    return 0;
}

在fread下个断点，查看其汇编代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
pwndbg> disass
Dump of assembler code for function __GI__IO_fread:
Address range 0x7ffff7c7fb30 to 0x7ffff7c7fc2e:
=> 0x00007ffff7c7fb30 <+0>:     endbr64
   0x00007ffff7c7fb34 <+4>:     push   r15
   0x00007ffff7c7fb36 <+6>:     push   r14
   0x00007ffff7c7fb38 <+8>:     push   r13
   0x00007ffff7c7fb3a <+10>:    push   r12
   0x00007ffff7c7fb3c <+12>:    mov    r12,rsi
   0x00007ffff7c7fb3f <+15>:    push   rbp
   0x00007ffff7c7fb40 <+16>:    imul   r12,rdx
   0x00007ffff7c7fb44 <+20>:    push   rbx
   0x00007ffff7c7fb45 <+21>:    sub    rsp,0x18
   0x00007ffff7c7fb49 <+25>:    test   r12,r12
   0x00007ffff7c7fb4c <+28>:    je     0x7ffff7c7fbe1 <__GI__IO_fread+177>
   0x00007ffff7c7fb52 <+34>:    mov    eax,DWORD PTR [rcx]
   0x00007ffff7c7fb54 <+36>:    mov    r14,rdi
   0x00007ffff7c7fb57 <+39>:    mov    rbp,rsi
   0x00007ffff7c7fb5a <+42>:    mov    r13,rdx
   0x00007ffff7c7fb5d <+45>:    mov    rbx,rcx
   0x00007ffff7c7fb60 <+48>:    and    eax,0x8000
   0x00007ffff7c7fb65 <+53>:    jne    0x7ffff7c7fb9b <__GI__IO_fread+107>
   0x00007ffff7c7fb67 <+55>:    mov    r15,QWORD PTR fs:0x10
   0x00007ffff7c7fb70 <+64>:    mov    rdi,QWORD PTR [rcx+0x88]
   0x00007ffff7c7fb77 <+71>:    cmp    QWORD PTR [rdi+0x8],r15
   0x00007ffff7c7fb7b <+75>:    je     0x7ffff7c7fb97 <__GI__IO_fread+103>
   0x00007ffff7c7fb7d <+77>:    mov    edx,0x1
   0x00007ffff7c7fb82 <+82>:    lock cmpxchg DWORD PTR [rdi],edx
   0x00007ffff7c7fb86 <+86>:    jne    0x7ffff7c7fc18 <__GI__IO_fread+232>
   0x00007ffff7c7fb8c <+92>:    mov    rdi,QWORD PTR [rbx+0x88]
   0x00007ffff7c7fb93 <+99>:    mov    QWORD PTR [rdi+0x8],r15
   0x00007ffff7c7fb97 <+103>:   add    DWORD PTR [rdi+0x4],0x1
   0x00007ffff7c7fb9b <+107>:   mov    rdx,r12
   0x00007ffff7c7fb9e <+110>:   mov    rsi,r14
   0x00007ffff7c7fba1 <+113>:   mov    rdi,rbx
   0x00007ffff7c7fba4 <+116>:   call   0x7ffff7c8dfd0 <__GI__IO_sgetn>
   0x00007ffff7c7fba9 <+121>:   test   DWORD PTR [rbx],0x8000
   0x00007ffff7c7fbaf <+127>:   jne    0x7ffff7c7fbd4 <__GI__IO_fread+164>
   0x00007ffff7c7fbb1 <+129>:   mov    rdi,QWORD PTR [rbx+0x88]
   0x00007ffff7c7fbb8 <+136>:   mov    ecx,DWORD PTR [rdi+0x4]
   0x00007ffff7c7fbbb <+139>:   lea    edx,[rcx-0x1]
   0x00007ffff7c7fbbe <+142>:   mov    DWORD PTR [rdi+0x4],edx
   0x00007ffff7c7fbc1 <+145>:   test   edx,edx
   0x00007ffff7c7fbc3 <+147>:   jne    0x7ffff7c7fbd4 <__GI__IO_fread+164>
   0x00007ffff7c7fbc5 <+149>:   mov    QWORD PTR [rdi+0x8],0x0
   0x00007ffff7c7fbcd <+157>:   xchg   DWORD PTR [rdi],edx
   0x00007ffff7c7fbcf <+159>:   cmp    edx,0x1
   0x00007ffff7c7fbd2 <+162>:   jg     0x7ffff7c7fc00 <__GI__IO_fread+208>
   0x00007ffff7c7fbd4 <+164>:   cmp    r12,rax
   0x00007ffff7c7fbd7 <+167>:   je     0x7ffff7c7fbf8 <__GI__IO_fread+200>
   0x00007ffff7c7fbd9 <+169>:   xor    edx,edx
   0x00007ffff7c7fbdb <+171>:   div    rbp
   0x00007ffff7c7fbde <+174>:   mov    r12,rax
   0x00007ffff7c7fbe1 <+177>:   add    rsp,0x18
   0x00007ffff7c7fbe5 <+181>:   mov    rax,r12
   0x00007ffff7c7fbe8 <+184>:   pop    rbx
   0x00007ffff7c7fbe9 <+185>:   pop    rbp
   0x00007ffff7c7fbea <+186>:   pop    r12
   0x00007ffff7c7fbec <+188>:   pop    r13
   0x00007ffff7c7fbee <+190>:   pop    r14
   0x00007ffff7c7fbf0 <+192>:   pop    r15
   0x00007ffff7c7fbf2 <+194>:   ret
   0x00007ffff7c7fbf3 <+195>:   nop    DWORD PTR [rax+rax*1+0x0]
   0x00007ffff7c7fbf8 <+200>:   mov    r12,r13
   0x00007ffff7c7fbfb <+203>:   jmp    0x7ffff7c7fbe1 <__GI__IO_fread+177>
   0x00007ffff7c7fbfd <+205>:   nop    DWORD PTR [rax]
   0x00007ffff7c7fc00 <+208>:   mov    QWORD PTR [rsp+0x8],rax
   0x00007ffff7c7fc05 <+213>:   call   0x7ffff7c91300 <__GI___lll_lock_wake_private>
   0x00007ffff7c7fc0a <+218>:   mov    rax,QWORD PTR [rsp+0x8]
   0x00007ffff7c7fc0f <+223>:   jmp    0x7ffff7c7fbd4 <__GI__IO_fread+164>
   0x00007ffff7c7fc11 <+225>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c7fc18 <+232>:   call   0x7ffff7c91230 <__GI___lll_lock_wait_private>
   0x00007ffff7c7fc1d <+237>:   jmp    0x7ffff7c7fb8c <__GI__IO_fread+92>
   0x00007ffff7c7fc22 <+242>:   endbr64
   0x00007ffff7c7fc26 <+246>:   mov    rbp,rax
   0x00007ffff7c7fc29 <+249>:   jmp    0x7ffff7c2910f <__GI__IO_fread.cold>
Address range 0x7ffff7c2910f to 0x7ffff7c29145:
   0x00007ffff7c2910f <-354849>:        test   DWORD PTR [rbx],0x8000
   0x00007ffff7c29115 <-354843>:        jne    0x7ffff7c2913d <__GI__IO_fread-354803>
   0x00007ffff7c29117 <-354841>:        mov    rdi,QWORD PTR [rbx+0x88]
   0x00007ffff7c2911e <-354834>:        mov    eax,DWORD PTR [rdi+0x4]
   0x00007ffff7c29121 <-354831>:        sub    eax,0x1
   0x00007ffff7c29124 <-354828>:        mov    DWORD PTR [rdi+0x4],eax
   0x00007ffff7c29127 <-354825>:        jne    0x7ffff7c2913d <__GI__IO_fread-354803>
   0x00007ffff7c29129 <-354823>:        mov    QWORD PTR [rdi+0x8],0x0
   0x00007ffff7c29131 <-354815>:        xchg   DWORD PTR [rdi],eax
   0x00007ffff7c29133 <-354813>:        sub    eax,0x1
   0x00007ffff7c29136 <-354810>:        jle    0x7ffff7c2913d <__GI__IO_fread-354803>
   0x00007ffff7c29138 <-354808>:        call   0x7ffff7c91300 <__GI___lll_lock_wake_private>
   0x00007ffff7c2913d <-354803>:        mov    rdi,rbp
   0x00007ffff7c29140 <-354800>:        call   0x7ffff7c2a120 <_Unwind_Resume>
End of assembler dump.

可以看到fread函数最起初实际上是_IO_fread函数，先计算需要读取的字节数

1
2
3
4
5
6
7
8
9
10
11
0x7ffff7c7fb34 <fread+4>     push   r15
0x7ffff7c7fb36 <fread+6>     push   r14
0x7ffff7c7fb38 <fread+8>     push   r13
0x7ffff7c7fb3a <fread+10>    push   r12
0x7ffff7c7fb3c <fread+12>    mov    r12, rsi      R12 => 1
0x7ffff7c7fb3f <fread+15>    push   rbp
0x7ffff7c7fb40 <fread+16>    imul   r12, rdx
0x7ffff7c7fb44 <fread+20>    push   rbx
0x7ffff7c7fb45 <fread+21>    sub    rsp, 0x18     RSP => 0x7fffffffdca0 (0x7fffffffdcb8 - 0x18)
0x7ffff7c7fb49 <fread+25>    test   r12, r12      0x14 & 0x14     EFLAGS => 0x206 [ cf PF af zf sf IF df of ac ]
0x7ffff7c7fb4c <fread+28>  ✘ je     fread+177                   <fread+177>

看到imul r12, rdx计算得到了需要读取的字节数（0x14正是demo中需要读取的字节数20），如果不为0则继续，为0则直接返回
接下来是针对_flags域进行了一些有关锁的操作，然后调用_IO_sgetn函数

1
2
3
4
0x7ffff7c7fb9b <fread+107>    mov    rdx, r12     RDX => 0x14
0x7ffff7c7fb9e <fread+110>    mov    rsi, r14     RSI => 0x555555559480 ◂— 0
0x7ffff7c7fba1 <fread+113>    mov    rdi, rbx     RDI => 0x5555555592a0 ◂— 0xfbad2484
0x7ffff7c7fba4 <fread+116>    call   _IO_sgetn                   <_IO_sgetn>

先放上_IO_sgetn的汇编

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
pwndbg> disass
Dump of assembler code for function __GI__IO_sgetn:
   0x00007ffff7c8dfd0 <+0>:     endbr64
   0x00007ffff7c8dfd4 <+4>:     push   rbx
   0x00007ffff7c8dfd5 <+5>:     lea    rcx,[rip+0x188a24]        # 0x7ffff7e16a00 <_IO_helper_jumps>
   0x00007ffff7c8dfdc <+12>:    lea    rax,[rip+0x189785]        # 0x7ffff7e17768
   0x00007ffff7c8dfe3 <+19>:    sub    rax,rcx
   0x00007ffff7c8dfe6 <+22>:    sub    rsp,0x20
   0x00007ffff7c8dfea <+26>:    mov    rbx,QWORD PTR [rdi+0xd8]
   0x00007ffff7c8dff1 <+33>:    mov    r8,rbx
   0x00007ffff7c8dff4 <+36>:    sub    r8,rcx
   0x00007ffff7c8dff7 <+39>:    cmp    rax,r8
   0x00007ffff7c8dffa <+42>:    jbe    0x7ffff7c8e010 <__GI__IO_sgetn+64>
=> 0x00007ffff7c8dffc <+44>:    mov    rax,QWORD PTR [rbx+0x40]
   0x00007ffff7c8e000 <+48>:    add    rsp,0x20
   0x00007ffff7c8e004 <+52>:    pop    rbx
   0x00007ffff7c8e005 <+53>:    jmp    rax
   0x00007ffff7c8e007 <+55>:    nop    WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8e010 <+64>:    mov    QWORD PTR [rsp+0x18],rdx
   0x00007ffff7c8e015 <+69>:    mov    QWORD PTR [rsp+0x10],rsi
   0x00007ffff7c8e01a <+74>:    mov    QWORD PTR [rsp+0x8],rdi
   0x00007ffff7c8e01f <+79>:    call   0x7ffff7c89ef0 <_IO_vtable_check>
   0x00007ffff7c8e024 <+84>:    mov    rax,QWORD PTR [rbx+0x40]
   0x00007ffff7c8e028 <+88>:    mov    rdx,QWORD PTR [rsp+0x18]
   0x00007ffff7c8e02d <+93>:    mov    rsi,QWORD PTR [rsp+0x10]
   0x00007ffff7c8e032 <+98>:    mov    rdi,QWORD PTR [rsp+0x8]
   0x00007ffff7c8e037 <+103>:   add    rsp,0x20
   0x00007ffff7c8e03b <+107>:   pop    rbx
   0x00007ffff7c8e03c <+108>:   jmp    rax
End of assembler dump.

回到调试，_IO_sgetn先进行安全检测

1
2
3
4
5
6
7
8
9
10
0x7ffff7c8dfd4 <_IO_sgetn+4>     push   rbx
► 0x7ffff7c8dfd5 <_IO_sgetn+5>     lea    rcx, [rip + 0x188a24]           RCX => 0x7ffff7e16a00 (_IO_helper_jumps) ◂— 0
0x7ffff7c8dfdc <_IO_sgetn+12>    lea    rax, [rip + 0x189785]           RAX => 0x7ffff7e17768 ◂— 0
0x7ffff7c8dfe3 <_IO_sgetn+19>    sub    rax, rcx                        RAX => 0xd68 (0x7ffff7e17768 - 0x7ffff7e16a00)
0x7ffff7c8dfe6 <_IO_sgetn+22>    sub    rsp, 0x20                       RSP => 0x7fffffffdc70 (0x7fffffffdc90 - 0x20)
0x7ffff7c8dfea <_IO_sgetn+26>    mov    rbx, qword ptr [rdi + 0xd8]     RBX, [0x555555559378] => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c8dff1 <_IO_sgetn+33>    mov    r8, rbx                         R8 => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c8dff4 <_IO_sgetn+36>    sub    r8, rcx                         R8 => 0xc00 (0x7ffff7e17600 - 0x7ffff7e16a00)
0x7ffff7c8dff7 <_IO_sgetn+39>    cmp    rax, r8                         0xd68 - 0xc00     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x7ffff7c8dffa <_IO_sgetn+42>  ✘ jbe    _IO_sgetn+64                <_IO_sgetn+64>

可以看到先计算了_IO_helper_jumps 到某个地址的偏移，又判断了vtable（注意看mov rbx, qword ptr [rdi + 0xd8]，0xd8正是vtable在_IO_FILE_plus中的偏移）是否在 _IO_helper_jumps 范围之外
<_IO_sgetn+64>处正是_IO_vtable_check函数

1
2
3
4
0x00007ffff7c8e010 <+64>:    mov    QWORD PTR [rsp+0x18],rdx
0x00007ffff7c8e015 <+69>:    mov    QWORD PTR [rsp+0x10],rsi
0x00007ffff7c8e01a <+74>:    mov    QWORD PTR [rsp+0x8],rdi
0x00007ffff7c8e01f <+79>:    call   0x7ffff7c89ef0 <_IO_vtable_check>

jbe跳转，表示如果 rax <= r8，则跳转，即vtable在不在指定范围内，调用_IO_vtable_check来进一步检查（见另一篇博客）
后续调用vtable中的_IO_file_xsgetn函数

1
2
3
4
0x7ffff7c8dffc <_IO_sgetn+44>              mov    rax, qword ptr [rbx + 0x40]     RAX, [_IO_file_jumps+64] => 0x7ffff7c8b2b0 (__GI__IO_file_xsgetn) ◂— endbr64
0x7ffff7c8e000 <_IO_sgetn+48>              add    rsp, 0x20                       RSP => 0x7fffffffdc90 (0x7fffffffdc70 + 0x20)
0x7ffff7c8e004 <_IO_sgetn+52>              pop    rbx                             RBX => 0x5555555592a0
0x7ffff7c8e005 <_IO_sgetn+53>              jmp    rax                         <__GI__IO_file_xsgetn>

可以看到rbx存储的是vtable地址，rbx + 0x40正是虚表中_IO_file_xsgetn函数
放上_IO_file_xsgetn的汇编

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
pwndbg> disass
Dump of assembler code for function __GI__IO_file_xsgetn:
=> 0x00007ffff7c8b2b0 <+0>:     endbr64
   0x00007ffff7c8b2b4 <+4>:     push   r15
   0x00007ffff7c8b2b6 <+6>:     push   r14
   0x00007ffff7c8b2b8 <+8>:     push   r13
   0x00007ffff7c8b2ba <+10>:    mov    r13,rsi
   0x00007ffff7c8b2bd <+13>:    push   r12
   0x00007ffff7c8b2bf <+15>:    push   rbp
   0x00007ffff7c8b2c0 <+16>:    push   rbx
   0x00007ffff7c8b2c1 <+17>:    mov    rbx,rdi
   0x00007ffff7c8b2c4 <+20>:    sub    rsp,0x18
   0x00007ffff7c8b2c8 <+24>:    cmp    QWORD PTR [rdi+0x38],0x0
   0x00007ffff7c8b2cd <+29>:    mov    QWORD PTR [rsp],rdx
   0x00007ffff7c8b2d1 <+33>:    je     0x7ffff7c8b4a8 <__GI__IO_file_xsgetn+504>
   0x00007ffff7c8b2d7 <+39>:    mov    rax,QWORD PTR [rsp]
   0x00007ffff7c8b2db <+43>:    lea    r15,[rip+0x18b71e]        # 0x7ffff7e16a00 <_IO_helper_jumps>
   0x00007ffff7c8b2e2 <+50>:    lea    r14,[rip+0x18c47f]        # 0x7ffff7e17768
   0x00007ffff7c8b2e9 <+57>:    sub    r14,r15
   0x00007ffff7c8b2ec <+60>:    mov    r12,rax
   0x00007ffff7c8b2ef <+63>:    test   rax,rax
   0x00007ffff7c8b2f2 <+66>:    je     0x7ffff7c8b3c4 <__GI__IO_file_xsgetn+276>
   0x00007ffff7c8b2f8 <+72>:    nop    DWORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8b300 <+80>:    mov    rsi,QWORD PTR [rbx+0x8]
   0x00007ffff7c8b304 <+84>:    mov    rbp,QWORD PTR [rbx+0x10]
   0x00007ffff7c8b308 <+88>:    sub    rbp,rsi
   0x00007ffff7c8b30b <+91>:    cmp    rbp,r12
   0x00007ffff7c8b30e <+94>:    jae    0x7ffff7c8b418 <__GI__IO_file_xsgetn+360>
   0x00007ffff7c8b314 <+100>:   test   rbp,rbp
   0x00007ffff7c8b317 <+103>:   jne    0x7ffff7c8b3d8 <__GI__IO_file_xsgetn+296>
   0x00007ffff7c8b31d <+109>:   test   DWORD PTR [rbx],0x100
   0x00007ffff7c8b323 <+115>:   jne    0x7ffff7c8b3f9 <__GI__IO_file_xsgetn+329>
   0x00007ffff7c8b329 <+121>:   mov    rcx,QWORD PTR [rbx+0x38]
   0x00007ffff7c8b32d <+125>:   test   rcx,rcx
   0x00007ffff7c8b330 <+128>:   je     0x7ffff7c8b3d0 <__GI__IO_file_xsgetn+288>
   0x00007ffff7c8b336 <+134>:   mov    rsi,QWORD PTR [rbx+0x40]
   0x00007ffff7c8b33a <+138>:   sub    rsi,rcx
   0x00007ffff7c8b33d <+141>:   cmp    rsi,r12
   0x00007ffff7c8b340 <+144>:   ja     0x7ffff7c8b430 <__GI__IO_file_xsgetn+384>
   0x00007ffff7c8b346 <+150>:   cmp    rsi,0x7f
   0x00007ffff7c8b34a <+154>:   jbe    0x7ffff7c8b3d0 <__GI__IO_file_xsgetn+288>
   0x00007ffff7c8b350 <+160>:   mov    rax,r12
   0x00007ffff7c8b353 <+163>:   xor    edx,edx
   0x00007ffff7c8b355 <+165>:   div    rsi
   0x00007ffff7c8b358 <+168>:   mov    rdi,rdx
   0x00007ffff7c8b35b <+171>:   mov    rdx,r12
   0x00007ffff7c8b35e <+174>:   sub    rdx,rdi
   0x00007ffff7c8b361 <+177>:   mov    rbp,QWORD PTR [rbx+0xd8]
   0x00007ffff7c8b368 <+184>:   movq   xmm0,rcx
   0x00007ffff7c8b36d <+189>:   punpcklqdq xmm0,xmm0
   0x00007ffff7c8b371 <+193>:   mov    rax,rbp
   0x00007ffff7c8b374 <+196>:   movups XMMWORD PTR [rbx+0x8],xmm0
   0x00007ffff7c8b378 <+200>:   sub    rax,r15
   0x00007ffff7c8b37b <+203>:   movups XMMWORD PTR [rbx+0x18],xmm0
   0x00007ffff7c8b37f <+207>:   movups XMMWORD PTR [rbx+0x28],xmm0
   0x00007ffff7c8b383 <+211>:   cmp    r14,rax
   0x00007ffff7c8b386 <+214>:   jbe    0x7ffff7c8b460 <__GI__IO_file_xsgetn+432>
   0x00007ffff7c8b38c <+220>:   mov    rsi,r13
   0x00007ffff7c8b38f <+223>:   mov    rdi,rbx
   0x00007ffff7c8b392 <+226>:   call   QWORD PTR [rbp+0x70]
   0x00007ffff7c8b395 <+229>:   test   rax,rax
   0x00007ffff7c8b398 <+232>:   jle    0x7ffff7c8b488 <__GI__IO_file_xsgetn+472>
   0x00007ffff7c8b39e <+238>:   mov    rdx,QWORD PTR [rbx+0x90]
   0x00007ffff7c8b3a5 <+245>:   add    r13,rax
   0x00007ffff7c8b3a8 <+248>:   sub    r12,rax
   0x00007ffff7c8b3ab <+251>:   cmp    rdx,0xffffffffffffffff
   0x00007ffff7c8b3af <+255>:   je     0x7ffff7c8b3bb <__GI__IO_file_xsgetn+267>
   0x00007ffff7c8b3b1 <+257>:   add    rdx,rax
   0x00007ffff7c8b3b4 <+260>:   mov    QWORD PTR [rbx+0x90],rdx
   0x00007ffff7c8b3bb <+267>:   test   r12,r12
   0x00007ffff7c8b3be <+270>:   jne    0x7ffff7c8b300 <__GI__IO_file_xsgetn+80>
   0x00007ffff7c8b3c4 <+276>:   mov    r13,QWORD PTR [rsp]
   0x00007ffff7c8b3c8 <+280>:   jmp    0x7ffff7c8b448 <__GI__IO_file_xsgetn+408>
   0x00007ffff7c8b3ca <+282>:   nop    WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8b3d0 <+288>:   mov    rdx,r12
   0x00007ffff7c8b3d3 <+291>:   jmp    0x7ffff7c8b361 <__GI__IO_file_xsgetn+177>
   0x00007ffff7c8b3d5 <+293>:   nop    DWORD PTR [rax]
   0x00007ffff7c8b3d8 <+296>:   mov    rdi,r13
   0x00007ffff7c8b3db <+299>:   mov    rdx,rbp
   0x00007ffff7c8b3de <+302>:   sub    r12,rbp
   0x00007ffff7c8b3e1 <+305>:   call   0x7ffff7c283e0 <*ABS*+0xa97d0@plt>
   0x00007ffff7c8b3e6 <+310>:   add    QWORD PTR [rbx+0x8],rbp
   0x00007ffff7c8b3ea <+314>:   mov    r13,rax
   0x00007ffff7c8b3ed <+317>:   test   DWORD PTR [rbx],0x100
   0x00007ffff7c8b3f3 <+323>:   je     0x7ffff7c8b329 <__GI__IO_file_xsgetn+121>
   0x00007ffff7c8b3f9 <+329>:   mov    rdi,rbx
   0x00007ffff7c8b3fc <+332>:   call   0x7ffff7c8d6b0 <_IO_switch_to_main_get_area>
   0x00007ffff7c8b401 <+337>:   mov    rsi,QWORD PTR [rbx+0x8]
   0x00007ffff7c8b405 <+341>:   mov    rbp,QWORD PTR [rbx+0x10]
   0x00007ffff7c8b409 <+345>:   sub    rbp,rsi
   0x00007ffff7c8b40c <+348>:   cmp    rbp,r12
   0x00007ffff7c8b40f <+351>:   jb     0x7ffff7c8b314 <__GI__IO_file_xsgetn+100>
   0x00007ffff7c8b415 <+357>:   nop    DWORD PTR [rax]
   0x00007ffff7c8b418 <+360>:   mov    rdi,r13
   0x00007ffff7c8b41b <+363>:   mov    rdx,r12
   0x00007ffff7c8b41e <+366>:   call   0x7ffff7c28620 <*ABS*+0xa9c10@plt>
   0x00007ffff7c8b423 <+371>:   add    QWORD PTR [rbx+0x8],r12
   0x00007ffff7c8b427 <+375>:   mov    r13,QWORD PTR [rsp]
   0x00007ffff7c8b42b <+379>:   jmp    0x7ffff7c8b448 <__GI__IO_file_xsgetn+408>
   0x00007ffff7c8b42d <+381>:   nop    DWORD PTR [rax]
   0x00007ffff7c8b430 <+384>:   mov    rdi,rbx
   0x00007ffff7c8b433 <+387>:   call   0x7ffff7c8d870 <__GI___underflow>
   0x00007ffff7c8b438 <+392>:   cmp    eax,0xffffffff
   0x00007ffff7c8b43b <+395>:   jne    0x7ffff7c8b300 <__GI__IO_file_xsgetn+80>
   0x00007ffff7c8b441 <+401>:   mov    r13,QWORD PTR [rsp]
   0x00007ffff7c8b445 <+405>:   sub    r13,r12
   0x00007ffff7c8b448 <+408>:   add    rsp,0x18
   0x00007ffff7c8b44c <+412>:   mov    rax,r13
   0x00007ffff7c8b44f <+415>:   pop    rbx
   0x00007ffff7c8b450 <+416>:   pop    rbp
   0x00007ffff7c8b451 <+417>:   pop    r12
   0x00007ffff7c8b453 <+419>:   pop    r13
   0x00007ffff7c8b455 <+421>:   pop    r14
   0x00007ffff7c8b457 <+423>:   pop    r15
   0x00007ffff7c8b459 <+425>:   ret
   0x00007ffff7c8b45a <+426>:   nop    WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8b460 <+432>:   mov    QWORD PTR [rsp+0x8],rdx
   0x00007ffff7c8b465 <+437>:   call   0x7ffff7c89ef0 <_IO_vtable_check>
   0x00007ffff7c8b46a <+442>:   mov    rdx,QWORD PTR [rsp+0x8]
   0x00007ffff7c8b46f <+447>:   mov    rsi,r13
   0x00007ffff7c8b472 <+450>:   mov    rdi,rbx
   0x00007ffff7c8b475 <+453>:   call   QWORD PTR [rbp+0x70]
   0x00007ffff7c8b478 <+456>:   test   rax,rax
   0x00007ffff7c8b47b <+459>:   jg     0x7ffff7c8b39e <__GI__IO_file_xsgetn+238>
   0x00007ffff7c8b481 <+465>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8b488 <+472>:   mov    edx,DWORD PTR [rbx]
   0x00007ffff7c8b48a <+474>:   mov    r13,QWORD PTR [rsp]
   0x00007ffff7c8b48e <+478>:   mov    ecx,edx
   0x00007ffff7c8b490 <+480>:   sub    r13,r12
   0x00007ffff7c8b493 <+483>:   or     edx,0x10
   0x00007ffff7c8b496 <+486>:   or     ecx,0x20
   0x00007ffff7c8b499 <+489>:   test   rax,rax
   0x00007ffff7c8b49c <+492>:   cmovne edx,ecx
   0x00007ffff7c8b49f <+495>:   mov    DWORD PTR [rbx],edx
   0x00007ffff7c8b4a1 <+497>:   jmp    0x7ffff7c8b448 <__GI__IO_file_xsgetn+408>
   0x00007ffff7c8b4a3 <+499>:   nop    DWORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8b4a8 <+504>:   mov    rdi,QWORD PTR [rdi+0x48]
   0x00007ffff7c8b4ac <+508>:   test   rdi,rdi
   0x00007ffff7c8b4af <+511>:   je     0x7ffff7c8b4bc <__GI__IO_file_xsgetn+524>
   0x00007ffff7c8b4b1 <+513>:   call   0x7ffff7c28370 <free@plt>
   0x00007ffff7c8b4b6 <+518>:   and    DWORD PTR [rbx],0xfffffeff
   0x00007ffff7c8b4bc <+524>:   mov    rdi,rbx
   0x00007ffff7c8b4bf <+527>:   call   0x7ffff7c8dc90 <__GI__IO_doallocbuf>
   0x00007ffff7c8b4c4 <+532>:   jmp    0x7ffff7c8b2d7 <__GI__IO_file_xsgetn+39>
End of assembler dump.

_IO_file_xsgetn函数是fread的核心，其大致流程整体是一个循环，先检查读缓冲区状态（fp->_IO_read_end - fp->_IO_read_ptr），大于0则从fp->_IO_read_ptr读取数据到目标，并更新读指针，如果读缓冲区为空则会调用__underflow函数再读取（第一次读写前_IO_file_xsgetn会先调用_IO_doallocbuf分配缓冲区）
回到调试，_IO_file_xsgetn先保存寄存器和读取字节数，这一部分就懒得放了（上面代码可以看到）,然后检查 _IO_buf_base ([rdi + 0x38]处)是否为0，为0则说明无缓冲区，调用_IO_doallocbuf分配缓冲区

1
2
3
4
5
6
7
8
9
10
11
0x7ffff7c8b2c4 <__GI__IO_file_xsgetn+20>     sub    rsp, 0x18                     RSP => 0x7fffffffdc50 (0x7fffffffdc68 - 0x18)
0x7ffff7c8b2c8 <__GI__IO_file_xsgetn+24>     cmp    qword ptr [rdi + 0x38], 0     0 - 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8b2cd <__GI__IO_file_xsgetn+29>     mov    qword ptr [rsp], rdx          [0x7fffffffdc50] <= 0x14
0x7ffff7c8b2d1 <__GI__IO_file_xsgetn+33>   ✔ je     __GI__IO_file_xsgetn+504    <__GI__IO_file_xsgetn+504>
    ↓
0x7ffff7c8b4a8 <__GI__IO_file_xsgetn+504>    mov    rdi, qword ptr [rdi + 0x48]     RDI, [0x5555555592e8] => 0
0x7ffff7c8b4ac <__GI__IO_file_xsgetn+508>    test   rdi, rdi                        0 & 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8b4af <__GI__IO_file_xsgetn+511>  ✔ je     __GI__IO_file_xsgetn+524    <__GI__IO_file_xsgetn+524>
    ↓
0x7ffff7c8b4bc <__GI__IO_file_xsgetn+524>    mov    rdi, rbx                        RDI => 0x5555555592a0 ◂— 0xfbad2484
0x7ffff7c8b4bf <__GI__IO_file_xsgetn+527>    call   _IO_doallocbuf              <_IO_doallocbuf>

_IO_doallocbuf函数还会调用vtable->_IO_file_doallocate函数（会进行安全检测），最终实现分配 _IO_buf_base ~ _IO_buf_end 之间的缓冲区（调用malloc分配堆上内存）

1
2
3
4
5
6
7
8
9
10
0x7ffff7c8dcb7 <_IO_doallocbuf+39>    mov    rbp, qword ptr [rbx + 0xd8]     RBP, [0x555555559378] => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c8dcbe <_IO_doallocbuf+46>    lea    rdx, [rip + 0x188d3b]           RDX => 0x7ffff7e16a00 (_IO_helper_jumps) ◂— 0
0x7ffff7c8dcc5 <_IO_doallocbuf+53>    lea    rax, [rip + 0x189a9c]           RAX => 0x7ffff7e17768 ◂— 0
0x7ffff7c8dccc <_IO_doallocbuf+60>    sub    rax, rdx                        RAX => 0xd68 (0x7ffff7e17768 - 0x7ffff7e16a00)
0x7ffff7c8dccf <_IO_doallocbuf+63>    mov    rcx, rbp                        RCX => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c8dcd2 <_IO_doallocbuf+66>    sub    rcx, rdx                        RCX => 0xc00 (0x7ffff7e17600 - 0x7ffff7e16a00)
0x7ffff7c8dcd5 <_IO_doallocbuf+69>    cmp    rax, rcx                        0xd68 - 0xc00     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x7ffff7c8dcd8 <_IO_doallocbuf+72>:    jbe    0x7ffff7c8dd40 <__GI__IO_doallocbuf+176>
    ↓
0x7ffff7c8dd40 <_IO_doallocbuf+176>:   call   0x7ffff7c89ef0 <_IO_vtable_check>

安全检查如上

1
2
0x7ffff7c8dcda <_IO_doallocbuf+74>     mov    rdi, rbx     RDI => 0x5555555592a0 ◂— 0xfbad2484
0x7ffff7c8dcdd <_IO_doallocbuf+77>     call   qword ptr [rbp + 0x68]      <_IO_file_doallocate>

具体代码就不放了，其还会调用_IO_file_stat函数再调用fstat64函数来保存文件状态，然后调用_IO_setb函数来设置fp->_IO_buf_base = buf，fp->_IO_buf_end = ebuf，并设置 _IO_save_base, _IO_backup_base ,fp->_IO_save_end指针为0
我们看最后_IO_doallocbuf结束后结构体的状态

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$5 = {
  file = {
    _flags = -72539004,
    _IO_read_ptr = 0x0,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x5555555594b0 "",
    _IO_buf_end = 0x55555555a4b0 "",
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = 0,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

可以看到_IO_buf_base以及_IO_buf_end已经被正确设置了
我们再查看堆，发现确实分配了0x1000大小的缓冲区

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
pwndbg> heap
Allocated chunk | PREV_INUSE
Addr: 0x555555559000
Size: 0x290 (with flag bits: 0x291)

Allocated chunk | PREV_INUSE
Addr: 0x555555559290
Size: 0x1e0 (with flag bits: 0x1e1)

Allocated chunk | PREV_INUSE
Addr: 0x555555559470
Size: 0x30 (with flag bits: 0x31)

Allocated chunk | PREV_INUSE
Addr: 0x5555555594a0
Size: 0x1010 (with flag bits: 0x1011)

Top chunk | PREV_INUSE
Addr: 0x55555555a4b0
Size: 0x1fb50 (with flag bits: 0x1fb51)

之后_IO_file_xsgetn检查读缓冲区，发现fp->_IO_read_ptr== fp->_IO_read_end，读缓冲区为空，则调用__underflow函数

1
2
0x7ffff7c8b430 <__GI__IO_file_xsgetn+384>    mov    rdi, rbx     RDI => 0x5555555592a0 ◂— 0xfbad2484
0x7ffff7c8b433 <__GI__IO_file_xsgetn+387>    call   __underflow                 <__underflow>

而__underflow函数正是调用了vtable->_IO_file_underflow函数（[_IO_file_jumps+32]便是）

1
2
3
4
5
6
0x7ffff7c8d8f1 <__underflow+129>          mov    rax, qword ptr [rbx + 0x20]     RAX, [_IO_file_jumps+32] => 0x7ffff7c8cab0 (_IO_file_underflow) ◂— endbr64
0x7ffff7c8d8f5 <__underflow+133>          add    rsp, 8                          RSP => 0x7fffffffdc38 (0x7fffffffdc30 + 0x8)
0x7ffff7c8d8f9 <__underflow+137>          mov    rdi, rbp                        RDI => 0x5555555592a0 ◂— 0xfbad2484
0x7ffff7c8d8fc <__underflow+140>          pop    rbx                             RBX => 0x5555555592a0
0x7ffff7c8d8fd <__underflow+141>          pop    rbp                             RBP => 0
0x7ffff7c8d8fe <__underflow+142>          jmp    rax                         <_IO_file_underflow>

放上vtable->_IO_file_underflow的汇编

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
pwndbg> disass
Dump of assembler code for function _IO_new_file_underflow:
Address range 0x7ffff7c8cab0 to 0x7ffff7c8cdb9:
=> 0x00007ffff7c8cab0 <+0>:     endbr64
   0x00007ffff7c8cab4 <+4>:     mov    eax,DWORD PTR [rdi]
   0x00007ffff7c8cab6 <+6>:     test   al,0x10
   0x00007ffff7c8cab8 <+8>:     jne    0x7ffff7c8cd88 <_IO_new_file_underflow+728>
   0x00007ffff7c8cabe <+14>:    push   r15
   0x00007ffff7c8cac0 <+16>:    push   r14
   0x00007ffff7c8cac2 <+18>:    push   r13
   0x00007ffff7c8cac4 <+20>:    push   r12
   0x00007ffff7c8cac6 <+22>:    push   rbp
   0x00007ffff7c8cac7 <+23>:    push   rbx
   0x00007ffff7c8cac8 <+24>:    mov    rbx,rdi
   0x00007ffff7c8cacb <+27>:    sub    rsp,0x18
   0x00007ffff7c8cacf <+31>:    test   al,0x4
   0x00007ffff7c8cad1 <+33>:    jne    0x7ffff7c8cd90 <_IO_new_file_underflow+736>
   0x00007ffff7c8cad7 <+39>:    mov    rdx,QWORD PTR [rdi+0x8]
   0x00007ffff7c8cadb <+43>:    cmp    rdx,QWORD PTR [rdi+0x10]
   0x00007ffff7c8cadf <+47>:    jb     0x7ffff7c8cc70 <_IO_new_file_underflow+448>
   0x00007ffff7c8cae5 <+53>:    cmp    QWORD PTR [rdi+0x38],0x0
   0x00007ffff7c8caea <+58>:    je     0x7ffff7c8ccc0 <_IO_new_file_underflow+528>
   0x00007ffff7c8caf0 <+64>:    test   eax,0x202
   0x00007ffff7c8caf5 <+69>:    je     0x7ffff7c8cbd2 <_IO_new_file_underflow+290>
   0x00007ffff7c8cafb <+75>:    mov    rax,QWORD PTR [rip+0x18d336]        # 0x7ffff7e19e38
   0x00007ffff7c8cb02 <+82>:    mov    r12,QWORD PTR [rax]
   0x00007ffff7c8cb05 <+85>:    mov    edx,DWORD PTR [r12]
   0x00007ffff7c8cb09 <+89>:    mov    eax,edx
   0x00007ffff7c8cb0b <+91>:    and    eax,0x8000
   0x00007ffff7c8cb10 <+96>:    jne    0x7ffff7c8cbc0 <_IO_new_file_underflow+272>
   0x00007ffff7c8cb16 <+102>:   mov    rdi,QWORD PTR [r12+0x88]
   0x00007ffff7c8cb1e <+110>:   mov    rbp,QWORD PTR fs:0x10
   0x00007ffff7c8cb27 <+119>:   cmp    QWORD PTR [rdi+0x8],rbp
   0x00007ffff7c8cb2b <+123>:   je     0x7ffff7c8ccf0 <_IO_new_file_underflow+576>
   0x00007ffff7c8cb31 <+129>:   mov    edx,0x1
   0x00007ffff7c8cb36 <+134>:   lock cmpxchg DWORD PTR [rdi],edx
   0x00007ffff7c8cb3a <+138>:   jne    0x7ffff7c8cd78 <_IO_new_file_underflow+712>
   0x00007ffff7c8cb40 <+144>:   mov    rax,QWORD PTR [rip+0x18d2f1]        # 0x7ffff7e19e38
   0x00007ffff7c8cb47 <+151>:   mov    rdi,QWORD PTR [r12+0x88]
   0x00007ffff7c8cb4f <+159>:   mov    r8,QWORD PTR [rax]
   0x00007ffff7c8cb52 <+162>:   mov    QWORD PTR [rdi+0x8],rbp
   0x00007ffff7c8cb56 <+166>:   mov    edx,DWORD PTR [r8]
   0x00007ffff7c8cb59 <+169>:   and    edx,0x288
   0x00007ffff7c8cb5f <+175>:   add    DWORD PTR [rdi+0x4],0x1
   0x00007ffff7c8cb63 <+179>:   cmp    edx,0x280
   0x00007ffff7c8cb69 <+185>:   je     0x7ffff7c8cd03 <_IO_new_file_underflow+595>
   0x00007ffff7c8cb6f <+191>:   lea    r15,[rip+0x18abf2]        # 0x7ffff7e17768
   0x00007ffff7c8cb76 <+198>:   lea    rbp,[rip+0x189e83]        # 0x7ffff7e16a00 <_IO_helper_jumps>
   0x00007ffff7c8cb7d <+205>:   mov    r13,r15
   0x00007ffff7c8cb80 <+208>:   mov    r14,rbp
   0x00007ffff7c8cb83 <+211>:   sub    r13,rbp
   0x00007ffff7c8cb86 <+214>:   test   DWORD PTR [r12],0x8000
   0x00007ffff7c8cb8e <+222>:   jne    0x7ffff7c8cbe0 <_IO_new_file_underflow+304>
   0x00007ffff7c8cb90 <+224>:   mov    rdi,QWORD PTR [r12+0x88]
   0x00007ffff7c8cb98 <+232>:   mov    eax,DWORD PTR [rdi+0x4]
   0x00007ffff7c8cb9b <+235>:   sub    eax,0x1
   0x00007ffff7c8cb9e <+238>:   mov    DWORD PTR [rdi+0x4],eax
   0x00007ffff7c8cba1 <+241>:   jne    0x7ffff7c8cbe0 <_IO_new_file_underflow+304>
   0x00007ffff7c8cba3 <+243>:   mov    QWORD PTR [rdi+0x8],0x0
   0x00007ffff7c8cbab <+251>:   xchg   DWORD PTR [rdi],eax
   0x00007ffff7c8cbad <+253>:   cmp    eax,0x1
   0x00007ffff7c8cbb0 <+256>:   jle    0x7ffff7c8cbe0 <_IO_new_file_underflow+304>
   0x00007ffff7c8cbb2 <+258>:   call   0x7ffff7c91300 <__GI___lll_lock_wake_private>
   0x00007ffff7c8cbb7 <+263>:   jmp    0x7ffff7c8cbed <_IO_new_file_underflow+317>
   0x00007ffff7c8cbb9 <+265>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8cbc0 <+272>:   and    edx,0x288
   0x00007ffff7c8cbc6 <+278>:   cmp    edx,0x280
   0x00007ffff7c8cbcc <+284>:   je     0x7ffff7c8cd00 <_IO_new_file_underflow+592>
   0x00007ffff7c8cbd2 <+290>:   lea    r15,[rip+0x18ab8f]        # 0x7ffff7e17768
   0x00007ffff7c8cbd9 <+297>:   lea    rbp,[rip+0x189e20]        # 0x7ffff7e16a00 <_IO_helper_jumps>
   0x00007ffff7c8cbe0 <+304>:   sub    r15,rbp
   0x00007ffff7c8cbe3 <+307>:   lea    r14,[rip+0x189e16]        # 0x7ffff7e16a00 <_IO_helper_jumps>
   0x00007ffff7c8cbea <+314>:   mov    r13,r15
   0x00007ffff7c8cbed <+317>:   mov    rdi,rbx
   0x00007ffff7c8cbf0 <+320>:   call   0x7ffff7c8d720 <__GI__IO_switch_to_get_mode>
   0x00007ffff7c8cbf5 <+325>:   movdqu xmm0,XMMWORD PTR [rbx+0x38]
   0x00007ffff7c8cbfa <+330>:   mov    rbp,QWORD PTR [rbx+0xd8]
   0x00007ffff7c8cc01 <+337>:   movdqa xmm1,xmm0
   0x00007ffff7c8cc05 <+341>:   mov    rax,rbp
   0x00007ffff7c8cc08 <+344>:   movq   rsi,xmm0
   0x00007ffff7c8cc0d <+349>:   punpcklqdq xmm1,xmm0
   0x00007ffff7c8cc11 <+353>:   sub    rax,r14
   0x00007ffff7c8cc14 <+356>:   movups XMMWORD PTR [rbx+0x8],xmm1
   0x00007ffff7c8cc18 <+360>:   movups XMMWORD PTR [rbx+0x18],xmm1
   0x00007ffff7c8cc1c <+364>:   movups XMMWORD PTR [rbx+0x28],xmm1
   0x00007ffff7c8cc20 <+368>:   cmp    rax,r13
   0x00007ffff7c8cc23 <+371>:   jae    0x7ffff7c8cd48 <_IO_new_file_underflow+664>
   0x00007ffff7c8cc29 <+377>:   mov    rdx,QWORD PTR [rbx+0x40]
   0x00007ffff7c8cc2d <+381>:   mov    rdi,rbx
   0x00007ffff7c8cc30 <+384>:   sub    rdx,rsi
   0x00007ffff7c8cc33 <+387>:   call   QWORD PTR [rbp+0x70]
   0x00007ffff7c8cc36 <+390>:   test   rax,rax
   0x00007ffff7c8cc39 <+393>:   jle    0x7ffff7c8cc88 <_IO_new_file_underflow+472>
   0x00007ffff7c8cc3b <+395>:   mov    rdx,QWORD PTR [rbx+0x90]
   0x00007ffff7c8cc42 <+402>:   add    QWORD PTR [rbx+0x10],rax
   0x00007ffff7c8cc46 <+406>:   cmp    rdx,0xffffffffffffffff
   0x00007ffff7c8cc4a <+410>:   je     0x7ffff7c8cc56 <_IO_new_file_underflow+422>
   0x00007ffff7c8cc4c <+412>:   add    rdx,rax
   0x00007ffff7c8cc4f <+415>:   mov    QWORD PTR [rbx+0x90],rdx
   0x00007ffff7c8cc56 <+422>:   mov    rax,QWORD PTR [rbx+0x8]
   0x00007ffff7c8cc5a <+426>:   movzx  eax,BYTE PTR [rax]
   0x00007ffff7c8cc5d <+429>:   add    rsp,0x18
   0x00007ffff7c8cc61 <+433>:   pop    rbx
   0x00007ffff7c8cc62 <+434>:   pop    rbp
   0x00007ffff7c8cc63 <+435>:   pop    r12
   0x00007ffff7c8cc65 <+437>:   pop    r13
   0x00007ffff7c8cc67 <+439>:   pop    r14
   0x00007ffff7c8cc69 <+441>:   pop    r15
   0x00007ffff7c8cc6b <+443>:   ret
   0x00007ffff7c8cc6c <+444>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8cc70 <+448>:   movzx  eax,BYTE PTR [rdx]
   0x00007ffff7c8cc73 <+451>:   add    rsp,0x18
   0x00007ffff7c8cc77 <+455>:   pop    rbx
   0x00007ffff7c8cc78 <+456>:   pop    rbp
   0x00007ffff7c8cc79 <+457>:   pop    r12
   0x00007ffff7c8cc7b <+459>:   pop    r13
   0x00007ffff7c8cc7d <+461>:   pop    r14
   0x00007ffff7c8cc7f <+463>:   pop    r15
   0x00007ffff7c8cc81 <+465>:   ret
   0x00007ffff7c8cc82 <+466>:   nop    WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8cc88 <+472>:   mov    QWORD PTR [rbx+0x90],0xffffffffffffffff
   0x00007ffff7c8cc93 <+483>:   mov    edx,DWORD PTR [rbx]
   0x00007ffff7c8cc95 <+485>:   mov    ecx,edx
   0x00007ffff7c8cc97 <+487>:   or     edx,0x20
   0x00007ffff7c8cc9a <+490>:   or     ecx,0x10
   0x00007ffff7c8cc9d <+493>:   test   rax,rax
   0x00007ffff7c8cca0 <+496>:   mov    eax,0xffffffff
   0x00007ffff7c8cca5 <+501>:   cmove  edx,ecx
   0x00007ffff7c8cca8 <+504>:   mov    DWORD PTR [rbx],edx
   0x00007ffff7c8ccaa <+506>:   add    rsp,0x18
   0x00007ffff7c8ccae <+510>:   pop    rbx
   0x00007ffff7c8ccaf <+511>:   pop    rbp
   0x00007ffff7c8ccb0 <+512>:   pop    r12
   0x00007ffff7c8ccb2 <+514>:   pop    r13
   0x00007ffff7c8ccb4 <+516>:   pop    r14
   0x00007ffff7c8ccb6 <+518>:   pop    r15
   0x00007ffff7c8ccb8 <+520>:   ret
   0x00007ffff7c8ccb9 <+521>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8ccc0 <+528>:   mov    rdi,QWORD PTR [rdi+0x48]
   0x00007ffff7c8ccc4 <+532>:   test   rdi,rdi
   0x00007ffff7c8ccc7 <+535>:   je     0x7ffff7c8ccd4 <_IO_new_file_underflow+548>
   0x00007ffff7c8ccc9 <+537>:   call   0x7ffff7c28370 <free@plt>
   0x00007ffff7c8ccce <+542>:   and    DWORD PTR [rbx],0xfffffeff
   0x00007ffff7c8ccd4 <+548>:   mov    rdi,rbx
   0x00007ffff7c8ccd7 <+551>:   call   0x7ffff7c8dc90 <__GI__IO_doallocbuf>
   0x00007ffff7c8ccdc <+556>:   mov    eax,DWORD PTR [rbx]
   0x00007ffff7c8ccde <+558>:   test   eax,0x202
   0x00007ffff7c8cce3 <+563>:   jne    0x7ffff7c8cafb <_IO_new_file_underflow+75>
   0x00007ffff7c8cce9 <+569>:   jmp    0x7ffff7c8cbd2 <_IO_new_file_underflow+290>
   0x00007ffff7c8ccee <+574>:   xchg   ax,ax
   0x00007ffff7c8ccf0 <+576>:   mov    r8,r12
   0x00007ffff7c8ccf3 <+579>:   jmp    0x7ffff7c8cb59 <_IO_new_file_underflow+169>
   0x00007ffff7c8ccf8 <+584>:   nop    DWORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8cd00 <+592>:   mov    r8,r12
   0x00007ffff7c8cd03 <+595>:   mov    rax,QWORD PTR [r8+0xd8]
   0x00007ffff7c8cd0a <+602>:   lea    r15,[rip+0x18aa57]        # 0x7ffff7e17768
   0x00007ffff7c8cd11 <+609>:   lea    rbp,[rip+0x189ce8]        # 0x7ffff7e16a00 <_IO_helper_jumps>
   0x00007ffff7c8cd18 <+616>:   mov    r13,r15
   0x00007ffff7c8cd1b <+619>:   mov    r14,rbp
   0x00007ffff7c8cd1e <+622>:   mov    QWORD PTR [rsp+0x8],rax
   0x00007ffff7c8cd23 <+627>:   sub    r13,rbp
   0x00007ffff7c8cd26 <+630>:   sub    rax,rbp
   0x00007ffff7c8cd29 <+633>:   cmp    r13,rax
   0x00007ffff7c8cd2c <+636>:   jbe    0x7ffff7c8cd60 <_IO_new_file_underflow+688>
   0x00007ffff7c8cd2e <+638>:   mov    rax,QWORD PTR [rsp+0x8]
   0x00007ffff7c8cd33 <+643>:   mov    esi,0xffffffff
   0x00007ffff7c8cd38 <+648>:   mov    rdi,r8
   0x00007ffff7c8cd3b <+651>:   call   QWORD PTR [rax+0x18]
   0x00007ffff7c8cd3e <+654>:   jmp    0x7ffff7c8cb86 <_IO_new_file_underflow+214>
   0x00007ffff7c8cd43 <+659>:   nop    DWORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8cd48 <+664>:   call   0x7ffff7c89ef0 <_IO_vtable_check>
   0x00007ffff7c8cd4d <+669>:   mov    rsi,QWORD PTR [rbx+0x38]
   0x00007ffff7c8cd51 <+673>:   jmp    0x7ffff7c8cc29 <_IO_new_file_underflow+377>
   0x00007ffff7c8cd56 <+678>:   cs nop WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8cd60 <+688>:   call   0x7ffff7c89ef0 <_IO_vtable_check>
   0x00007ffff7c8cd65 <+693>:   mov    rax,QWORD PTR [rip+0x18d0cc]        # 0x7ffff7e19e38
   0x00007ffff7c8cd6c <+700>:   mov    r8,QWORD PTR [rax]
   0x00007ffff7c8cd6f <+703>:   jmp    0x7ffff7c8cd2e <_IO_new_file_underflow+638>
   0x00007ffff7c8cd71 <+705>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8cd78 <+712>:   call   0x7ffff7c91230 <__GI___lll_lock_wait_private>
   0x00007ffff7c8cd7d <+717>:   jmp    0x7ffff7c8cb40 <_IO_new_file_underflow+144>
   0x00007ffff7c8cd82 <+722>:   nop    WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8cd88 <+728>:   mov    eax,0xffffffff
   0x00007ffff7c8cd8d <+733>:   ret
   0x00007ffff7c8cd8e <+734>:   xchg   ax,ax
   0x00007ffff7c8cd90 <+736>:   or     eax,0x20
   0x00007ffff7c8cd93 <+739>:   mov    DWORD PTR [rdi],eax
   0x00007ffff7c8cd95 <+741>:   mov    rax,QWORD PTR [rip+0x18d074]        # 0x7ffff7e19e10
   0x00007ffff7c8cd9c <+748>:   mov    DWORD PTR fs:[rax],0x9
   0x00007ffff7c8cda3 <+755>:   mov    eax,0xffffffff
   0x00007ffff7c8cda8 <+760>:   jmp    0x7ffff7c8cc5d <_IO_new_file_underflow+429>
   0x00007ffff7c8cdad <+765>:   endbr64
   0x00007ffff7c8cdb1 <+769>:   mov    rbp,rax
   0x00007ffff7c8cdb4 <+772>:   jmp    0x7ffff7c2984e <_IO_new_file_underflow.cold>
Address range 0x7ffff7c2984e to 0x7ffff7c29887:
   0x00007ffff7c2984e <-406114>:        test   DWORD PTR [r12],0x8000
   0x00007ffff7c29856 <-406106>:        jne    0x7ffff7c2987f <_IO_new_file_underflow-406065>
   0x00007ffff7c29858 <-406104>:        mov    rdi,QWORD PTR [r12+0x88]
   0x00007ffff7c29860 <-406096>:        mov    eax,DWORD PTR [rdi+0x4]
   0x00007ffff7c29863 <-406093>:        sub    eax,0x1
   0x00007ffff7c29866 <-406090>:        mov    DWORD PTR [rdi+0x4],eax
   0x00007ffff7c29869 <-406087>:        jne    0x7ffff7c2987f <_IO_new_file_underflow-406065>
   0x00007ffff7c2986b <-406085>:        mov    QWORD PTR [rdi+0x8],0x0
   0x00007ffff7c29873 <-406077>:        xchg   DWORD PTR [rdi],eax
   0x00007ffff7c29875 <-406075>:        sub    eax,0x1
   0x00007ffff7c29878 <-406072>:        jle    0x7ffff7c2987f <_IO_new_file_underflow-406065>
   0x00007ffff7c2987a <-406070>:        call   0x7ffff7c91300 <__GI___lll_lock_wake_private>
   0x00007ffff7c2987f <-406065>:        mov    rdi,rbp
   0x00007ffff7c29882 <-406062>:        call   0x7ffff7c2a120 <_Unwind_Resume>
End of assembler dump.

vtable->_IO_file_underflow函数主体是先检查缓冲区，如果fp->_IO_buf_base == NULL则调用_IO_doallocbuf来分配缓冲区，然后系统调用read读取数据到缓冲区，然后根据需要读取的数据调整读写指针
发现这里_IO_file_underflow还会调用_IO_switch_to_get_mode 函数来切换文件模式为读（_mode=-1）并清空对应指针防止干扰

1
2
0x7ffff7c8cbed <_IO_file_underflow+317>    mov    rdi, rbx                  RDI => 0x5555555592a0 ◂— 0xfbad2488
0x7ffff7c8cbf0 <_IO_file_underflow+320>    call   _IO_switch_to_get_mode      <_IO_switch_to_get_mode>

后续回到_IO_file_underflow函数，设置读写指针，如下所示，都设置为了fp->_IO_buf_base

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$3 = {
  file = {
    _flags = -72539000,
    _IO_read_ptr = 0x5555555594b0 "",
    _IO_read_end = 0x5555555594b0 "",
    _IO_read_base = 0x5555555594b0 "",
    _IO_write_base = 0x5555555594b0 "",
    _IO_write_ptr = 0x5555555594b0 "",
    _IO_write_end = 0x5555555594b0 "",
    _IO_buf_base = 0x5555555594b0 "",
    _IO_buf_end = 0x55555555a4b0 "",
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = -1,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

然后_IO_file_underflow调用vtable->_IO_file_read（位于_IO_file_jumps+0x70）

1
2
3
4
0x7ffff7c8cc29 <_IO_file_underflow+377>    mov    rdx, qword ptr [rbx + 0x40]        RDX, [0x5555555592e0] => 0x55555555a4b0 ◂— 0
0x7ffff7c8cc2d <_IO_file_underflow+381>    mov    rdi, rbx                           RDI => 0x5555555592a0 ◂— 0xfbad2488
0x7ffff7c8cc30 <_IO_file_underflow+384>    sub    rdx, rsi                           RDX => 0x1000 (0x55555555a4b0 - 0x5555555594b0)
0x7ffff7c8cc33 <_IO_file_underflow+387>    call   qword ptr [rbp + 0x70]      <_IO_file_read>

然后再系统调用read函数，将文件数据读入fp->_IO_buf_base（最多读0x1000，即_IO_buf_end - _IO_buf_base）

1
2
3
4
5
6
7
8
9
10
11
12
0x7ffff7c8b93c <_IO_file_read+12>    mov    edi, r8d                        EDI => 3
0x7ffff7c8b93f <_IO_file_read+15>  ✘ jne    _IO_file_read+32            <_IO_file_read+32>

0x7ffff7c8b941 <_IO_file_read+17>    jmp    read                        <read>
    ↓
0x7ffff7d147d0 <read>                endbr64
0x7ffff7d147d4 <read+4>              mov    eax, dword ptr fs:[0x18]     EAX, [0x7ffff7fb1758] => 0
0x7ffff7d147dc <read+12>             test   eax, eax                     0 & 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7d147de <read+14>           ✘ jne    read+32                     <read+32>

0x7ffff7d147e0 <read+16>             syscall  <SYS_read>
───────────────────────────────────────────────────────────

可以看到缓冲区读入的’a’

1
2
3
4
5
6
pwndbg> x/10gx 0x5555555594a0
0x5555555594a0: 0x0000000000000000      0x0000000000001011
0x5555555594b0: 0x6161616161616161      0x6161616161616161
0x5555555594c0: 0x6161616161616161      0x6161616161616161
0x5555555594d0: 0x6161616161616161      0x6161616161616161
0x5555555594e0: 0x00000a6161616161      0x0000000000000000

最后_IO_file_underflow执行完毕，结构体状态如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$3 = {
  file = {
    _flags = -72539000,
    _IO_read_ptr = 0x5555555594b0 'a' <repeats 53 times>, "\n",
    _IO_read_end = 0x5555555594e6 "",
    _IO_read_base = 0x5555555594b0 'a' <repeats 53 times>, "\n",
    _IO_write_base = 0x5555555594b0 'a' <repeats 53 times>, "\n",
    _IO_write_ptr = 0x5555555594b0 'a' <repeats 53 times>, "\n",
    _IO_write_end = 0x5555555594b0 'a' <repeats 53 times>, "\n",
    _IO_buf_base = 0x5555555594b0 'a' <repeats 53 times>, "\n",
    _IO_buf_end = 0x55555555a4b0 "",
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = -1,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

_IO_read_end已调整至读缓冲区结束位置
然后回到_IO_file_xsgetn的循环，将缓冲区中的数据读入目标地址，可以粗略看做

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
while (n > 0)
  {
    size_t avail = fp->_IO_read_end - fp->_IO_read_ptr;
    if (avail > 0)
    {
      size_t to_copy = MIN(avail, n);
      memcpy(s, fp->_IO_read_ptr, to_copy);
      fp->_IO_read_ptr += to_copy;
      s += to_copy;
      n -= to_copy;
      already += to_copy;
    }
    else
    {
      // 缓冲区已空，调用 refill 函数
      if (__underflow(fp) == EOF)
        break;
    }
  }

最后fread结束后可以看到数据（20个’a’）已经读入我们的目标地址

1
2
3
4
pwndbg> x/6gx 0x555555559470
0x555555559470: 0x00007ffff7e170c0      0x0000000000000031
0x555555559480: 0x6161616161616161      0x6161616161616161
0x555555559490: 0x0000000061616161      0x0000000000000000

0x04 fwrite函数

还是同一个demo，改成fwrite函数即可，其实fwrite的流程和fread是很类似的

1
2
3
4
5
6
7
8
9
10
11
#include<stdio.h>
#include<stdlib.h>

int main(){

    FILE*fp = fopen("test.txt","wb");
    char *ptr = malloc(0x20);
    memcpy(ptr,"wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww",0x20);
    fwrite(ptr, 1, 0x20, fp);
    return 0;
}

在fwrite下个断点，发现是_IO_fwrite函数，贴上汇编

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
pwndbg> disass
Dump of assembler code for function __GI__IO_fwrite:
Address range 0x7ffff7c7ff20 to 0x7ffff7c800a6:
=> 0x00007ffff7c7ff20 <+0>:     endbr64
   0x00007ffff7c7ff24 <+4>:     push   r15
   0x00007ffff7c7ff26 <+6>:     push   r14
   0x00007ffff7c7ff28 <+8>:     push   r13
   0x00007ffff7c7ff2a <+10>:    push   r12
   0x00007ffff7c7ff2c <+12>:    mov    r12,rsi
   0x00007ffff7c7ff2f <+15>:    push   rbp
   0x00007ffff7c7ff30 <+16>:    imul   r12,rdx
   0x00007ffff7c7ff34 <+20>:    push   rbx
   0x00007ffff7c7ff35 <+21>:    sub    rsp,0x8
   0x00007ffff7c7ff39 <+25>:    test   r12,r12
   0x00007ffff7c7ff3c <+28>:    je     0x7ffff7c80015 <__GI__IO_fwrite+245>
   0x00007ffff7c7ff42 <+34>:    mov    eax,DWORD PTR [rcx]
   0x00007ffff7c7ff44 <+36>:    mov    r14,rdi
   0x00007ffff7c7ff47 <+39>:    mov    r13,rsi
   0x00007ffff7c7ff4a <+42>:    mov    rbp,rdx
   0x00007ffff7c7ff4d <+45>:    mov    rbx,rcx
   0x00007ffff7c7ff50 <+48>:    and    eax,0x8000
   0x00007ffff7c7ff55 <+53>:    jne    0x7ffff7c7ff8b <__GI__IO_fwrite+107>
   0x00007ffff7c7ff57 <+55>:    mov    r15,QWORD PTR fs:0x10
   0x00007ffff7c7ff60 <+64>:    mov    rdi,QWORD PTR [rcx+0x88]
   0x00007ffff7c7ff67 <+71>:    cmp    QWORD PTR [rdi+0x8],r15
   0x00007ffff7c7ff6b <+75>:    je     0x7ffff7c7ff87 <__GI__IO_fwrite+103>
   0x00007ffff7c7ff6d <+77>:    mov    edx,0x1
   0x00007ffff7c7ff72 <+82>:    lock cmpxchg DWORD PTR [rdi],edx
   0x00007ffff7c7ff76 <+86>:    jne    0x7ffff7c80090 <__GI__IO_fwrite+368>
   0x00007ffff7c7ff7c <+92>:    mov    rdi,QWORD PTR [rbx+0x88]
   0x00007ffff7c7ff83 <+99>:    mov    QWORD PTR [rdi+0x8],r15
   0x00007ffff7c7ff87 <+103>:   add    DWORD PTR [rdi+0x4],0x1
   0x00007ffff7c7ff8b <+107>:   mov    eax,DWORD PTR [rbx+0xc0]
   0x00007ffff7c7ff91 <+113>:   test   eax,eax
   0x00007ffff7c7ff93 <+115>:   jne    0x7ffff7c80030 <__GI__IO_fwrite+272>
   0x00007ffff7c7ff99 <+121>:   mov    DWORD PTR [rbx+0xc0],0xffffffff
   0x00007ffff7c7ffa3 <+131>:   mov    r15,QWORD PTR [rbx+0xd8]
   0x00007ffff7c7ffaa <+138>:   lea    rdx,[rip+0x196a4f]        # 0x7ffff7e16a00 <_IO_helper_jumps>
   0x00007ffff7c7ffb1 <+145>:   lea    rax,[rip+0x1977b0]        # 0x7ffff7e17768
   0x00007ffff7c7ffb8 <+152>:   sub    rax,rdx
   0x00007ffff7c7ffbb <+155>:   mov    rcx,r15
   0x00007ffff7c7ffbe <+158>:   sub    rcx,rdx
   0x00007ffff7c7ffc1 <+161>:   cmp    rax,rcx
   0x00007ffff7c7ffc4 <+164>:   jbe    0x7ffff7c80080 <__GI__IO_fwrite+352>
   0x00007ffff7c7ffca <+170>:   mov    rdx,r12
   0x00007ffff7c7ffcd <+173>:   mov    rsi,r14
   0x00007ffff7c7ffd0 <+176>:   mov    rdi,rbx
   0x00007ffff7c7ffd3 <+179>:   call   QWORD PTR [r15+0x38]
   0x00007ffff7c7ffd7 <+183>:   cmp    rax,0xffffffffffffffff
   0x00007ffff7c7ffdb <+187>:   mov    r14,rax
   0x00007ffff7c7ffde <+190>:   sete   r15b
   0x00007ffff7c7ffe2 <+194>:   test   DWORD PTR [rbx],0x8000
   0x00007ffff7c7ffe8 <+200>:   jne    0x7ffff7c80008 <__GI__IO_fwrite+232>
   0x00007ffff7c7ffea <+202>:   mov    rdi,QWORD PTR [rbx+0x88]
   0x00007ffff7c7fff1 <+209>:   sub    DWORD PTR [rdi+0x4],0x1
   0x00007ffff7c7fff5 <+213>:   jne    0x7ffff7c80008 <__GI__IO_fwrite+232>
   0x00007ffff7c7fff7 <+215>:   mov    QWORD PTR [rdi+0x8],0x0
   0x00007ffff7c7ffff <+223>:   xor    eax,eax
   0x00007ffff7c80001 <+225>:   xchg   DWORD PTR [rdi],eax
   0x00007ffff7c80003 <+227>:   cmp    eax,0x1
   0x00007ffff7c80006 <+230>:   jg     0x7ffff7c80068 <__GI__IO_fwrite+328>
   0x00007ffff7c80008 <+232>:   cmp    r12,r14
   0x00007ffff7c8000b <+235>:   je     0x7ffff7c80012 <__GI__IO_fwrite+242>
   0x00007ffff7c8000d <+237>:   test   r15b,r15b
   0x00007ffff7c80010 <+240>:   je     0x7ffff7c8006f <__GI__IO_fwrite+335>
   0x00007ffff7c80012 <+242>:   mov    r12,rbp
   0x00007ffff7c80015 <+245>:   add    rsp,0x8
   0x00007ffff7c80019 <+249>:   mov    rax,r12
   0x00007ffff7c8001c <+252>:   pop    rbx
   0x00007ffff7c8001d <+253>:   pop    rbp
   0x00007ffff7c8001e <+254>:   pop    r12
   0x00007ffff7c80020 <+256>:   pop    r13
   0x00007ffff7c80022 <+258>:   pop    r14
   0x00007ffff7c80024 <+260>:   pop    r15
   0x00007ffff7c80026 <+262>:   ret
   0x00007ffff7c80027 <+263>:   nop    WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c80030 <+272>:   cmp    eax,0xffffffff
   0x00007ffff7c80033 <+275>:   je     0x7ffff7c7ffa3 <__GI__IO_fwrite+131>
   0x00007ffff7c80039 <+281>:   test   DWORD PTR [rbx],0x8000
   0x00007ffff7c8003f <+287>:   jne    0x7ffff7c80060 <__GI__IO_fwrite+320>
   0x00007ffff7c80041 <+289>:   mov    rdi,QWORD PTR [rbx+0x88]
   0x00007ffff7c80048 <+296>:   sub    DWORD PTR [rdi+0x4],0x1
   0x00007ffff7c8004c <+300>:   jne    0x7ffff7c80060 <__GI__IO_fwrite+320>
   0x00007ffff7c8004e <+302>:   xor    r15d,r15d
   0x00007ffff7c80051 <+305>:   xor    r14d,r14d
   0x00007ffff7c80054 <+308>:   jmp    0x7ffff7c7fff7 <__GI__IO_fwrite+215>
   0x00007ffff7c80056 <+310>:   cs nop WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c80060 <+320>:   xor    r12d,r12d
   0x00007ffff7c80063 <+323>:   jmp    0x7ffff7c80015 <__GI__IO_fwrite+245>
   0x00007ffff7c80065 <+325>:   nop    DWORD PTR [rax]
   0x00007ffff7c80068 <+328>:   call   0x7ffff7c91300 <__GI___lll_lock_wake_private>
   0x00007ffff7c8006d <+333>:   jmp    0x7ffff7c80008 <__GI__IO_fwrite+232>
   0x00007ffff7c8006f <+335>:   mov    rax,r14
   0x00007ffff7c80072 <+338>:   xor    edx,edx
   0x00007ffff7c80074 <+340>:   div    r13
   0x00007ffff7c80077 <+343>:   mov    r12,rax
   0x00007ffff7c8007a <+346>:   jmp    0x7ffff7c80015 <__GI__IO_fwrite+245>
   0x00007ffff7c8007c <+348>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c80080 <+352>:   call   0x7ffff7c89ef0 <_IO_vtable_check>
   0x00007ffff7c80085 <+357>:   jmp    0x7ffff7c7ffca <__GI__IO_fwrite+170>
   0x00007ffff7c8008a <+362>:   nop    WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c80090 <+368>:   call   0x7ffff7c91230 <__GI___lll_lock_wait_private>
   0x00007ffff7c80095 <+373>:   jmp    0x7ffff7c7ff7c <__GI__IO_fwrite+92>
   0x00007ffff7c8009a <+378>:   endbr64
   0x00007ffff7c8009e <+382>:   mov    rbp,rax
   0x00007ffff7c800a1 <+385>:   jmp    0x7ffff7c291b1 <__GI__IO_fwrite.cold>
Address range 0x7ffff7c291b1 to 0x7ffff7c291e7:
   0x00007ffff7c291b1 <-355695>:        test   DWORD PTR [rbx],0x8000
   0x00007ffff7c291b7 <-355689>:        jne    0x7ffff7c291df <__GI__IO_fwrite-355649>
   0x00007ffff7c291b9 <-355687>:        mov    rdi,QWORD PTR [rbx+0x88]
   0x00007ffff7c291c0 <-355680>:        mov    eax,DWORD PTR [rdi+0x4]
   0x00007ffff7c291c3 <-355677>:        sub    eax,0x1
   0x00007ffff7c291c6 <-355674>:        mov    DWORD PTR [rdi+0x4],eax
   0x00007ffff7c291c9 <-355671>:        jne    0x7ffff7c291df <__GI__IO_fwrite-355649>
   0x00007ffff7c291cb <-355669>:        mov    QWORD PTR [rdi+0x8],0x0
   0x00007ffff7c291d3 <-355661>:        xchg   DWORD PTR [rdi],eax
   0x00007ffff7c291d5 <-355659>:        sub    eax,0x1
   0x00007ffff7c291d8 <-355656>:        jle    0x7ffff7c291df <__GI__IO_fwrite-355649>
   0x00007ffff7c291da <-355654>:        call   0x7ffff7c91300 <__GI___lll_lock_wake_private>
   0x00007ffff7c291df <-355649>:        mov    rdi,rbp
   0x00007ffff7c291e2 <-355646>:        call   0x7ffff7c2a120 <_Unwind_Resume>
End of assembler dump.

回到调试，也是和fread的开始类似，先计算要写入的字节数（为0则直接返回），再判断一下_flags的状态进行一些有关锁的操作

1
2
3
4
5
6
7
8
9
10
11
0x7ffff7c7ff24 <fwrite+4>     push   r15
0x7ffff7c7ff26 <fwrite+6>     push   r14
0x7ffff7c7ff28 <fwrite+8>     push   r13
0x7ffff7c7ff2a <fwrite+10>    push   r12
0x7ffff7c7ff2c <fwrite+12>    mov    r12, rsi     R12 => 1
0x7ffff7c7ff2f <fwrite+15>    push   rbp
0x7ffff7c7ff30 <fwrite+16>    imul   r12, rdx
0x7ffff7c7ff34 <fwrite+20>    push   rbx
0x7ffff7c7ff35 <fwrite+21>    sub    rsp, 8       RSP => 0x7fffffffdc90 (0x7fffffffdc98 - 0x8)
0x7ffff7c7ff39 <fwrite+25>    test   r12, r12     0x20 & 0x20     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x7ffff7c7ff3c <fwrite+28>  ✘ je     fwrite+245                  <fwrite+245>

可见判断了写入字节数test r12, r12是否为0，为零则跳转到<fwrite+245>，正是返回的指令

1
2
3
4
5
6
7
8
9
0x00007ffff7c80015 <+245>:   add    rsp,0x8
0x00007ffff7c80019 <+249>:   mov    rax,r12
0x00007ffff7c8001c <+252>:   pop    rbx
0x00007ffff7c8001d <+253>:   pop    rbp
0x00007ffff7c8001e <+254>:   pop    r12
0x00007ffff7c80020 <+256>:   pop    r13
0x00007ffff7c80022 <+258>:   pop    r14
0x00007ffff7c80024 <+260>:   pop    r15
0x00007ffff7c80026 <+262>:   ret

然后就是关于_IO_FILE线程锁的操作，笔者对这块知识不熟悉，就先不放了
再后续就是检查_mode字段以及vtable操作

1
2
3
0x7ffff7c7ff8b <fwrite+107>    mov    eax, dword ptr [rbx + 0xc0]     EAX, [0x555555559360] => 0
0x7ffff7c7ff91 <fwrite+113>    test   eax, eax                        0 & 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c7ff93 <fwrite+115>  ✘ jne    fwrite+272                  <fwrite+272>

这里检查[rbx + 0xc0]也就是_IO_FILE_plus偏移0xc0处，也就是_mode处是否为0，不为0则跳转，我们看跳转处

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *_IO_list_all
$1 = {
  file = {
    _flags = -72539000,
    _IO_read_ptr = 0x0,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x0,
    _IO_buf_end = 0x0,
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = 0,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

我们这里_mode为0，不会跳转，但还是看看跳转过去的判断

1
2
0x00007ffff7c80030 <+272>:   cmp    eax,0xffffffff
0x00007ffff7c80033 <+275>:   je     0x7ffff7c7ffa3 <__GI__IO_fwrite+131>

_mode为-1则跳转回来

1
2
3
4
5
6
7
8
0x7ffff7c7ff99 <fwrite+121>    mov    dword ptr [rbx + 0xc0], 0xffffffff     [0x555555559360] <= 0xffffffff
0x7ffff7c7ffa3 <fwrite+131>    mov    r15, qword ptr [rbx + 0xd8]            R15, [0x555555559378] => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c7ffaa <fwrite+138>    lea    rdx, [rip + 0x196a4f]                  RDX => 0x7ffff7e16a00 (_IO_helper_jumps) ◂— 0
0x7ffff7c7ffb1 <fwrite+145>    lea    rax, [rip + 0x1977b0]                  RAX => 0x7ffff7e17768 ◂— 0
0x7ffff7c7ffb8 <fwrite+152>    sub    rax, rdx                               RAX => 0xd68 (0x7ffff7e17768 - 0x7ffff7e16a00)
0x7ffff7c7ffbb <fwrite+155>    mov    rcx, r15                               RCX => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c7ffbe <fwrite+158>    sub    rcx, rdx                               RCX => 0xc00 (0x7ffff7e17600 - 0x7ffff7e16a00)
0x7ffff7c7ffc1 <fwrite+161>    cmp    rax, rcx                               0xd68 - 0xc00     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]

可以看到跳转回来处（我们这里其实不会跳转，因为_mode已经是0）后续就开始进行vtable的安全检查，注意

1
0x7ffff7c7ff99 <fwrite+121>    mov    dword ptr [rbx + 0xc0], 0xffffffff     [0x555555559360] <= 0xffffffff

将_mode设置为-1，我们验证一下

1
2
3
4
pwndbg> p _IO_list_all
$3 = (struct _IO_FILE_plus *) 0x5555555592a0
pwndbg> x 0x5555555592a0+0xc0
0x555555559360: 0xffffffff

看到_mode已经被设置为了-1
后续对vtable的检查和fread一样，先判断是否在指定范围内

1
2
3
4
5
6
7
8
0x7ffff7c7ffa3 <fwrite+131>    mov    r15, qword ptr [rbx + 0xd8]            R15, [0x555555559378] => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c7ffaa <fwrite+138>    lea    rdx, [rip + 0x196a4f]                  RDX => 0x7ffff7e16a00 (_IO_helper_jumps) ◂— 0
0x7ffff7c7ffb1 <fwrite+145>    lea    rax, [rip + 0x1977b0]                  RAX => 0x7ffff7e17768 ◂— 0
0x7ffff7c7ffb8 <fwrite+152>    sub    rax, rdx                               RAX => 0xd68 (0x7ffff7e17768 - 0x7ffff7e16a00)
0x7ffff7c7ffbb <fwrite+155>    mov    rcx, r15                               RCX => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c7ffbe <fwrite+158>    sub    rcx, rdx                               RCX => 0xc00 (0x7ffff7e17600 - 0x7ffff7e16a00)
0x7ffff7c7ffc1 <fwrite+161>    cmp    rax, rcx                               0xd68 - 0xc00     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x7ffff7c7ffc4 <ferite+164>:   jbe    0x7ffff7c80080 <__GI__IO_fwrite+352>

不在指定范围内则调用_IO_vtable_check函数来进一步检查

1
0x00007ffff7c80080 <+352>:   call   0x7ffff7c89ef0 <_IO_vtable_check>

这里不再赘述，后续调用vtable->_IO_file_xsputn函数

1
2
3
4
0x7ffff7c7ffca <fwrite+170>    mov    rdx, r12     RDX => 0x20
0x7ffff7c7ffcd <fwrite+173>    mov    rsi, r14     RSI => 0x555555559480 ◂— 0
0x7ffff7c7ffd0 <fwrite+176>    mov    rdi, rbx     RDI => 0x5555555592a0 ◂— 0xfbad2488
0x7ffff7c7ffd3 <fwrite+179>    call   qword ptr [r15 + 0x38]      <_IO_file_xsputn>

可以看到这里r15正指向vtable

1
r15            0x7ffff7e17600

[r15 + 0x38]处正是vtable中偏移0x38的_IO_file_xsputn
我们还是贴上汇编

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
pwndbg> disass
Dump of assembler code for function _IO_new_file_xsputn:
=> 0x00007ffff7c8b600 <+0>:     endbr64
   0x00007ffff7c8b604 <+4>:     push   r15
   0x00007ffff7c8b606 <+6>:     push   r14
   0x00007ffff7c8b608 <+8>:     push   r13
   0x00007ffff7c8b60a <+10>:    push   r12
   0x00007ffff7c8b60c <+12>:    xor    r12d,r12d
   0x00007ffff7c8b60f <+15>:    push   rbp
   0x00007ffff7c8b610 <+16>:    push   rbx
   0x00007ffff7c8b611 <+17>:    sub    rsp,0x18
   0x00007ffff7c8b615 <+21>:    test   rdx,rdx
   0x00007ffff7c8b618 <+24>:    je     0x7ffff7c8b66e <_IO_new_file_xsputn+110>
   0x00007ffff7c8b61a <+26>:    mov    rbp,rdi
   0x00007ffff7c8b61d <+29>:    mov    r13,rsi
   0x00007ffff7c8b620 <+32>:    mov    rdi,QWORD PTR [rdi+0x28]
   0x00007ffff7c8b624 <+36>:    mov    rbx,rdx
   0x00007ffff7c8b627 <+39>:    mov    eax,DWORD PTR [rbp+0x0]
   0x00007ffff7c8b62a <+42>:    and    eax,0xa00
   0x00007ffff7c8b62f <+47>:    cmp    eax,0xa00
   0x00007ffff7c8b634 <+52>:    je     0x7ffff7c8b680 <_IO_new_file_xsputn+128>
   0x00007ffff7c8b636 <+54>:    mov    r12,QWORD PTR [rbp+0x30]
   0x00007ffff7c8b63a <+58>:    cmp    r12,rdi
   0x00007ffff7c8b63d <+61>:    jbe    0x7ffff7c8b6a0 <_IO_new_file_xsputn+160>
   0x00007ffff7c8b63f <+63>:    sub    r12,rdi
   0x00007ffff7c8b642 <+66>:    xor    r14d,r14d
   0x00007ffff7c8b645 <+69>:    test   r12,r12
   0x00007ffff7c8b648 <+72>:    je     0x7ffff7c8b6a0 <_IO_new_file_xsputn+160>
   0x00007ffff7c8b64a <+74>:    cmp    r12,rbx
   0x00007ffff7c8b64d <+77>:    mov    rsi,r13
   0x00007ffff7c8b650 <+80>:    mov    r15,rbx
   0x00007ffff7c8b653 <+83>:    cmova  r12,rbx
   0x00007ffff7c8b657 <+87>:    mov    rdx,r12
   0x00007ffff7c8b65a <+90>:    add    r13,r12
   0x00007ffff7c8b65d <+93>:    sub    r15,r12
   0x00007ffff7c8b660 <+96>:    call   0x7ffff7c283e0 <*ABS*+0xa97d0@plt>
   0x00007ffff7c8b665 <+101>:   mov    QWORD PTR [rbp+0x28],rax
   0x00007ffff7c8b669 <+105>:   add    r14,r15
   0x00007ffff7c8b66c <+108>:   jne    0x7ffff7c8b6a3 <_IO_new_file_xsputn+163>
   0x00007ffff7c8b66e <+110>:   add    rsp,0x18
   0x00007ffff7c8b672 <+114>:   mov    rax,r12
   0x00007ffff7c8b675 <+117>:   pop    rbx
   0x00007ffff7c8b676 <+118>:   pop    rbp
   0x00007ffff7c8b677 <+119>:   pop    r12
   0x00007ffff7c8b679 <+121>:   pop    r13
   0x00007ffff7c8b67b <+123>:   pop    r14
   0x00007ffff7c8b67d <+125>:   pop    r15
   0x00007ffff7c8b67f <+127>:   ret
   0x00007ffff7c8b680 <+128>:   mov    r12,QWORD PTR [rbp+0x40]
   0x00007ffff7c8b684 <+132>:   lea    rax,[rsi+rdx*1]
   0x00007ffff7c8b688 <+136>:   sub    r12,rdi
   0x00007ffff7c8b68b <+139>:   cmp    rdx,r12
   0x00007ffff7c8b68e <+142>:   jbe    0x7ffff7c8b73d <_IO_new_file_xsputn+317>
   0x00007ffff7c8b694 <+148>:   xor    r14d,r14d
   0x00007ffff7c8b697 <+151>:   test   r12,r12
   0x00007ffff7c8b69a <+154>:   jne    0x7ffff7c8b64a <_IO_new_file_xsputn+74>
   0x00007ffff7c8b69c <+156>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8b6a0 <+160>:   mov    r15,rbx
   0x00007ffff7c8b6a3 <+163>:   mov    rax,QWORD PTR [rbp+0xd8]
   0x00007ffff7c8b6aa <+170>:   lea    r14,[rip+0x18b34f]        # 0x7ffff7e16a00 <_IO_helper_jumps>
   0x00007ffff7c8b6b1 <+177>:   lea    r12,[rip+0x18c0b0]        # 0x7ffff7e17768
   0x00007ffff7c8b6b8 <+184>:   sub    r12,r14
   0x00007ffff7c8b6bb <+187>:   mov    rdx,rax
   0x00007ffff7c8b6be <+190>:   sub    rdx,r14
   0x00007ffff7c8b6c1 <+193>:   cmp    r12,rdx
   0x00007ffff7c8b6c4 <+196>:   jbe    0x7ffff7c8b880 <_IO_new_file_xsputn+640>
   0x00007ffff7c8b6ca <+202>:   mov    esi,0xffffffff
   0x00007ffff7c8b6cf <+207>:   mov    rdi,rbp
   0x00007ffff7c8b6d2 <+210>:   call   QWORD PTR [rax+0x18]
   0x00007ffff7c8b6d5 <+213>:   cmp    eax,0xffffffff
   0x00007ffff7c8b6d8 <+216>:   je     0x7ffff7c8b830 <_IO_new_file_xsputn+560>
   0x00007ffff7c8b6de <+222>:   mov    rcx,QWORD PTR [rbp+0x40]
   0x00007ffff7c8b6e2 <+226>:   sub    rcx,QWORD PTR [rbp+0x38]
   0x00007ffff7c8b6e6 <+230>:   mov    r8,r15
   0x00007ffff7c8b6e9 <+233>:   cmp    rcx,0x7f
   0x00007ffff7c8b6ed <+237>:   jbe    0x7ffff7c8b6fa <_IO_new_file_xsputn+250>
   0x00007ffff7c8b6ef <+239>:   mov    rax,r15
   0x00007ffff7c8b6f2 <+242>:   xor    edx,edx
   0x00007ffff7c8b6f4 <+244>:   div    rcx
   0x00007ffff7c8b6f7 <+247>:   sub    r8,rdx
   0x00007ffff7c8b6fa <+250>:   test   r8,r8
   0x00007ffff7c8b6fd <+253>:   jne    0x7ffff7c8b750 <_IO_new_file_xsputn+336>
   0x00007ffff7c8b6ff <+255>:   mov    r12,rbx
   0x00007ffff7c8b702 <+258>:   test   r15,r15
   0x00007ffff7c8b705 <+261>:   je     0x7ffff7c8b66e <_IO_new_file_xsputn+110>
   0x00007ffff7c8b70b <+267>:   lea    rsi,[r13+r8*1+0x0]
   0x00007ffff7c8b710 <+272>:   mov    rdx,r15
   0x00007ffff7c8b713 <+275>:   mov    rdi,rbp
   0x00007ffff7c8b716 <+278>:   call   0x7ffff7c8ddc0 <__GI__IO_default_xsputn>
   0x00007ffff7c8b71b <+283>:   sub    rax,r15
   0x00007ffff7c8b71e <+286>:   add    r12,rax
   0x00007ffff7c8b721 <+289>:   jmp    0x7ffff7c8b66e <_IO_new_file_xsputn+110>
   0x00007ffff7c8b726 <+294>:   cs nop WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8b730 <+304>:   sub    rax,0x1
   0x00007ffff7c8b734 <+308>:   cmp    BYTE PTR [rax],0xa
   0x00007ffff7c8b737 <+311>:   je     0x7ffff7c8b850 <_IO_new_file_xsputn+592>
   0x00007ffff7c8b73d <+317>:   cmp    r13,rax
   0x00007ffff7c8b740 <+320>:   jb     0x7ffff7c8b730 <_IO_new_file_xsputn+304>
   0x00007ffff7c8b742 <+322>:   xor    r14d,r14d
   0x00007ffff7c8b745 <+325>:   jmp    0x7ffff7c8b64a <_IO_new_file_xsputn+74>
   0x00007ffff7c8b74a <+330>:   nop    WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8b750 <+336>:   mov    rax,QWORD PTR [rbp+0xd8]
   0x00007ffff7c8b757 <+343>:   test   DWORD PTR [rbp+0x0],0x1000
   0x00007ffff7c8b75e <+350>:   jne    0x7ffff7c8b870 <_IO_new_file_xsputn+624>
   0x00007ffff7c8b764 <+356>:   mov    rdx,QWORD PTR [rbp+0x10]
   0x00007ffff7c8b768 <+360>:   mov    rsi,QWORD PTR [rbp+0x20]
   0x00007ffff7c8b76c <+364>:   cmp    rdx,rsi
   0x00007ffff7c8b76f <+367>:   je     0x7ffff7c8b7b1 <_IO_new_file_xsputn+433>
   0x00007ffff7c8b771 <+369>:   mov    rcx,rax
   0x00007ffff7c8b774 <+372>:   sub    rcx,r14
   0x00007ffff7c8b777 <+375>:   cmp    r12,rcx
   0x00007ffff7c8b77a <+378>:   jbe    0x7ffff7c8b8fd <_IO_new_file_xsputn+765>
   0x00007ffff7c8b780 <+384>:   sub    rsi,rdx
   0x00007ffff7c8b783 <+387>:   mov    QWORD PTR [rsp],r8
   0x00007ffff7c8b787 <+391>:   mov    edx,0x1
   0x00007ffff7c8b78c <+396>:   mov    rdi,rbp
   0x00007ffff7c8b78f <+399>:   call   QWORD PTR [rax+0x80]
   0x00007ffff7c8b795 <+405>:   cmp    rax,0xffffffffffffffff
   0x00007ffff7c8b799 <+409>:   je     0x7ffff7c8b8aa <_IO_new_file_xsputn+682>
   0x00007ffff7c8b79f <+415>:   mov    QWORD PTR [rbp+0x90],rax
   0x00007ffff7c8b7a6 <+422>:   mov    r8,QWORD PTR [rsp]
   0x00007ffff7c8b7aa <+426>:   mov    rax,QWORD PTR [rbp+0xd8]
   0x00007ffff7c8b7b1 <+433>:   mov    rdx,rax
   0x00007ffff7c8b7b4 <+436>:   sub    rdx,r14
   0x00007ffff7c8b7b7 <+439>:   cmp    r12,rdx
   0x00007ffff7c8b7ba <+442>:   jbe    0x7ffff7c8b8e1 <_IO_new_file_xsputn+737>
   0x00007ffff7c8b7c0 <+448>:   mov    QWORD PTR [rsp],r8
   0x00007ffff7c8b7c4 <+452>:   mov    rdx,r8
   0x00007ffff7c8b7c7 <+455>:   mov    rsi,r13
   0x00007ffff7c8b7ca <+458>:   mov    rdi,rbp
   0x00007ffff7c8b7cd <+461>:   call   QWORD PTR [rax+0x78]
   0x00007ffff7c8b7d0 <+464>:   mov    r8,QWORD PTR [rsp]
   0x00007ffff7c8b7d4 <+468>:   mov    r14,rax
   0x00007ffff7c8b7d7 <+471>:   movzx  eax,WORD PTR [rbp+0x80]
   0x00007ffff7c8b7de <+478>:   test   r14,r14
   0x00007ffff7c8b7e1 <+481>:   je     0x7ffff7c8b7ec <_IO_new_file_xsputn+492>
   0x00007ffff7c8b7e3 <+483>:   test   ax,ax
   0x00007ffff7c8b7e6 <+486>:   jne    0x7ffff7c8b8c0 <_IO_new_file_xsputn+704>
   0x00007ffff7c8b7ec <+492>:   mov    rax,QWORD PTR [rbp+0x38]
   0x00007ffff7c8b7f0 <+496>:   mov    edx,DWORD PTR [rbp+0xc0]
   0x00007ffff7c8b7f6 <+502>:   movq   xmm0,rax
   0x00007ffff7c8b7fb <+507>:   mov    QWORD PTR [rbp+0x28],rax
   0x00007ffff7c8b7ff <+511>:   punpcklqdq xmm0,xmm0
   0x00007ffff7c8b803 <+515>:   movups XMMWORD PTR [rbp+0x8],xmm0
   0x00007ffff7c8b807 <+519>:   movups XMMWORD PTR [rbp+0x18],xmm0
   0x00007ffff7c8b80b <+523>:   test   edx,edx
   0x00007ffff7c8b80d <+525>:   jle    0x7ffff7c8b898 <_IO_new_file_xsputn+664>
   0x00007ffff7c8b813 <+531>:   mov    rax,QWORD PTR [rbp+0x40]
   0x00007ffff7c8b817 <+535>:   mov    QWORD PTR [rbp+0x30],rax
   0x00007ffff7c8b81b <+539>:   cmp    r14,r8
   0x00007ffff7c8b81e <+542>:   jb     0x7ffff7c8b8ad <_IO_new_file_xsputn+685>
   0x00007ffff7c8b824 <+548>:   sub    r15,r14
   0x00007ffff7c8b827 <+551>:   jmp    0x7ffff7c8b6ff <_IO_new_file_xsputn+255>
   0x00007ffff7c8b82c <+556>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8b830 <+560>:   sub    rbx,r15
   0x00007ffff7c8b833 <+563>:   mov    rax,0xffffffffffffffff
   0x00007ffff7c8b83a <+570>:   test   r15,r15
   0x00007ffff7c8b83d <+573>:   mov    r12,rbx
   0x00007ffff7c8b840 <+576>:   cmove  r12,rax
   0x00007ffff7c8b844 <+580>:   jmp    0x7ffff7c8b66e <_IO_new_file_xsputn+110>
   0x00007ffff7c8b849 <+585>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8b850 <+592>:   sub    rax,r13
   0x00007ffff7c8b853 <+595>:   add    rax,0x1
   0x00007ffff7c8b857 <+599>:   mov    r12,rax
   0x00007ffff7c8b85a <+602>:   jne    0x7ffff7c8b921 <_IO_new_file_xsputn+801>
   0x00007ffff7c8b860 <+608>:   mov    r15,rbx
   0x00007ffff7c8b863 <+611>:   mov    r14d,0x1
   0x00007ffff7c8b869 <+617>:   jmp    0x7ffff7c8b669 <_IO_new_file_xsputn+105>
   0x00007ffff7c8b86e <+622>:   xchg   ax,ax
   0x00007ffff7c8b870 <+624>:   mov    QWORD PTR [rbp+0x90],0xffffffffffffffff
   0x00007ffff7c8b87b <+635>:   jmp    0x7ffff7c8b7b1 <_IO_new_file_xsputn+433>
   0x00007ffff7c8b880 <+640>:   mov    QWORD PTR [rsp],rax
   0x00007ffff7c8b884 <+644>:   call   0x7ffff7c89ef0 <_IO_vtable_check>
   0x00007ffff7c8b889 <+649>:   mov    rax,QWORD PTR [rsp]
   0x00007ffff7c8b88d <+653>:   jmp    0x7ffff7c8b6ca <_IO_new_file_xsputn+202>
   0x00007ffff7c8b892 <+658>:   nop    WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8b898 <+664>:   test   DWORD PTR [rbp+0x0],0x202
   0x00007ffff7c8b89f <+671>:   jne    0x7ffff7c8b817 <_IO_new_file_xsputn+535>
   0x00007ffff7c8b8a5 <+677>:   jmp    0x7ffff7c8b813 <_IO_new_file_xsputn+531>
   0x00007ffff7c8b8aa <+682>:   xor    r14d,r14d
   0x00007ffff7c8b8ad <+685>:   sub    rbx,r15
   0x00007ffff7c8b8b0 <+688>:   mov    r12,rbx
   0x00007ffff7c8b8b3 <+691>:   add    r12,r14
   0x00007ffff7c8b8b6 <+694>:   jmp    0x7ffff7c8b66e <_IO_new_file_xsputn+110>
   0x00007ffff7c8b8bb <+699>:   nop    DWORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8b8c0 <+704>:   lea    edi,[rax-0x1]
   0x00007ffff7c8b8c3 <+707>:   mov    edx,r14d
   0x00007ffff7c8b8c6 <+710>:   mov    rsi,r13
   0x00007ffff7c8b8c9 <+713>:   call   0x7ffff7c8e8b0 <__GI__IO_adjust_column>
   0x00007ffff7c8b8ce <+718>:   mov    r8,QWORD PTR [rsp]
   0x00007ffff7c8b8d2 <+722>:   add    eax,0x1
   0x00007ffff7c8b8d5 <+725>:   mov    WORD PTR [rbp+0x80],ax
   0x00007ffff7c8b8dc <+732>:   jmp    0x7ffff7c8b7ec <_IO_new_file_xsputn+492>
   0x00007ffff7c8b8e1 <+737>:   mov    QWORD PTR [rsp+0x8],rax
   0x00007ffff7c8b8e6 <+742>:   mov    QWORD PTR [rsp],r8
   0x00007ffff7c8b8ea <+746>:   call   0x7ffff7c89ef0 <_IO_vtable_check>
   0x00007ffff7c8b8ef <+751>:   mov    rax,QWORD PTR [rsp+0x8]
   0x00007ffff7c8b8f4 <+756>:   mov    r8,QWORD PTR [rsp]
   0x00007ffff7c8b8f8 <+760>:   jmp    0x7ffff7c8b7c0 <_IO_new_file_xsputn+448>
   0x00007ffff7c8b8fd <+765>:   mov    QWORD PTR [rsp+0x8],rax
   0x00007ffff7c8b902 <+770>:   mov    QWORD PTR [rsp],r8
   0x00007ffff7c8b906 <+774>:   call   0x7ffff7c89ef0 <_IO_vtable_check>
   0x00007ffff7c8b90b <+779>:   mov    rsi,QWORD PTR [rbp+0x20]
   0x00007ffff7c8b90f <+783>:   mov    rdx,QWORD PTR [rbp+0x10]
   0x00007ffff7c8b913 <+787>:   mov    rax,QWORD PTR [rsp+0x8]
   0x00007ffff7c8b918 <+792>:   mov    r8,QWORD PTR [rsp]
   0x00007ffff7c8b91c <+796>:   jmp    0x7ffff7c8b780 <_IO_new_file_xsputn+384>
   0x00007ffff7c8b921 <+801>:   mov    r14d,0x1
   0x00007ffff7c8b927 <+807>:   jmp    0x7ffff7c8b64a <_IO_new_file_xsputn+74>
End of assembler dump.

回到调试，还是先判断了写入字节数是否为0，为0直接返回

1
2
3
4
5
6
7
8
9
10
0x7ffff7c8b604 <_IO_file_xsputn+4>     push   r15
0x7ffff7c8b606 <_IO_file_xsputn+6>     push   r14
0x7ffff7c8b608 <_IO_file_xsputn+8>     push   r13
0x7ffff7c8b60a <_IO_file_xsputn+10>    push   r12
0x7ffff7c8b60c <_IO_file_xsputn+12>    xor    r12d, r12d     R12D => 0
0x7ffff7c8b60f <_IO_file_xsputn+15>    push   rbp
0x7ffff7c8b610 <_IO_file_xsputn+16>    push   rbx
0x7ffff7c8b611 <_IO_file_xsputn+17>    sub    rsp, 0x18      RSP => 0x7fffffffdc40 (0x7fffffffdc58 - 0x18)
0x7ffff7c8b615 <_IO_file_xsputn+21>    test   rdx, rdx       0x20 & 0x20     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x7ffff7c8b618 <_IO_file_xsputn+24>  ✘ je     _IO_file_xsputn+110         <_IO_file_xsputn+110>
1
2
3
4
5
6
7
8
9
0x00007ffff7c8b66e <+110>:   add    rsp,0x18
0x00007ffff7c8b672 <+114>:   mov    rax,r12
0x00007ffff7c8b675 <+117>:   pop    rbx
0x00007ffff7c8b676 <+118>:   pop    rbp
0x00007ffff7c8b677 <+119>:   pop    r12
0x00007ffff7c8b679 <+121>:   pop    r13
0x00007ffff7c8b67b <+123>:   pop    r14
0x00007ffff7c8b67d <+125>:   pop    r15
0x00007ffff7c8b67f <+127>:   ret

继续往后

1
2
3
4
5
6
0x7ffff7c8b620 <_IO_file_xsputn+32>     mov    rdi, qword ptr [rdi + 0x28]     RDI, [0x5555555592c8] => 0
0x7ffff7c8b624 <_IO_file_xsputn+36>     mov    rbx, rdx                        RBX => 0x20
0x7ffff7c8b627 <_IO_file_xsputn+39>     mov    eax, dword ptr [rbp]            EAX, [0x5555555592a0] => 0xfbad2488
0x7ffff7c8b62a <_IO_file_xsputn+42>     and    eax, 0xa00                      EAX => 0 (0xfbad2488 & 0xa00)
0x7ffff7c8b62f <_IO_file_xsputn+47>     cmp    eax, 0xa00                      0x0 - 0xa00     EFLAGS => 0x287 [ CF PF af zf SF IF df of ac ]
0x7ffff7c8b634 <_IO_file_xsputn+52>   ✘ je     _IO_file_xsputn+128         <_IO_file_xsputn+128>

[rdi+0x28]即_IO_FILE_plus偏移0x28处的 _IO_write_ptr，将其保存，然后检查 _flags & 0xa00 == 0xa00，这是判断是否为 _IO_LINE_BUF 或 _IO_UNBUFFERED（判断缓冲模式），若是，则跳到另一分支处理，先不管，往下走

1
2
3
0x7ffff7c8b636 <_IO_file_xsputn+54>     mov    r12, qword ptr [rbp + 0x30]     R12, [0x5555555592d0] => 0
0x7ffff7c8b63a <_IO_file_xsputn+58>     cmp    r12, rdi                        0 - 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8b63d <_IO_file_xsputn+61>   ✔ jbe    _IO_file_xsputn+160         <_IO_file_xsputn+160>

这里[rbp+0x30]即_IO_FILE_plus偏移0x30处的 _IO_write_end，如果_IO_write_ptr>= _IO_write_end，则写缓冲区不足，跳转

1
2
3
4
5
6
7
8
9
10
11
12
0x7ffff7c8b6a0 <_IO_file_xsputn+160>    mov    r15, rbx                        R15 => 0x20
0x7ffff7c8b6a3 <_IO_file_xsputn+163>    mov    rax, qword ptr [rbp + 0xd8]     RAX, [0x555555559378] => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c8b6aa <_IO_file_xsputn+170>    lea    r14, [rip + 0x18b34f]           R14 => 0x7ffff7e16a00 (_IO_helper_jumps) ◂— 0
0x7ffff7c8b6b1 <_IO_file_xsputn+177>    lea    r12, [rip + 0x18c0b0]           R12 => 0x7ffff7e17768 ◂— 0
0x7ffff7c8b6b8 <_IO_file_xsputn+184>    sub    r12, r14                        R12 => 0xd68 (0x7ffff7e17768 - 0x7ffff7e16a00)
0x7ffff7c8b6bb <_IO_file_xsputn+187>    mov    rdx, rax                        RDX => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c8b6be <_IO_file_xsputn+190>    sub    rdx, r14                        RDX => 0xc00 (0x7ffff7e17600 - 0x7ffff7e16a00)
0x7ffff7c8b6c1 <_IO_file_xsputn+193>    cmp    r12, rdx                        0xd68 - 0xc00     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x7ffff7c8b6c4 <_IO_file_xsputn+196>  ✘ jbe    _IO_file_xsputn+640         <_IO_file_xsputn+640>

0x00007ffff7c8b880 <+640>:   mov    QWORD PTR [rsp],rax
0x00007ffff7c8b884 <+644>:   call   0x7ffff7c89ef0 <_IO_vtable_check>

这里是vtable的安全检查，不再赘述，往下继续，调用vtable->_IO_file_overflow函数（vtable偏移0x18处）

1
2
3
0x7ffff7c8b6ca <_IO_file_xsputn+202>    mov    esi, 0xffffffff     ESI => 0xffffffff
0x7ffff7c8b6cf <_IO_file_xsputn+207>    mov    rdi, rbp            RDI => 0x5555555592a0 ◂— 0xfbad2488
0x7ffff7c8b6d2 <_IO_file_xsputn+210>    call   qword ptr [rax + 0x18]      <_IO_file_overflow>

先贴上其汇编

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
pwndbg> disass
Dump of assembler code for function _IO_new_file_overflow:
=> 0x00007ffff7c8cdc0 <+0>:     endbr64
   0x00007ffff7c8cdc4 <+4>:     push   r12
   0x00007ffff7c8cdc6 <+6>:     push   rbp
   0x00007ffff7c8cdc7 <+7>:     mov    rbp,rdi
   0x00007ffff7c8cdca <+10>:    push   rbx
   0x00007ffff7c8cdcb <+11>:    mov    eax,DWORD PTR [rdi]
   0x00007ffff7c8cdcd <+13>:    test   al,0x8
   0x00007ffff7c8cdcf <+15>:    jne    0x7ffff7c8cfc0 <_IO_new_file_overflow+512>
   0x00007ffff7c8cdd5 <+21>:    mov    ebx,esi
   0x00007ffff7c8cdd7 <+23>:    mov    rsi,QWORD PTR [rdi+0x20]
   0x00007ffff7c8cddb <+27>:    test   ah,0x8
   0x00007ffff7c8cdde <+30>:    je     0x7ffff7c8ce30 <_IO_new_file_overflow+112>
   0x00007ffff7c8cde0 <+32>:    test   rsi,rsi
   0x00007ffff7c8cde3 <+35>:    je     0x7ffff7c8cf58 <_IO_new_file_overflow+408>
   0x00007ffff7c8cde9 <+41>:    mov    rdx,QWORD PTR [rdi+0x28]
   0x00007ffff7c8cded <+45>:    cmp    ebx,0xffffffff
   0x00007ffff7c8cdf0 <+48>:    je     0x7ffff7c8ce9c <_IO_new_file_overflow+220>
   0x00007ffff7c8cdf6 <+54>:    cmp    QWORD PTR [rbp+0x40],rdx
   0x00007ffff7c8cdfa <+58>:    je     0x7ffff7c8cee0 <_IO_new_file_overflow+288>
   0x00007ffff7c8ce00 <+64>:    lea    rax,[rdx+0x1]
   0x00007ffff7c8ce04 <+68>:    mov    QWORD PTR [rbp+0x28],rax
   0x00007ffff7c8ce08 <+72>:    mov    BYTE PTR [rdx],bl
   0x00007ffff7c8ce0a <+74>:    mov    eax,DWORD PTR [rbp+0x0]
   0x00007ffff7c8ce0d <+77>:    test   al,0x2
   0x00007ffff7c8ce0f <+79>:    jne    0x7ffff7c8ceb0 <_IO_new_file_overflow+240>
   0x00007ffff7c8ce15 <+85>:    test   ah,0x2
   0x00007ffff7c8ce18 <+88>:    je     0x7ffff7c8ce23 <_IO_new_file_overflow+99>
   0x00007ffff7c8ce1a <+90>:    cmp    ebx,0xa
   0x00007ffff7c8ce1d <+93>:    je     0x7ffff7c8ceb0 <_IO_new_file_overflow+240>
   0x00007ffff7c8ce23 <+99>:    movzx  eax,bl
   0x00007ffff7c8ce26 <+102>:   pop    rbx
   0x00007ffff7c8ce27 <+103>:   pop    rbp
   0x00007ffff7c8ce28 <+104>:   pop    r12
   0x00007ffff7c8ce2a <+106>:   ret
   0x00007ffff7c8ce2b <+107>:   nop    DWORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8ce30 <+112>:   test   rsi,rsi
   0x00007ffff7c8ce33 <+115>:   je     0x7ffff7c8cf58 <_IO_new_file_overflow+408>
   0x00007ffff7c8ce39 <+121>:   mov    rdx,QWORD PTR [rdi+0x8]
   0x00007ffff7c8ce3d <+125>:   test   ah,0x1
   0x00007ffff7c8ce40 <+128>:   jne    0x7ffff7c8cf80 <_IO_new_file_overflow+448>
   0x00007ffff7c8ce46 <+134>:   mov    rsi,QWORD PTR [rbp+0x40]
   0x00007ffff7c8ce4a <+138>:   cmp    rsi,rdx
   0x00007ffff7c8ce4d <+141>:   je     0x7ffff7c8cf20 <_IO_new_file_overflow+352>
   0x00007ffff7c8ce53 <+147>:   mov    rcx,QWORD PTR [rbp+0x10]
   0x00007ffff7c8ce57 <+151>:   mov    QWORD PTR [rbp+0x8],rcx
   0x00007ffff7c8ce5b <+155>:   mov    QWORD PTR [rbp+0x18],rcx
   0x00007ffff7c8ce5f <+159>:   mov    ecx,eax
   0x00007ffff7c8ce61 <+161>:   or     ch,0x8
   0x00007ffff7c8ce64 <+164>:   mov    QWORD PTR [rbp+0x30],rsi
   0x00007ffff7c8ce68 <+168>:   mov    rsi,rdx
   0x00007ffff7c8ce6b <+171>:   mov    DWORD PTR [rbp+0x0],ecx
   0x00007ffff7c8ce6e <+174>:   mov    ecx,DWORD PTR [rbp+0xc0]
   0x00007ffff7c8ce74 <+180>:   mov    QWORD PTR [rbp+0x28],rdx
   0x00007ffff7c8ce78 <+184>:   mov    QWORD PTR [rbp+0x20],rdx
   0x00007ffff7c8ce7c <+188>:   test   ecx,ecx
   0x00007ffff7c8ce7e <+190>:   jg     0x7ffff7c8cded <_IO_new_file_overflow+45>
   0x00007ffff7c8ce84 <+196>:   test   eax,0x202
   0x00007ffff7c8ce89 <+201>:   je     0x7ffff7c8cded <_IO_new_file_overflow+45>
   0x00007ffff7c8ce8f <+207>:   mov    QWORD PTR [rbp+0x30],rdx
   0x00007ffff7c8ce93 <+211>:   cmp    ebx,0xffffffff
   0x00007ffff7c8ce96 <+214>:   jne    0x7ffff7c8cdf6 <_IO_new_file_overflow+54>
   0x00007ffff7c8ce9c <+220>:   pop    rbx
   0x00007ffff7c8ce9d <+221>:   mov    rdi,rbp
   0x00007ffff7c8cea0 <+224>:   sub    rdx,rsi
   0x00007ffff7c8cea3 <+227>:   pop    rbp
   0x00007ffff7c8cea4 <+228>:   pop    r12
   0x00007ffff7c8cea6 <+230>:   jmp    0x7ffff7c8c930 <_IO_new_do_write>
   0x00007ffff7c8ceab <+235>:   nop    DWORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8ceb0 <+240>:   mov    rsi,QWORD PTR [rbp+0x20]
   0x00007ffff7c8ceb4 <+244>:   mov    rdx,QWORD PTR [rbp+0x28]
   0x00007ffff7c8ceb8 <+248>:   mov    rdi,rbp
   0x00007ffff7c8cebb <+251>:   sub    rdx,rsi
   0x00007ffff7c8cebe <+254>:   call   0x7ffff7c8c930 <_IO_new_do_write>
   0x00007ffff7c8cec3 <+259>:   cmp    eax,0xffffffff
   0x00007ffff7c8cec6 <+262>:   jne    0x7ffff7c8ce23 <_IO_new_file_overflow+99>
   0x00007ffff7c8cecc <+268>:   mov    eax,0xffffffff
   0x00007ffff7c8ced1 <+273>:   jmp    0x7ffff7c8ce26 <_IO_new_file_overflow+102>
   0x00007ffff7c8ced6 <+278>:   cs nop WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8cee0 <+288>:   mov    eax,DWORD PTR [rbp+0xc0]
   0x00007ffff7c8cee6 <+294>:   test   eax,eax
   0x00007ffff7c8cee8 <+296>:   jle    0x7ffff7c8cf40 <_IO_new_file_overflow+384>
   0x00007ffff7c8ceea <+298>:   mov    rax,QWORD PTR [rbp+0xa0]
   0x00007ffff7c8cef1 <+305>:   mov    rdi,rbp
   0x00007ffff7c8cef4 <+308>:   mov    rsi,QWORD PTR [rax+0x18]
   0x00007ffff7c8cef8 <+312>:   mov    rdx,QWORD PTR [rax+0x20]
   0x00007ffff7c8cefc <+316>:   sub    rdx,rsi
   0x00007ffff7c8ceff <+319>:   sar    rdx,0x2
   0x00007ffff7c8cf03 <+323>:   call   0x7ffff7c861a0 <__GI__IO_wdo_write>
   0x00007ffff7c8cf08 <+328>:   cmp    eax,0xffffffff
   0x00007ffff7c8cf0b <+331>:   je     0x7ffff7c8cecc <_IO_new_file_overflow+268>
   0x00007ffff7c8cf0d <+333>:   mov    rdx,QWORD PTR [rbp+0x28]
   0x00007ffff7c8cf11 <+337>:   jmp    0x7ffff7c8ce00 <_IO_new_file_overflow+64>
   0x00007ffff7c8cf16 <+342>:   cs nop WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8cf20 <+352>:   mov    rdx,QWORD PTR [rbp+0x38]
   0x00007ffff7c8cf24 <+356>:   movq   xmm0,rdx
   0x00007ffff7c8cf29 <+361>:   mov    rcx,rdx
   0x00007ffff7c8cf2c <+364>:   punpcklqdq xmm0,xmm0
   0x00007ffff7c8cf30 <+368>:   movups XMMWORD PTR [rbp+0x8],xmm0
   0x00007ffff7c8cf34 <+372>:   jmp    0x7ffff7c8ce57 <_IO_new_file_overflow+151>
   0x00007ffff7c8cf39 <+377>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8cf40 <+384>:   sub    rdx,rsi
   0x00007ffff7c8cf43 <+387>:   mov    rdi,rbp
   0x00007ffff7c8cf46 <+390>:   call   0x7ffff7c8c930 <_IO_new_do_write>
   0x00007ffff7c8cf4b <+395>:   cmp    eax,0xffffffff
   0x00007ffff7c8cf4e <+398>:   jne    0x7ffff7c8cf0d <_IO_new_file_overflow+333>
   0x00007ffff7c8cf50 <+400>:   jmp    0x7ffff7c8cecc <_IO_new_file_overflow+268>
   0x00007ffff7c8cf55 <+405>:   nop    DWORD PTR [rax]
   0x00007ffff7c8cf58 <+408>:   mov    rdi,rbp
   0x00007ffff7c8cf5b <+411>:   call   0x7ffff7c8dc90 <__GI__IO_doallocbuf>
   0x00007ffff7c8cf60 <+416>:   mov    rdx,QWORD PTR [rbp+0x38]
   0x00007ffff7c8cf64 <+420>:   mov    eax,DWORD PTR [rbp+0x0]
   0x00007ffff7c8cf67 <+423>:   movq   xmm0,rdx
   0x00007ffff7c8cf6c <+428>:   mov    QWORD PTR [rbp+0x18],rdx
   0x00007ffff7c8cf70 <+432>:   punpcklqdq xmm0,xmm0
   0x00007ffff7c8cf74 <+436>:   movups XMMWORD PTR [rbp+0x8],xmm0
   0x00007ffff7c8cf78 <+440>:   jmp    0x7ffff7c8ce3d <_IO_new_file_overflow+125>
   0x00007ffff7c8cf7d <+445>:   nop    DWORD PTR [rax]
   0x00007ffff7c8cf80 <+448>:   mov    r12,QWORD PTR [rbp+0x10]
   0x00007ffff7c8cf84 <+452>:   mov    rdi,rbp
   0x00007ffff7c8cf87 <+455>:   sub    r12,rdx
   0x00007ffff7c8cf8a <+458>:   call   0x7ffff7c8d7c0 <__GI__IO_free_backup_area>
   0x00007ffff7c8cf8f <+463>:   mov    rdx,QWORD PTR [rbp+0x18]
   0x00007ffff7c8cf93 <+467>:   mov    rsi,r12
   0x00007ffff7c8cf96 <+470>:   neg    rsi
   0x00007ffff7c8cf99 <+473>:   mov    rcx,rdx
   0x00007ffff7c8cf9c <+476>:   sub    rcx,QWORD PTR [rbp+0x38]
   0x00007ffff7c8cfa0 <+480>:   mov    rax,rcx
   0x00007ffff7c8cfa3 <+483>:   neg    rax
   0x00007ffff7c8cfa6 <+486>:   cmp    rcx,r12
   0x00007ffff7c8cfa9 <+489>:   cmova  rax,rsi
   0x00007ffff7c8cfad <+493>:   add    rdx,rax
   0x00007ffff7c8cfb0 <+496>:   mov    eax,DWORD PTR [rbp+0x0]
   0x00007ffff7c8cfb3 <+499>:   jmp    0x7ffff7c8ce46 <_IO_new_file_overflow+134>
   0x00007ffff7c8cfb8 <+504>:   nop    DWORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8cfc0 <+512>:   or     eax,0x20
   0x00007ffff7c8cfc3 <+515>:   mov    DWORD PTR [rdi],eax
   0x00007ffff7c8cfc5 <+517>:   mov    rax,QWORD PTR [rip+0x18ce44]        # 0x7ffff7e19e10
   0x00007ffff7c8cfcc <+524>:   mov    DWORD PTR fs:[rax],0x9
   0x00007ffff7c8cfd3 <+531>:   mov    eax,0xffffffff
   0x00007ffff7c8cfd8 <+536>:   jmp    0x7ffff7c8ce26 <_IO_new_file_overflow+102>
End of assembler dump.

回到调试

1
2
3
4
5
6
7
8
0x7ffff7c8cdc0 <_IO_file_overflow>        endbr64
0x7ffff7c8cdc4 <_IO_file_overflow+4>      push   r12
0x7ffff7c8cdc6 <_IO_file_overflow+6>      push   rbp
0x7ffff7c8cdc7 <_IO_file_overflow+7>      mov    rbp, rdi                 RBP => 0x5555555592a0 ◂— 0xfbad2488
0x7ffff7c8cdca <_IO_file_overflow+10>     push   rbx
0x7ffff7c8cdcb <_IO_file_overflow+11>     mov    eax, dword ptr [rdi]     EAX, [0x5555555592a0] => 0xfbad2488
0x7ffff7c8cdcd <_IO_file_overflow+13>     test   al, 8                    0x88 & 0x8     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x7ffff7c8cdcf <_IO_file_overflow+15>   ✘ jne    _IO_file_overflow+512       <_IO_file_overflow+512>

这里先保存栈帧，然后检查_flags，判断文件是否可写，（笔者这里demo写的时候忘记改文件打开模式了，所以不可写，直接返回了，改一下后重新快进到这一步）不可写则返回（<_IO_file_overflow+512>后续执行就返回了），可写则继续

1
2
3
4
5
6
7
8
9
10
0x7ffff7c8cdd5 <_IO_file_overflow+21>     mov    ebx, esi                        EBX => 0xffffffff
0x7ffff7c8cdd7 <_IO_file_overflow+23>     mov    rsi, qword ptr [rdi + 0x20]     RSI, [0x5555555592c0] => 0
0x7ffff7c8cddb <_IO_file_overflow+27>     test   ah, 8                           0x24 & 0x8     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8cdde <_IO_file_overflow+30>   ✔ je     _IO_file_overflow+112       <_IO_file_overflow+112>
    ↓
0x7ffff7c8ce30 <_IO_file_overflow+112>    test   rsi, rsi                        0 & 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8ce33 <_IO_file_overflow+115>  ✔ je     _IO_file_overflow+408       <_IO_file_overflow+408>
    ↓
0x7ffff7c8cf58 <_IO_file_overflow+408>    mov    rdi, rbp                        RDI => 0x5555555592a0 ◂— 0xfbad2484
0x7ffff7c8cf5b <_IO_file_overflow+411>    call   _IO_doallocbuf              <_IO_doallocbuf>

这里先判断_flags状态，还未准备好写入，然后判断[rdi + 0x20]即_IO_write_base是否为空，为空则调用_IO_doallocbuf来分配缓冲区
这里_IO_doallocbuf的流程在fread就分析过了，不再赘述，直接看返回后结构体的状态

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *_IO_list_all
$1 = {
  file = {
    _flags = -72539004,
    _IO_read_ptr = 0x0,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x5555555594b0 "",
    _IO_buf_end = 0x55555555a4b0 "",
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = -1,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
pwndbg> heap
Allocated chunk | PREV_INUSE
Addr: 0x555555559000
Size: 0x290 (with flag bits: 0x291)

Allocated chunk | PREV_INUSE
Addr: 0x555555559290
Size: 0x1e0 (with flag bits: 0x1e1)

Allocated chunk | PREV_INUSE
Addr: 0x555555559470
Size: 0x30 (with flag bits: 0x31)

Allocated chunk | PREV_INUSE
Addr: 0x5555555594a0
Size: 0x1010 (with flag bits: 0x1011)

Top chunk | PREV_INUSE
Addr: 0x55555555a4b0
Size: 0x1fb50 (with flag bits: 0x1fb51)

分配好了大小0x1000的chunk作为缓冲区，并设置好了_IO_buf_base和_IO_buf_end指针
然后设置了read三元组（_IO_read_base,_IO_read_ptr,_IO_read_end）为_IO_buf_base

1
2
3
4
5
6
7
0x7ffff7c8cf60 <_IO_file_overflow+416>    mov    rdx, qword ptr [rbp + 0x38]     RDX, [0x5555555592d8] => 0x5555555594b0 ◂— 0
0x7ffff7c8cf64 <_IO_file_overflow+420>    mov    eax, dword ptr [rbp]            EAX, [0x5555555592a0] => 0xfbad2484
0x7ffff7c8cf67 <_IO_file_overflow+423>    movq   xmm0, rdx                       XMM0 => 0x5555555594b0 ◂— 0
0x7ffff7c8cf6c <_IO_file_overflow+428>    mov    qword ptr [rbp + 0x18], rdx     [0x5555555592b8] <= 0x5555555594b0 ◂— 0
0x7ffff7c8cf70 <_IO_file_overflow+432>    punpcklqdq xmm0, xmm0
0x7ffff7c8cf74 <_IO_file_overflow+436>    movups xmmword ptr [rbp + 8], xmm0
0x7ffff7c8cf78 <_IO_file_overflow+440>    jmp    _IO_file_overflow+125       <_IO_file_overflow+125>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *_IO_list_all
$2 = {
  file = {
    _flags = -72539004,
    _IO_read_ptr = 0x5555555594b0 "",
    _IO_read_end = 0x5555555594b0 "",
    _IO_read_base = 0x5555555594b0 "",
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x5555555594b0 "",
    _IO_buf_end = 0x55555555a4b0 "",
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = -1,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

可以看到都设置为了_IO_buf_base
后续再判断_flags位

1
2
0x7ffff7c8ce3d <_IO_file_overflow+125>    test   ah, 1                           0x24 & 0x1     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8ce40 <_IO_file_overflow+128>  ✘ jne    _IO_file_overflow+448       <_IO_file_overflow+448>

如果是用户提供的缓冲区则跳转到_IO_file_overflow+448

1
2
3
4
0x00007ffff7c8cf80 <+448>:   mov    r12,QWORD PTR [rbp+0x10]
0x00007ffff7c8cf84 <+452>:   mov    rdi,rbp
0x00007ffff7c8cf87 <+455>:   sub    r12,rdx
0x00007ffff7c8cf8a <+458>:   call   0x7ffff7c8d7c0 <__GI__IO_free_backup_area>

这里是调用函数清理backup区域。显然这里的缓冲区并不是用户提供的，而是malloc分配的，所以不会跳转
后续则是

1
2
3
0x7ffff7c8ce46 <_IO_file_overflow+134>    mov    rsi, qword ptr [rbp + 0x40]     RSI, [0x5555555592e0] => 0x55555555a4b0 ◂— 0
0x7ffff7c8ce4a <_IO_file_overflow+138>    cmp    rsi, rdx                        0x55555555a4b0 - 0x5555555594b0     EFLAGS => 0x206 [ cf PF af zf sf IF df of ac ]
0x7ffff7c8ce4d <_IO_file_overflow+141>  ✘ je     _IO_file_overflow+352       <_IO_file_overflow+352>

验证_IO_buf_end是否等于_IO_buf_base,确保缓冲区的分配
接着往下走

1
2
3
4
5
6
7
0x7ffff7c8ce53 <_IO_file_overflow+147>    mov    rcx, qword ptr [rbp + 0x10]     RCX, [0x5555555592b0] => 0x5555555594b0 ◂— 0
0x7ffff7c8ce57 <_IO_file_overflow+151>    mov    qword ptr [rbp + 8], rcx        [0x5555555592a8] <= 0x5555555594b0 ◂— 0
0x7ffff7c8ce5b <_IO_file_overflow+155>    mov    qword ptr [rbp + 0x18], rcx     [0x5555555592b8] <= 0x5555555594b0 ◂— 0
0x7ffff7c8ce5f <_IO_file_overflow+159>    mov    ecx, eax                        ECX => 0xfbad2484
0x7ffff7c8ce61 <_IO_file_overflow+161>    or     ch, 8                           CH => 44 (0x24 | 0x8)
0x7ffff7c8ce64 <_IO_file_overflow+164>    mov    qword ptr [rbp + 0x30], rsi     [0x5555555592d0] <= 0x55555555a4b0 ◂— 0
0x7ffff7c8ce68 <_IO_file_overflow+168>    mov    rsi, rdx                        RSI => 0x5555555594b0 ◂— 0

这里rcx是[rbp + 0x10]也就是_IO_read_end，将其赋给_IO_read_ptr和_IO_read_base. rsi是_IO_buf_end，这里也就是把_IO_write_end设置成了_IO_buf_end，rdx是_IO_buf_base，再往下

1
2
3
4
0x7ffff7c8ce6b <_IO_file_overflow+171>:   mov    DWORD PTR [rbp+0x0],ecx
0x7ffff7c8ce6e <_IO_file_overflow+174>:   mov    ecx,DWORD PTR [rbp+0xc0]
0x7ffff7c8ce74 <_IO_file_overflow+180>:   mov    QWORD PTR [rbp+0x28],rdx
0x7ffff7c8ce78 <_IO_file_overflow+184>    mov    qword ptr [rbp + 0x20], rdx     [0x5555555592c0] <= 0x5555555594b0 ◂— 0

这里设置_flags，然后保存_mode到ecx（[rbp+0xc0]即偏移0xc0是_mode域），然后将_IO_write_base和_IO_write_ptr设置为_IO_buf_base

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *_IO_list_all
$4 = {
  file = {
    _flags = -72536956,
    _IO_read_ptr = 0x5555555594b0 "",
    _IO_read_end = 0x5555555594b0 "",
    _IO_read_base = 0x5555555594b0 "",
    _IO_write_base = 0x5555555594b0 "",
    _IO_write_ptr = 0x5555555594b0 "",
    _IO_write_end = 0x55555555a4b0 "",
    _IO_buf_base = 0x5555555594b0 "",
    _IO_buf_end = 0x55555555a4b0 "",
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = -1,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

可以看到确实设置好了
接着往下走

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0x7ffff7c8ce7c <_IO_file_overflow+188>    test   ecx, ecx                        0xffffffff & 0xffffffff     EFLAGS => 0x286 [ cf PF af zf SF IF df of ac ]
0x7ffff7c8ce7e <_IO_file_overflow+190>  ✘ jg     _IO_file_overflow+45        <_IO_file_overflow+45>

0x7ffff7c8ce84 <_IO_file_overflow+196>    test   eax, 0x202                      0xfbad2484 & 0x202     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8ce89 <_IO_file_overflow+201>  ✔ je     _IO_file_overflow+45        <_IO_file_overflow+45>
    ↓
0x7ffff7c8cded <_IO_file_overflow+45>     cmp    ebx, -1                         0xffffffff - -0x1     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8cdf0 <_IO_file_overflow+48>   ✔ je     _IO_file_overflow+220       <_IO_file_overflow+220>
    ↓
0x7ffff7c8ce9c <_IO_file_overflow+220>    pop    rbx          RBX => 32
0x7ffff7c8ce9d <_IO_file_overflow+221>    mov    rdi, rbp     RDI => 0x5555555592a0 ◂— 0xfbad2c84
0x7ffff7c8cea0 <_IO_file_overflow+224>    sub    rdx, rsi     RDX => 0 (0x5555555594b0 - 0x5555555594b0)
0x7ffff7c8cea3 <_IO_file_overflow+227>    pop    rbp          RBP => 0x5555555592a0
0x7ffff7c8cea4 <_IO_file_overflow+228>    pop    r12          R12 => 0xd68
0x7ffff7c8cea6 <_IO_file_overflow+230>    jmp    _IO_do_write                <_IO_do_write>

先检查ecx也就是_mode是否大于0（是否被设置为了某种读写模式），这里我们_mode是-1，所以不跳转，然后再判断_flags的状态（0x200 = _IO_NO_WRITES，0x2 = _IO_CURRENTLY_PUTTING，je判断，意味着当前不是正在输出，也没禁止写入），跳转到<_IO_file_overflow+45>，判断确定可以写入之后，调用_IO_do_write函数来系统调用write输出fp->_IO_write_ptr到fp->_IO_write_base之间的内容，输出完后刷新缓冲区指针

1
2
3
4
5
6
0x7ffff7c8c930 <_IO_do_write>             endbr64
0x7ffff7c8c934 <_IO_do_write+4>           xor    eax, eax     EAX => 0
0x7ffff7c8c936 <_IO_do_write+6>           test   rdx, rdx     0 & 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8c939 <_IO_do_write+9>         ✘ jne    _IO_do_write+16             <_IO_do_write+16>

0x7ffff7c8c93b <_IO_do_write+11>          ret                                <_IO_file_xsputn+213>

我们此时_IO_write_ptr == _IO_write_base，不需要输出，缓冲区也不需要刷新，故而_IO_do_write提前返回，再接着往下

1
2
3
4
5
0x7ffff7c8b6de <_IO_file_xsputn+222>    mov    rcx, qword ptr [rbp + 0x40]     RCX, [0x5555555592e0] => 0x55555555a4b0 ◂— 0
0x7ffff7c8b6e2 <_IO_file_xsputn+226>    sub    rcx, qword ptr [rbp + 0x38]     RCX => 0x1000 (0x55555555a4b0 - 0x5555555594b0)
0x7ffff7c8b6e6 <_IO_file_xsputn+230>    mov    r8, r15                         R8 => 0x20
0x7ffff7c8b6e9 <_IO_file_xsputn+233>    cmp    rcx, 0x7f                       0x1000 - 0x7f     EFLAGS => 0x216 [ cf PF AF zf sf IF df of ac ]
0x7ffff7c8b6ed <_IO_file_xsputn+237>  ✘ jbe    _IO_file_xsputn+250         <_IO_file_xsputn+250>

然后计算_IO_buf_end - _IO_buf_base，其大于0x7f，继续往下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0x7ffff7c8b6ef <_IO_file_xsputn+239>    mov    rax, r15      RAX => 0x20
0x7ffff7c8b6f2 <_IO_file_xsputn+242>    xor    edx, edx      EDX => 0
0x7ffff7c8b6f4 <_IO_file_xsputn+244>    div    rcx
0x7ffff7c8b6f7 <_IO_file_xsputn+247>:   sub    r8,rdx
0x7ffff7c8b6fa <_IO_file_xsputn+250>    test   r8, r8     0 & 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8b6fd <_IO_file_xsputn+253>  ✘ jne    _IO_file_xsputn+336         <_IO_file_xsputn+336>

0x7ffff7c8b6ff <_IO_file_xsputn+255>    mov    r12, rbx     R12 => 0x20
0x7ffff7c8b702 <_IO_file_xsputn+258>    test   r15, r15     0x20 & 0x20     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x7ffff7c8b705 <_IO_file_xsputn+261>  ✘ je     _IO_file_xsputn+110         <_IO_file_xsputn+110>

0x7ffff7c8b70b <_IO_file_xsputn+267>    lea    rsi, [r13 + r8]     RSI => 0x555555559480 ◂— 'wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww'
0x7ffff7c8b710 <_IO_file_xsputn+272>    mov    rdx, r15            RDX => 0x20
0x7ffff7c8b713 <_IO_file_xsputn+275>    mov    rdi, rbp            RDI => 0x5555555592a0 ◂— 0xfbad2c84
0x7ffff7c8b716 <_IO_file_xsputn+278>    call   _IO_default_xsputn          <_IO_default_xsputn>

这里div rcx，也就是将0x20除以0x1000的余数0x20存储到了rdx，经过一系列判断后调用_IO_default_xsputn函数

1
2
0x7ffff7c8ddc4 <_IO_default_xsputn+4>     test   rdx, rdx     0x20 & 0x20     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x7ffff7c8ddc7 <_IO_default_xsputn+7>   ✘ je     _IO_default_xsputn+480      <_IO_default_xsputn+480>

仍然是检查写入量不为0，后续一些列判断后调用了__mempcpy_avx_unaligned_erms函数（mempcpy函数的优化实现）

1
► 0x7ffff7da0780 <__mempcpy_avx_unaligned_erms>       endbr64

将数据写入缓冲区中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *_IO_list_all
$2 = {
  file = {
    _flags = -72536956,
    _IO_read_ptr = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_read_end = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_read_base = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_write_base = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_write_ptr = 0x5555555594d0 "",
    _IO_write_end = 0x55555555a4b0 "",
    _IO_buf_base = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_buf_end = 0x55555555a4b0 "",
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = -1,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

可以看到_IO_write_ptr正好是移动了0x20，再看缓冲区

1
2
3
4
5
pwndbg> x/8gx 0x5555555594a0
0x5555555594a0: 0x0000000000000000      0x0000000000001011
0x5555555594b0: 0x7777777777777777      0x7777777777777777
0x5555555594c0: 0x7777777777777777      0x7777777777777777
0x5555555594d0: 0x0000000000000000      0x0000000000000000

可以看到数据已经读入
程序结束后，我们打开测试文件看到数据已经写入到了文件中
笔者就产生了疑惑：这里并没有系统调用write函数，数据只是进入了缓冲区，是如何写入文件的呢？不急，在本博客0x06部分再分析。
我们先总结一下fwrite的流程：
首先判断输出缓冲区还有多少剩余，如果有剩余则将目标输出数据拷贝到输出缓冲区，如果输出缓冲区没有剩余（输出缓冲区未建立也是没有剩余）或输出缓冲区不够则调用_IO_OVERFLOW建立输出缓冲区或刷新输出缓冲区。输出缓冲区刷新后判断剩余的目标输出数据是否超过块的size（0x1000），如果超过块的size，则不通过输出缓冲区直接以块为单位，使用sys_write输出大块的目标数据到目标文件。余下或者小于块size的数据（我们这里0x20的数据便是这一行列）则调用_IO_default_xsputn将数据拷贝到输出缓冲区。

0x05 fclose函数

还是这个demo，加个fclose函数

1
2
3
4
5
6
7
8
9
10
11
12
#include<stdio.h>
#include<stdlib.h>

int main(){

    FILE*fp = fopen("test.txt","wb");
    char *ptr = malloc(0x20);
    memcpy(ptr,"wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww",0x20);
    fwrite(ptr, 1, 0x20, fp);
    fclose(fp);
    return 0;
}

在fclose下个断点，开始调试

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
pwndbg> disass
Dump of assembler code for function _IO_new_fclose:
Address range 0x7ffff7c7ec70 to 0x7ffff7c7ee46:
=> 0x00007ffff7c7ec70 <+0>:     endbr64
   0x00007ffff7c7ec74 <+4>:     push   r12
   0x00007ffff7c7ec76 <+6>:     push   rbp
   0x00007ffff7c7ec77 <+7>:     mov    rbp,rdi
   0x00007ffff7c7ec7a <+10>:    push   rbx
   0x00007ffff7c7ec7b <+11>:    mov    eax,DWORD PTR [rdi]
   0x00007ffff7c7ec7d <+13>:    test   ah,0x20
   0x00007ffff7c7ec80 <+16>:    jne    0x7ffff7c7ed30 <_IO_new_fclose+192>
   0x00007ffff7c7ec86 <+22>:    mov    edx,eax
   0x00007ffff7c7ec88 <+24>:    and    edx,0x8000
   0x00007ffff7c7ec8e <+30>:    je     0x7ffff7c7ed3d <_IO_new_fclose+205>
   0x00007ffff7c7ec94 <+36>:    shl    eax,0x1a
   0x00007ffff7c7ec97 <+39>:    sar    eax,0x1f
   0x00007ffff7c7ec9a <+42>:    mov    r12d,eax
   0x00007ffff7c7ec9d <+45>:    test   edx,edx
   0x00007ffff7c7ec9f <+47>:    jne    0x7ffff7c7ecb2 <_IO_new_fclose+66>
   0x00007ffff7c7eca1 <+49>:    mov    rdi,QWORD PTR [rbp+0x88]
   0x00007ffff7c7eca8 <+56>:    sub    DWORD PTR [rdi+0x4],0x1
   0x00007ffff7c7ecac <+60>:    je     0x7ffff7c7eda0 <_IO_new_fclose+304>
   0x00007ffff7c7ecb2 <+66>:    mov    rbx,QWORD PTR [rbp+0xd8]
   0x00007ffff7c7ecb9 <+73>:    lea    rdx,[rip+0x197d40]        # 0x7ffff7e16a00 <_IO_helper_jumps>
   0x00007ffff7c7ecc0 <+80>:    lea    rax,[rip+0x198aa1]        # 0x7ffff7e17768
   0x00007ffff7c7ecc7 <+87>:    sub    rax,rdx
   0x00007ffff7c7ecca <+90>:    mov    rcx,rbx
   0x00007ffff7c7eccd <+93>:    sub    rcx,rdx
   0x00007ffff7c7ecd0 <+96>:    cmp    rax,rcx
   0x00007ffff7c7ecd3 <+99>:    jbe    0x7ffff7c7ee10 <_IO_new_fclose+416>
   0x00007ffff7c7ecd9 <+105>:   xor    esi,esi
   0x00007ffff7c7ecdb <+107>:   mov    rdi,rbp
   0x00007ffff7c7ecde <+110>:   call   QWORD PTR [rbx+0x10]
   0x00007ffff7c7ece1 <+113>:   mov    eax,DWORD PTR [rbp+0xc0]
   0x00007ffff7c7ece7 <+119>:   test   eax,eax
   0x00007ffff7c7ece9 <+121>:   jg     0x7ffff7c7edc0 <_IO_new_fclose+336>
   0x00007ffff7c7ecef <+127>:   cmp    QWORD PTR [rbp+0x48],0x0
   0x00007ffff7c7ecf4 <+132>:   je     0x7ffff7c7ecfe <_IO_new_fclose+142>
   0x00007ffff7c7ecf6 <+134>:   mov    rdi,rbp
   0x00007ffff7c7ecf9 <+137>:   call   0x7ffff7c8d7c0 <__GI__IO_free_backup_area>
   0x00007ffff7c7ecfe <+142>:   cmp    rbp,QWORD PTR [rip+0x19b273]        # 0x7ffff7e19f78
   0x00007ffff7c7ed05 <+149>:   sete   al
   0x00007ffff7c7ed08 <+152>:   cmp    rbp,QWORD PTR [rip+0x19b1e1]        # 0x7ffff7e19ef0
   0x00007ffff7c7ed0f <+159>:   sete   dl
   0x00007ffff7c7ed12 <+162>:   or     al,dl
   0x00007ffff7c7ed14 <+164>:   jne    0x7ffff7c7ed27 <_IO_new_fclose+183>
   0x00007ffff7c7ed16 <+166>:   cmp    rbp,QWORD PTR [rip+0x19b16b]        # 0x7ffff7e19e88
   0x00007ffff7c7ed1d <+173>:   je     0x7ffff7c7ed27 <_IO_new_fclose+183>
   0x00007ffff7c7ed1f <+175>:   mov    rdi,rbp
   0x00007ffff7c7ed22 <+178>:   call   0x7ffff7c28370 <free@plt>
   0x00007ffff7c7ed27 <+183>:   mov    eax,r12d
   0x00007ffff7c7ed2a <+186>:   pop    rbx
   0x00007ffff7c7ed2b <+187>:   pop    rbp
   0x00007ffff7c7ed2c <+188>:   pop    r12
   0x00007ffff7c7ed2e <+190>:   ret
   0x00007ffff7c7ed2f <+191>:   nop
   0x00007ffff7c7ed30 <+192>:   call   0x7ffff7c8d2b0 <__GI__IO_un_link>
   0x00007ffff7c7ed35 <+197>:   mov    eax,DWORD PTR [rbp+0x0]
   0x00007ffff7c7ed38 <+200>:   test   ah,0x80
   0x00007ffff7c7ed3b <+203>:   jne    0x7ffff7c7ed76 <_IO_new_fclose+262>
   0x00007ffff7c7ed3d <+205>:   mov    rbx,QWORD PTR fs:0x10
   0x00007ffff7c7ed46 <+214>:   mov    rdi,QWORD PTR [rbp+0x88]
   0x00007ffff7c7ed4d <+221>:   cmp    QWORD PTR [rdi+0x8],rbx
   0x00007ffff7c7ed51 <+225>:   je     0x7ffff7c7ed72 <_IO_new_fclose+258>
   0x00007ffff7c7ed53 <+227>:   xor    eax,eax
   0x00007ffff7c7ed55 <+229>:   mov    edx,0x1
   0x00007ffff7c7ed5a <+234>:   lock cmpxchg DWORD PTR [rdi],edx
   0x00007ffff7c7ed5e <+238>:   jne    0x7ffff7c7ee30 <_IO_new_fclose+448>
   0x00007ffff7c7ed64 <+244>:   mov    rdi,QWORD PTR [rbp+0x88]
   0x00007ffff7c7ed6b <+251>:   mov    eax,DWORD PTR [rbp+0x0]
   0x00007ffff7c7ed6e <+254>:   mov    QWORD PTR [rdi+0x8],rbx
   0x00007ffff7c7ed72 <+258>:   add    DWORD PTR [rdi+0x4],0x1
   0x00007ffff7c7ed76 <+262>:   mov    edx,eax
   0x00007ffff7c7ed78 <+264>:   and    edx,0x8000
   0x00007ffff7c7ed7e <+270>:   test   ah,0x20
   0x00007ffff7c7ed81 <+273>:   je     0x7ffff7c7ec94 <_IO_new_fclose+36>
   0x00007ffff7c7ed87 <+279>:   mov    rdi,rbp
   0x00007ffff7c7ed8a <+282>:   call   0x7ffff7c8be90 <_IO_new_file_close_it>
   0x00007ffff7c7ed8f <+287>:   mov    edx,DWORD PTR [rbp+0x0]
   0x00007ffff7c7ed92 <+290>:   mov    r12d,eax
   0x00007ffff7c7ed95 <+293>:   and    edx,0x8000
   0x00007ffff7c7ed9b <+299>:   jmp    0x7ffff7c7ec9d <_IO_new_fclose+45>
   0x00007ffff7c7eda0 <+304>:   mov    QWORD PTR [rdi+0x8],0x0
   0x00007ffff7c7eda8 <+312>:   xchg   DWORD PTR [rdi],edx
   0x00007ffff7c7edaa <+314>:   cmp    edx,0x1
   0x00007ffff7c7edad <+317>:   jle    0x7ffff7c7ecb2 <_IO_new_fclose+66>
   0x00007ffff7c7edb3 <+323>:   call   0x7ffff7c91300 <__GI___lll_lock_wake_private>
   0x00007ffff7c7edb8 <+328>:   jmp    0x7ffff7c7ecb2 <_IO_new_fclose+66>
   0x00007ffff7c7edbd <+333>:   nop    DWORD PTR [rax]
   0x00007ffff7c7edc0 <+336>:   mov    rbx,QWORD PTR [rbp+0x98]
   0x00007ffff7c7edc7 <+343>:   xor    eax,eax
   0x00007ffff7c7edc9 <+345>:   mov    edx,0x1
   0x00007ffff7c7edce <+350>:   lock cmpxchg DWORD PTR [rip+0x19cc5a],edx        # 0x7ffff7e1ba30 <__gconv_lock>
   0x00007ffff7c7edd6 <+358>:   jne    0x7ffff7c7ee20 <_IO_new_fclose+432>
   0x00007ffff7c7edd8 <+360>:   mov    rdi,QWORD PTR [rbx]
   0x00007ffff7c7eddb <+363>:   call   0x7ffff7c2b990 <__gconv_release_step>
   0x00007ffff7c7ede0 <+368>:   mov    rdi,QWORD PTR [rbx+0x38]
   0x00007ffff7c7ede4 <+372>:   call   0x7ffff7c2b990 <__gconv_release_step>
   0x00007ffff7c7ede9 <+377>:   xor    eax,eax
   0x00007ffff7c7edeb <+379>:   xchg   DWORD PTR [rip+0x19cc3f],eax        # 0x7ffff7e1ba30 <__gconv_lock>
   0x00007ffff7c7edf1 <+385>:   cmp    eax,0x1
   0x00007ffff7c7edf4 <+388>:   jle    0x7ffff7c7ecfe <_IO_new_fclose+142>
   0x00007ffff7c7edfa <+394>:   lea    rdi,[rip+0x19cc2f]        # 0x7ffff7e1ba30 <__gconv_lock>
   0x00007ffff7c7ee01 <+401>:   call   0x7ffff7c91300 <__GI___lll_lock_wake_private>
   0x00007ffff7c7ee06 <+406>:   jmp    0x7ffff7c7ecfe <_IO_new_fclose+142>
   0x00007ffff7c7ee0b <+411>:   nop    DWORD PTR [rax+rax*1+0x0]
   0x00007ffff7c7ee10 <+416>:   call   0x7ffff7c89ef0 <_IO_vtable_check>
   0x00007ffff7c7ee15 <+421>:   jmp    0x7ffff7c7ecd9 <_IO_new_fclose+105>
   0x00007ffff7c7ee1a <+426>:   nop    WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c7ee20 <+432>:   lea    rdi,[rip+0x19cc09]        # 0x7ffff7e1ba30 <__gconv_lock>
   0x00007ffff7c7ee27 <+439>:   call   0x7ffff7c91230 <__GI___lll_lock_wait_private>
   0x00007ffff7c7ee2c <+444>:   jmp    0x7ffff7c7edd8 <_IO_new_fclose+360>
   0x00007ffff7c7ee2e <+446>:   xchg   ax,ax
   0x00007ffff7c7ee30 <+448>:   call   0x7ffff7c91230 <__GI___lll_lock_wait_private>
   0x00007ffff7c7ee35 <+453>:   jmp    0x7ffff7c7ed64 <_IO_new_fclose+244>
   0x00007ffff7c7ee3a <+458>:   endbr64
   0x00007ffff7c7ee3e <+462>:   mov    r12,rax
   0x00007ffff7c7ee41 <+465>:   jmp    0x7ffff7c28fff <_IO_new_fclose.cold>
Address range 0x7ffff7c28fff to 0x7ffff7c29036:
   0x00007ffff7c28fff <-351345>:        test   DWORD PTR [rbp+0x0],0x8000
   0x00007ffff7c29006 <-351338>:        jne    0x7ffff7c2902e <_IO_new_fclose-351298>
   0x00007ffff7c29008 <-351336>:        mov    rdi,QWORD PTR [rbp+0x88]
   0x00007ffff7c2900f <-351329>:        mov    eax,DWORD PTR [rdi+0x4]
   0x00007ffff7c29012 <-351326>:        sub    eax,0x1
   0x00007ffff7c29015 <-351323>:        mov    DWORD PTR [rdi+0x4],eax
   0x00007ffff7c29018 <-351320>:        jne    0x7ffff7c2902e <_IO_new_fclose-351298>
   0x00007ffff7c2901a <-351318>:        mov    QWORD PTR [rdi+0x8],0x0
   0x00007ffff7c29022 <-351310>:        xchg   DWORD PTR [rdi],eax
   0x00007ffff7c29024 <-351308>:        sub    eax,0x1
   0x00007ffff7c29027 <-351305>:        jle    0x7ffff7c2902e <_IO_new_fclose-351298>
   0x00007ffff7c29029 <-351303>:        call   0x7ffff7c91300 <__GI___lll_lock_wake_private>
   0x00007ffff7c2902e <-351298>:        mov    rdi,r12
   0x00007ffff7c29031 <-351295>:        call   0x7ffff7c2a120 <_Unwind_Resume>
End of assembler dump.

_IO_new_fclose函数，往下走

1
2
3
4
5
6
7
8
9
0x7ffff7c7ec74 <fclose+4>      push   r12
0x7ffff7c7ec76 <fclose+6>      push   rbp
0x7ffff7c7ec77 <fclose+7>      mov    rbp, rdi                 RBP => 0x5555555592a0 ◂— 0xfbad2c84
0x7ffff7c7ec7a <fclose+10>     push   rbx
0x7ffff7c7ec7b <fclose+11>     mov    eax, dword ptr [rdi]     EAX, [0x5555555592a0] => 0xfbad2c84
0x7ffff7c7ec7d <fclose+13>     test   ah, 0x20                 0x2c & 0x20     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x7ffff7c7ec80 <fclose+16>   ✔ jne    fclose+192                  <fclose+192>
    ↓
0x7ffff7c7ed30 <fclose+192>    call   _IO_un_link                 <_IO_un_link>

test ah, 0x20：检测_flags相应位，判断文件流是否需要链表管理（_IO_IS_FILEBUF 标志），满足条件调用_IO_un_link函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
pwndbg> disass
Dump of assembler code for function __GI__IO_un_link:
=> 0x00007ffff7c8d070 <+0>:     push   r13
   0x00007ffff7c8d072 <+2>:     push   r12
   0x00007ffff7c8d074 <+4>:     lea    r12,[rip+0x18f9d5]        # 0x7ffff7e1ca50 <list_all_lock>
   0x00007ffff7c8d07b <+11>:    push   rbp
   0x00007ffff7c8d07c <+12>:    push   rbx
   0x00007ffff7c8d07d <+13>:    mov    rbx,rdi
   0x00007ffff7c8d080 <+16>:    sub    rsp,0x38
   0x00007ffff7c8d084 <+20>:    mov    rax,QWORD PTR fs:0x28
   0x00007ffff7c8d08d <+29>:    mov    QWORD PTR [rsp+0x28],rax
   0x00007ffff7c8d092 <+34>:    xor    eax,eax
   0x00007ffff7c8d094 <+36>:    mov    rbp,rsp
   0x00007ffff7c8d097 <+39>:    lea    rax,[rip+0xffffffffffffff42]        # 0x7ffff7c8cfe0 <flush_cleanup>
   0x00007ffff7c8d09e <+46>:    mov    QWORD PTR [rsp+0x8],0x0
   0x00007ffff7c8d0a7 <+55>:    mov    rdi,rbp
   0x00007ffff7c8d0aa <+58>:    mov    QWORD PTR [rsp],rax
   0x00007ffff7c8d0ae <+62>:    call   0x7ffff7c911c0 <__GI___libc_cleanup_push_defer>
   0x00007ffff7c8d0b3 <+67>:    mov    r13,QWORD PTR fs:0x10
   0x00007ffff7c8d0bc <+76>:    cmp    r13,QWORD PTR [rip+0x18f995]        # 0x7ffff7e1ca58 <list_all_lock+8>
   0x00007ffff7c8d0c3 <+83>:    je     0x7ffff7c8d0e1 <__GI__IO_un_link+113>
   0x00007ffff7c8d0c5 <+85>:    xor    eax,eax
   0x00007ffff7c8d0c7 <+87>:    mov    edx,0x1
   0x00007ffff7c8d0cc <+92>:    lock cmpxchg DWORD PTR [rip+0x18f97c],edx        # 0x7ffff7e1ca50 <list_all_lock>
   0x00007ffff7c8d0d4 <+100>:   jne    0x7ffff7c8d270 <__GI__IO_un_link+512>
   0x00007ffff7c8d0da <+106>:   mov    QWORD PTR [rip+0x18f977],r13        # 0x7ffff7e1ca58 <list_all_lock+8>
   0x00007ffff7c8d0e1 <+113>:   mov    edx,DWORD PTR [rip+0x18f96d]        # 0x7ffff7e1ca54 <list_all_lock+4>
   0x00007ffff7c8d0e7 <+119>:   mov    esi,DWORD PTR [rbx]
   0x00007ffff7c8d0e9 <+121>:   mov    QWORD PTR [rip+0x18f950],rbx        # 0x7ffff7e1ca40 <run_fp>
   0x00007ffff7c8d0f0 <+128>:   lea    eax,[rdx+0x1]
   0x00007ffff7c8d0f3 <+131>:   mov    DWORD PTR [rip+0x18f95b],eax        # 0x7ffff7e1ca54 <list_all_lock+4>
   0x00007ffff7c8d0f9 <+137>:   mov    eax,esi
   0x00007ffff7c8d0fb <+139>:   and    eax,0x8000
   0x00007ffff7c8d100 <+144>:   jne    0x7ffff7c8d1f8 <__GI__IO_un_link+392>
   0x00007ffff7c8d106 <+150>:   mov    r13,QWORD PTR fs:0x10
   0x00007ffff7c8d10f <+159>:   mov    rdi,QWORD PTR [rbx+0x88]
   0x00007ffff7c8d116 <+166>:   cmp    r13,QWORD PTR [rdi+0x8]
   0x00007ffff7c8d11a <+170>:   je     0x7ffff7c8d230 <__GI__IO_un_link+448>
   0x00007ffff7c8d120 <+176>:   mov    edx,0x1
   0x00007ffff7c8d125 <+181>:   lock cmpxchg DWORD PTR [rdi],edx
   0x00007ffff7c8d129 <+185>:   jne    0x7ffff7c8d297 <__GI__IO_un_link+551>
   0x00007ffff7c8d12f <+191>:   mov    esi,DWORD PTR [rbx]
   0x00007ffff7c8d131 <+193>:   mov    rdi,QWORD PTR [rbx+0x88]
   0x00007ffff7c8d138 <+200>:   mov    rcx,QWORD PTR [rip+0x18e541]        # 0x7ffff7e1b680 <_IO_list_all>
   0x00007ffff7c8d13f <+207>:   mov    eax,esi
   0x00007ffff7c8d141 <+209>:   add    DWORD PTR [rdi+0x4],0x1
   0x00007ffff7c8d145 <+213>:   mov    QWORD PTR [rdi+0x8],r13
   0x00007ffff7c8d149 <+217>:   and    eax,0x8000
   0x00007ffff7c8d14e <+222>:   test   rcx,rcx
   0x00007ffff7c8d151 <+225>:   je     0x7ffff7c8d167 <__GI__IO_un_link+247>
   0x00007ffff7c8d153 <+227>:   mov    rdx,QWORD PTR [rcx+0x68]
   0x00007ffff7c8d157 <+231>:   cmp    rbx,rcx
   0x00007ffff7c8d15a <+234>:   jne    0x7ffff7c8d21c <__GI__IO_un_link+428>
   0x00007ffff7c8d160 <+240>:   mov    QWORD PTR [rip+0x18e519],rdx        # 0x7ffff7e1b680 <_IO_list_all>
   0x00007ffff7c8d167 <+247>:   and    sil,0x7f
   0x00007ffff7c8d16b <+251>:   mov    DWORD PTR [rbx],esi
   0x00007ffff7c8d16d <+253>:   test   eax,eax
   0x00007ffff7c8d16f <+255>:   jne    0x7ffff7c8d196 <__GI__IO_un_link+294>
   0x00007ffff7c8d171 <+257>:   mov    rdi,QWORD PTR [rbx+0x88]
   0x00007ffff7c8d178 <+264>:   mov    eax,DWORD PTR [rdi+0x4]
   0x00007ffff7c8d17b <+267>:   sub    eax,0x1
   0x00007ffff7c8d17e <+270>:   mov    DWORD PTR [rdi+0x4],eax
   0x00007ffff7c8d181 <+273>:   jne    0x7ffff7c8d196 <__GI__IO_un_link+294>
   0x00007ffff7c8d183 <+275>:   mov    QWORD PTR [rdi+0x8],0x0
   0x00007ffff7c8d18b <+283>:   xchg   DWORD PTR [rdi],eax
   0x00007ffff7c8d18d <+285>:   cmp    eax,0x1
   0x00007ffff7c8d190 <+288>:   jg     0x7ffff7c8d28d <__GI__IO_un_link+541>
   0x00007ffff7c8d196 <+294>:   mov    eax,DWORD PTR [rip+0x18f8b8]        # 0x7ffff7e1ca54 <list_all_lock+4>
   0x00007ffff7c8d19c <+300>:   lea    edx,[rax-0x1]
   0x00007ffff7c8d19f <+303>:   mov    QWORD PTR [rip+0x18f896],0x0        # 0x7ffff7e1ca40 <run_fp>
   0x00007ffff7c8d1aa <+314>:   mov    DWORD PTR [rip+0x18f8a4],edx        # 0x7ffff7e1ca54 <list_all_lock+4>
   0x00007ffff7c8d1b0 <+320>:   test   edx,edx
   0x00007ffff7c8d1b2 <+322>:   jne    0x7ffff7c8d1ce <__GI__IO_un_link+350>
   0x00007ffff7c8d1b4 <+324>:   mov    QWORD PTR [rip+0x18f899],0x0        # 0x7ffff7e1ca58 <list_all_lock+8>
   0x00007ffff7c8d1bf <+335>:   xchg   DWORD PTR [rip+0x18f88b],edx        # 0x7ffff7e1ca50 <list_all_lock>
   0x00007ffff7c8d1c5 <+341>:   cmp    edx,0x1
   0x00007ffff7c8d1c8 <+344>:   jg     0x7ffff7c8d280 <__GI__IO_un_link+528>
   0x00007ffff7c8d1ce <+350>:   mov    rdi,rbp
   0x00007ffff7c8d1d1 <+353>:   call   0x7ffff7c91200 <__GI___libc_cleanup_pop_restore>
   0x00007ffff7c8d1d6 <+358>:   mov    rax,QWORD PTR [rsp+0x28]
   0x00007ffff7c8d1db <+363>:   sub    rax,QWORD PTR fs:0x28
   0x00007ffff7c8d1e4 <+372>:   jne    0x7ffff7c8d2a1 <__GI__IO_un_link+561>
   0x00007ffff7c8d1ea <+378>:   add    rsp,0x38
   0x00007ffff7c8d1ee <+382>:   pop    rbx
   0x00007ffff7c8d1ef <+383>:   pop    rbp
   0x00007ffff7c8d1f0 <+384>:   pop    r12
   0x00007ffff7c8d1f2 <+386>:   pop    r13
   0x00007ffff7c8d1f4 <+388>:   ret
   0x00007ffff7c8d1f5 <+389>:   nop    DWORD PTR [rax]
   0x00007ffff7c8d1f8 <+392>:   mov    rcx,QWORD PTR [rip+0x18e481]        # 0x7ffff7e1b680 <_IO_list_all>
   0x00007ffff7c8d1ff <+399>:   test   rcx,rcx
   0x00007ffff7c8d202 <+402>:   jne    0x7ffff7c8d153 <__GI__IO_un_link+227>
   0x00007ffff7c8d208 <+408>:   and    sil,0x7f
   0x00007ffff7c8d20c <+412>:   mov    DWORD PTR [rbx],esi
   0x00007ffff7c8d20e <+414>:   jmp    0x7ffff7c8d19f <__GI__IO_un_link+303>
   0x00007ffff7c8d210 <+416>:   cmp    rbx,rdx
   0x00007ffff7c8d213 <+419>:   je     0x7ffff7c8d250 <__GI__IO_un_link+480>
   0x00007ffff7c8d215 <+421>:   mov    rcx,rdx
   0x00007ffff7c8d218 <+424>:   mov    rdx,QWORD PTR [rdx+0x68]
   0x00007ffff7c8d21c <+428>:   test   rdx,rdx
   0x00007ffff7c8d21f <+431>:   jne    0x7ffff7c8d210 <__GI__IO_un_link+416>
   0x00007ffff7c8d221 <+433>:   jmp    0x7ffff7c8d167 <__GI__IO_un_link+247>
   0x00007ffff7c8d226 <+438>:   cs nop WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8d230 <+448>:   mov    rcx,QWORD PTR [rip+0x18e449]        # 0x7ffff7e1b680 <_IO_list_all>
   0x00007ffff7c8d237 <+455>:   add    DWORD PTR [rdi+0x4],0x1
   0x00007ffff7c8d23b <+459>:   test   rcx,rcx
   0x00007ffff7c8d23e <+462>:   jne    0x7ffff7c8d153 <__GI__IO_un_link+227>
   0x00007ffff7c8d244 <+468>:   and    sil,0x7f
   0x00007ffff7c8d248 <+472>:   mov    DWORD PTR [rbx],esi
   0x00007ffff7c8d24a <+474>:   jmp    0x7ffff7c8d178 <__GI__IO_un_link+264>
   0x00007ffff7c8d24f <+479>:   nop
   0x00007ffff7c8d250 <+480>:   mov    rdx,QWORD PTR [rbx+0x68]
   0x00007ffff7c8d254 <+484>:   and    sil,0x7f
   0x00007ffff7c8d258 <+488>:   add    rcx,0x68
   0x00007ffff7c8d25c <+492>:   mov    QWORD PTR [rcx],rdx
   0x00007ffff7c8d25f <+495>:   mov    DWORD PTR [rbx],esi
   0x00007ffff7c8d261 <+497>:   test   eax,eax
   0x00007ffff7c8d263 <+499>:   je     0x7ffff7c8d171 <__GI__IO_un_link+257>
   0x00007ffff7c8d269 <+505>:   jmp    0x7ffff7c8d196 <__GI__IO_un_link+294>
   0x00007ffff7c8d26e <+510>:   xchg   ax,ax
   0x00007ffff7c8d270 <+512>:   mov    rdi,r12
   0x00007ffff7c8d273 <+515>:   call   0x7ffff7c91230 <__GI___lll_lock_wait_private>
   0x00007ffff7c8d278 <+520>:   jmp    0x7ffff7c8d0da <__GI__IO_un_link+106>
   0x00007ffff7c8d27d <+525>:   nop    DWORD PTR [rax]
   0x00007ffff7c8d280 <+528>:   mov    rdi,r12
   0x00007ffff7c8d283 <+531>:   call   0x7ffff7c91300 <__GI___lll_lock_wake_private>
   0x00007ffff7c8d288 <+536>:   jmp    0x7ffff7c8d1ce <__GI__IO_un_link+350>
   0x00007ffff7c8d28d <+541>:   call   0x7ffff7c91300 <__GI___lll_lock_wake_private>
   0x00007ffff7c8d292 <+546>:   jmp    0x7ffff7c8d196 <__GI__IO_un_link+294>
   0x00007ffff7c8d297 <+551>:   call   0x7ffff7c91230 <__GI___lll_lock_wait_private>
   0x00007ffff7c8d29c <+556>:   jmp    0x7ffff7c8d12f <__GI__IO_un_link+191>
   0x00007ffff7c8d2a1 <+561>:   call   0x7ffff7d36550 <__stack_chk_fail>
End of assembler dump.

往下走
进行了一些有关线程锁的操作，然后再维护_IO_list_all链表：检查标志位是否包含_IO_LINKED标志，该标志的定义是#define _IO_LINKED 0x80，表示该结构体是否被链接到了_IO_list_all链表中。
如果没有_IO_LINKED标志（不在_IO_list_all链表中）或者_IO_list_all链表为空，则直接返回。
否则的话即表示结构体为_IO_list_all链表中某个节点，所要做的就是将这个节点取下来，接下来就是单链表的删除节点的操作，首先判断是不是_IO_list_all链表头，如果是的话直接将_IO_list_all指向_IO_list_all->file._chain就好了，如果不是链表头则遍历链表，找到该结构体，再将其取下。
最后返回之前设置_flags为~_IO_LINKED表示该结构体不在_IO_list_all链表中.我们看现在_IO_list_all

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
pwndbg> p *_IO_list_all
$2 = {
  file = {
    _flags = -72540026,
    _IO_read_ptr = 0x0,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x0,
    _IO_buf_end = 0x0,
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b780 <_IO_2_1_stdout_>,
    _fileno = 2,
    _flags2 = 0,
    _old_offset = -1,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x7ffff7e1ca60 <_IO_stdfile_2_lock>,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x7ffff7e1a8a0 <_IO_wide_data_2>,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = 0,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}
pwndbg> p _IO_list_all
$3 = (struct _IO_FILE_plus *) 0x7ffff7e1b6a0 <_IO_2_1_stderr_>

已经变回了_IO_2_1_stderr_
我们再看我们要关闭的结构体

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$4 = {
  file = {
    _flags = -72537084,
    _IO_read_ptr = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_read_end = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_read_base = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_write_base = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_write_ptr = 0x5555555594d0 "",
    _IO_write_end = 0x55555555a4b0 "",
    _IO_buf_base = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_buf_end = 0x55555555a4b0 "",
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = -1,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

其_chain域仍然指向_IO_2_1_stderr_，只是将_IO_list_all指针指向了_IO_2_1_stderr_
再往下走，接着经过一些检查后就是调用_IO_file_close_it函数

1
2
0x7ffff7c7ed87 <fclose+279>    mov    rdi, rbp        RDI => 0x5555555592a0 ◂— 0xfbad2c04
0x7ffff7c7ed8a <fclose+282>    call   _IO_file_close_it           <_IO_file_close_it>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
pwndbg> disass
Dump of assembler code for function _IO_new_file_close_it:
=> 0x00007ffff7c8be90 <+0>:     endbr64
   0x00007ffff7c8be94 <+4>:     push   r12
   0x00007ffff7c8be96 <+6>:     push   rbp
   0x00007ffff7c8be97 <+7>:     push   rbx
   0x00007ffff7c8be98 <+8>:     mov    r12d,DWORD PTR [rdi+0x70]
   0x00007ffff7c8be9c <+12>:    cmp    r12d,0xffffffff
   0x00007ffff7c8bea0 <+16>:    je     0x7ffff7c8bf8c <_IO_new_file_close_it+252>
   0x00007ffff7c8bea6 <+22>:    mov    eax,DWORD PTR [rdi]
   0x00007ffff7c8bea8 <+24>:    mov    rbx,rdi
   0x00007ffff7c8beab <+27>:    xor    ebp,ebp
   0x00007ffff7c8bead <+29>:    and    eax,0x808
   0x00007ffff7c8beb2 <+34>:    cmp    eax,0x800
   0x00007ffff7c8beb7 <+39>:    je     0x7ffff7c8bf98 <_IO_new_file_close_it+264>
   0x00007ffff7c8bebd <+45>:    mov    rdi,rbx
   0x00007ffff7c8bec0 <+48>:    xor    r12d,r12d
   0x00007ffff7c8bec3 <+51>:    call   0x7ffff7c8f230 <__GI__IO_unsave_markers>
   0x00007ffff7c8bec8 <+56>:    test   BYTE PTR [rbx+0x74],0x20
   0x00007ffff7c8becc <+60>:    jne    0x7ffff7c8bf03 <_IO_new_file_close_it+115>
   0x00007ffff7c8bece <+62>:    mov    r12,QWORD PTR [rbx+0xd8]
   0x00007ffff7c8bed5 <+69>:    lea    rdx,[rip+0x18ab24]        # 0x7ffff7e16a00 <_IO_helper_jumps>
   0x00007ffff7c8bedc <+76>:    lea    rax,[rip+0x18b885]        # 0x7ffff7e17768
   0x00007ffff7c8bee3 <+83>:    sub    rax,rdx
   0x00007ffff7c8bee6 <+86>:    mov    rcx,r12
   0x00007ffff7c8bee9 <+89>:    sub    rcx,rdx
   0x00007ffff7c8beec <+92>:    cmp    rax,rcx
   0x00007ffff7c8beef <+95>:    jbe    0x7ffff7c8bfe0 <_IO_new_file_close_it+336>
   0x00007ffff7c8bef5 <+101>:   mov    rdi,rbx
   0x00007ffff7c8bef8 <+104>:   call   QWORD PTR [r12+0x88]
   0x00007ffff7c8bf00 <+112>:   mov    r12d,eax
   0x00007ffff7c8bf03 <+115>:   mov    eax,DWORD PTR [rbx+0xc0]
   0x00007ffff7c8bf09 <+121>:   test   eax,eax
   0x00007ffff7c8bf0b <+123>:   jle    0x7ffff7c8bf47 <_IO_new_file_close_it+183>
   0x00007ffff7c8bf0d <+125>:   mov    rax,QWORD PTR [rbx+0xa0]
   0x00007ffff7c8bf14 <+132>:   cmp    QWORD PTR [rax+0x40],0x0
   0x00007ffff7c8bf19 <+137>:   je     0x7ffff7c8bf23 <_IO_new_file_close_it+147>
   0x00007ffff7c8bf1b <+139>:   mov    rdi,rbx
   0x00007ffff7c8bf1e <+142>:   call   0x7ffff7c84340 <__GI__IO_free_wbackup_area>
   0x00007ffff7c8bf23 <+147>:   xor    ecx,ecx
   0x00007ffff7c8bf25 <+149>:   xor    edx,edx
   0x00007ffff7c8bf27 <+151>:   xor    esi,esi
   0x00007ffff7c8bf29 <+153>:   mov    rdi,rbx
   0x00007ffff7c8bf2c <+156>:   call   0x7ffff7c83590 <__GI__IO_wsetb>
   0x00007ffff7c8bf31 <+161>:   mov    rax,QWORD PTR [rbx+0xa0]
   0x00007ffff7c8bf38 <+168>:   pxor   xmm0,xmm0
   0x00007ffff7c8bf3c <+172>:   movups XMMWORD PTR [rax],xmm0
   0x00007ffff7c8bf3f <+175>:   movups XMMWORD PTR [rax+0x10],xmm0
   0x00007ffff7c8bf43 <+179>:   movups XMMWORD PTR [rax+0x20],xmm0
   0x00007ffff7c8bf47 <+183>:   xor    ecx,ecx
   0x00007ffff7c8bf49 <+185>:   xor    edx,edx
   0x00007ffff7c8bf4b <+187>:   xor    esi,esi
   0x00007ffff7c8bf4d <+189>:   mov    rdi,rbx
   0x00007ffff7c8bf50 <+192>:   call   0x7ffff7c8dc20 <__GI__IO_setb>
   0x00007ffff7c8bf55 <+197>:   pxor   xmm0,xmm0
   0x00007ffff7c8bf59 <+201>:   mov    rdi,rbx
   0x00007ffff7c8bf5c <+204>:   movups XMMWORD PTR [rbx+0x8],xmm0
   0x00007ffff7c8bf60 <+208>:   movups XMMWORD PTR [rbx+0x18],xmm0
   0x00007ffff7c8bf64 <+212>:   movups XMMWORD PTR [rbx+0x28],xmm0
   0x00007ffff7c8bf68 <+216>:   call   0x7ffff7c8d2b0 <__GI__IO_un_link>
   0x00007ffff7c8bf6d <+221>:   test   r12d,r12d
   0x00007ffff7c8bf70 <+224>:   mov    DWORD PTR [rbx],0xfbad240c
   0x00007ffff7c8bf76 <+230>:   mov    DWORD PTR [rbx+0x70],0xffffffff
   0x00007ffff7c8bf7d <+237>:   cmove  r12d,ebp
   0x00007ffff7c8bf81 <+241>:   mov    QWORD PTR [rbx+0x90],0xffffffffffffffff
   0x00007ffff7c8bf8c <+252>:   mov    eax,r12d
   0x00007ffff7c8bf8f <+255>:   pop    rbx
   0x00007ffff7c8bf90 <+256>:   pop    rbp
   0x00007ffff7c8bf91 <+257>:   pop    r12
   0x00007ffff7c8bf93 <+259>:   ret
   0x00007ffff7c8bf94 <+260>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8bf98 <+264>:   mov    edx,DWORD PTR [rdi+0xc0]
   0x00007ffff7c8bf9e <+270>:   test   edx,edx
   0x00007ffff7c8bfa0 <+272>:   jle    0x7ffff7c8bfc8 <_IO_new_file_close_it+312>
   0x00007ffff7c8bfa2 <+274>:   mov    rax,QWORD PTR [rdi+0xa0]
   0x00007ffff7c8bfa9 <+281>:   mov    rsi,QWORD PTR [rax+0x18]
   0x00007ffff7c8bfad <+285>:   mov    rdx,QWORD PTR [rax+0x20]
   0x00007ffff7c8bfb1 <+289>:   sub    rdx,rsi
   0x00007ffff7c8bfb4 <+292>:   sar    rdx,0x2
   0x00007ffff7c8bfb8 <+296>:   call   0x7ffff7c861a0 <__GI__IO_wdo_write>
   0x00007ffff7c8bfbd <+301>:   mov    ebp,eax
   0x00007ffff7c8bfbf <+303>:   jmp    0x7ffff7c8bebd <_IO_new_file_close_it+45>
   0x00007ffff7c8bfc4 <+308>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8bfc8 <+312>:   mov    rsi,QWORD PTR [rdi+0x20]
   0x00007ffff7c8bfcc <+316>:   mov    rdx,QWORD PTR [rdi+0x28]
   0x00007ffff7c8bfd0 <+320>:   sub    rdx,rsi
   0x00007ffff7c8bfd3 <+323>:   call   0x7ffff7c8c930 <_IO_new_do_write>
   0x00007ffff7c8bfd8 <+328>:   mov    ebp,eax
   0x00007ffff7c8bfda <+330>:   jmp    0x7ffff7c8bebd <_IO_new_file_close_it+45>
   0x00007ffff7c8bfdf <+335>:   nop
   0x00007ffff7c8bfe0 <+336>:   call   0x7ffff7c89ef0 <_IO_vtable_check>
   0x00007ffff7c8bfe5 <+341>:   jmp    0x7ffff7c8bef5 <_IO_new_file_close_it+101>
End of assembler dump.

我们接着走

1
2
3
4
5
6
7
0x7ffff7c8be90 <_IO_file_close_it>       endbr64
0x7ffff7c8be94 <_IO_file_close_it+4>     push   r12
0x7ffff7c8be96 <_IO_file_close_it+6>     push   rbp
0x7ffff7c8be97 <_IO_file_close_it+7>     push   rbx
0x7ffff7c8be98 <_IO_file_close_it+8>     mov    r12d, dword ptr [rdi + 0x70]     R12D, [0x555555559310] => 3
0x7ffff7c8be9c <_IO_file_close_it+12>    cmp    r12d, -1                         3 - -1     EFLAGS => 0x213 [ CF pf AF zf sf IF df of ac ]
0x7ffff7c8bea0 <_IO_file_close_it+16>  ✘ je     _IO_file_close_it+252       <_IO_file_close_it+252>

这里是判断文件处于打开状态，直接比较_fileno域，确保不是-1
否则直接返回

1
2
3
4
5
0x00007ffff7c8bf8c <+252>:   mov    eax,r12d
0x00007ffff7c8bf8f <+255>:   pop    rbx
0x00007ffff7c8bf90 <+256>:   pop    rbp
0x00007ffff7c8bf91 <+257>:   pop    r12
0x00007ffff7c8bf93 <+259>:   ret

接着判断是不是输出缓冲区

1
2
3
4
5
6
0x7ffff7c8bea6 <_IO_file_close_it+22>     mov    eax, dword ptr [rdi]             EAX, [0x5555555592a0] => 0xfbad2c04
0x7ffff7c8bea8 <_IO_file_close_it+24>     mov    rbx, rdi                         RBX => 0x5555555592a0 ◂— 0xfbad2c04
0x7ffff7c8beab <_IO_file_close_it+27>     xor    ebp, ebp                         EBP => 0
0x7ffff7c8bead <_IO_file_close_it+29>     and    eax, 0x808                       EAX => 0x800 (0xfbad2c04 & 0x808)
0x7ffff7c8beb2 <_IO_file_close_it+34>     cmp    eax, 0x800                       0x800 - 0x800     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8beb7 <_IO_file_close_it+39>   ✔ je     _IO_file_close_it+264       <_IO_file_close_it+264>

如果是的话（我们这里是），则调用_IO_do_flush刷新此时的输出缓冲区，_IO_do_flush也是一个宏定义

1
2
3
4
5
6
7
8
#if defined _LIBC || defined _GLIBCPP_USE_WCHAR_T
# define _IO_do_flush(_f) \
  ((_f)->_mode <= 0                               \
   ? _IO_do_write(_f, (_f)->_IO_write_base,                   \
          (_f)->_IO_write_ptr-(_f)->_IO_write_base)           \
   : _IO_wdo_write(_f, (_f)->_wide_data->_IO_write_base,              \
           ((_f)->_wide_data->_IO_write_ptr               \
            - (_f)->_wide_data->_IO_write_base)))

可以看到它对应的是调用_IO_do_write函数去输出此时的输出缓冲区

1
2
3
4
5
6
7
8
0x7ffff7c8bf98 <_IO_file_close_it+264>    mov    edx, dword ptr [rdi + 0xc0]     EDX, [0x555555559360] => 0xffffffff
0x7ffff7c8bf9e <_IO_file_close_it+270>    test   edx, edx                        0xffffffff & 0xffffffff     EFLAGS => 0x286 [ cf PF af zf SF IF df of ac ]
0x7ffff7c8bfa0 <_IO_file_close_it+272>  ✔ jle    _IO_file_close_it+312       <_IO_file_close_it+312>
    ↓
0x7ffff7c8bfc8 <_IO_file_close_it+312>    mov    rsi, qword ptr [rdi + 0x20]     RSI, [0x5555555592c0] => 0x5555555594b0 ◂— 'wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww'
0x7ffff7c8bfcc <_IO_file_close_it+316>    mov    rdx, qword ptr [rdi + 0x28]     RDX, [0x5555555592c8] => 0x5555555594d0 ◂— 0
0x7ffff7c8bfd0 <_IO_file_close_it+320>    sub    rdx, rsi                        RDX => 32 (0x5555555594d0 - 0x5555555594b0)
0x00007ffff7c8bfd3 <+323>:   call   0x7ffff7c8c930 <_IO_new_do_write>

放上反汇编结果方便分析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
pwndbg> disass
Dump of assembler code for function _IO_new_do_write:
   0x00007ffff7c8c930 <+0>:     endbr64
   0x00007ffff7c8c934 <+4>:     xor    eax,eax
   0x00007ffff7c8c936 <+6>:     test   rdx,rdx
   0x00007ffff7c8c939 <+9>:     jne    0x7ffff7c8c940 <_IO_new_do_write+16>
   0x00007ffff7c8c93b <+11>:    ret
   0x00007ffff7c8c93c <+12>:    nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8c940 <+16>:    push   r15
   0x00007ffff7c8c942 <+18>:    lea    r15,[rip+0x18a0b7]        # 0x7ffff7e16a00 <_IO_helper_jumps>
   0x00007ffff7c8c949 <+25>:    push   r14
   0x00007ffff7c8c94b <+27>:    push   r13
   0x00007ffff7c8c94d <+29>:    lea    r13,[rip+0x18ae14]        # 0x7ffff7e17768
   0x00007ffff7c8c954 <+36>:    push   r12
   0x00007ffff7c8c956 <+38>:    sub    r13,r15
   0x00007ffff7c8c959 <+41>:    mov    r12,rsi
   0x00007ffff7c8c95c <+44>:    push   rbp
   0x00007ffff7c8c95d <+45>:    mov    rbp,rdx
   0x00007ffff7c8c960 <+48>:    push   rbx
   0x00007ffff7c8c961 <+49>:    mov    rbx,rdi
   0x00007ffff7c8c964 <+52>:    sub    rsp,0x8
   0x00007ffff7c8c968 <+56>:    mov    r14,QWORD PTR [rdi+0xd8]
   0x00007ffff7c8c96f <+63>:    test   DWORD PTR [rdi],0x1000
   0x00007ffff7c8c975 <+69>:    jne    0x7ffff7c8ca40 <_IO_new_do_write+272>
   0x00007ffff7c8c97b <+75>:    mov    rax,QWORD PTR [rdi+0x10]
   0x00007ffff7c8c97f <+79>:    mov    rsi,QWORD PTR [rdi+0x20]
   0x00007ffff7c8c983 <+83>:    cmp    rax,rsi
   0x00007ffff7c8c986 <+86>:    je     0x7ffff7c8c9c5 <_IO_new_do_write+149>
   0x00007ffff7c8c988 <+88>:    mov    rdx,r14
   0x00007ffff7c8c98b <+91>:    sub    rdx,r15
   0x00007ffff7c8c98e <+94>:    cmp    r13,rdx
   0x00007ffff7c8c991 <+97>:    jbe    0x7ffff7c8ca90 <_IO_new_do_write+352>
   0x00007ffff7c8c997 <+103>:   mov    edx,0x1
   0x00007ffff7c8c99c <+108>:   sub    rsi,rax
   0x00007ffff7c8c99f <+111>:   mov    rdi,rbx
   0x00007ffff7c8c9a2 <+114>:   call   QWORD PTR [r14+0x80]
   0x00007ffff7c8c9a9 <+121>:   mov    rdx,rax
   0x00007ffff7c8c9ac <+124>:   mov    eax,0xffffffff
   0x00007ffff7c8c9b1 <+129>:   cmp    rdx,0xffffffffffffffff
   0x00007ffff7c8c9b5 <+133>:   je     0x7ffff7c8ca2a <_IO_new_do_write+250>
   0x00007ffff7c8c9b7 <+135>:   mov    QWORD PTR [rbx+0x90],rdx
   0x00007ffff7c8c9be <+142>:   mov    r14,QWORD PTR [rbx+0xd8]
   0x00007ffff7c8c9c5 <+149>:   mov    rax,r14
   0x00007ffff7c8c9c8 <+152>:   sub    rax,r15
   0x00007ffff7c8c9cb <+155>:   cmp    rax,r13
   0x00007ffff7c8c9ce <+158>:   jae    0x7ffff7c8ca80 <_IO_new_do_write+336>
   0x00007ffff7c8c9d4 <+164>:   mov    rdx,rbp
   0x00007ffff7c8c9d7 <+167>:   mov    rsi,r12
   0x00007ffff7c8c9da <+170>:   mov    rdi,rbx
   0x00007ffff7c8c9dd <+173>:   call   QWORD PTR [r14+0x78]
   0x00007ffff7c8c9e1 <+177>:   mov    r13,rax
   0x00007ffff7c8c9e4 <+180>:   movzx  eax,WORD PTR [rbx+0x80]
   0x00007ffff7c8c9eb <+187>:   test   r13,r13
   0x00007ffff7c8c9ee <+190>:   je     0x7ffff7c8c9f5 <_IO_new_do_write+197>
   0x00007ffff7c8c9f0 <+192>:   test   ax,ax
   0x00007ffff7c8c9f3 <+195>:   jne    0x7ffff7c8ca60 <_IO_new_do_write+304>
   0x00007ffff7c8c9f5 <+197>:   mov    rax,QWORD PTR [rbx+0x38]
   0x00007ffff7c8c9f9 <+201>:   mov    edx,DWORD PTR [rbx+0xc0]
   0x00007ffff7c8c9ff <+207>:   movq   xmm0,rax
   0x00007ffff7c8ca04 <+212>:   mov    QWORD PTR [rbx+0x28],rax
   0x00007ffff7c8ca08 <+216>:   punpcklqdq xmm0,xmm0
   0x00007ffff7c8ca0c <+220>:   movups XMMWORD PTR [rbx+0x8],xmm0
   0x00007ffff7c8ca10 <+224>:   movups XMMWORD PTR [rbx+0x18],xmm0
   0x00007ffff7c8ca14 <+228>:   test   edx,edx
   0x00007ffff7c8ca16 <+230>:   jle    0x7ffff7c8ca50 <_IO_new_do_write+288>
   0x00007ffff7c8ca18 <+232>:   mov    rax,QWORD PTR [rbx+0x40]
   0x00007ffff7c8ca1c <+236>:   mov    QWORD PTR [rbx+0x30],rax
   0x00007ffff7c8ca20 <+240>:   xor    eax,eax
   0x00007ffff7c8ca22 <+242>:   cmp    rbp,r13
   0x00007ffff7c8ca25 <+245>:   setne  al
   0x00007ffff7c8ca28 <+248>:   neg    eax
   0x00007ffff7c8ca2a <+250>:   add    rsp,0x8
   0x00007ffff7c8ca2e <+254>:   pop    rbx
   0x00007ffff7c8ca2f <+255>:   pop    rbp
   0x00007ffff7c8ca30 <+256>:   pop    r12
   0x00007ffff7c8ca32 <+258>:   pop    r13
   0x00007ffff7c8ca34 <+260>:   pop    r14
   0x00007ffff7c8ca36 <+262>:   pop    r15
   0x00007ffff7c8ca38 <+264>:   ret
   0x00007ffff7c8ca39 <+265>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8ca40 <+272>:   mov    QWORD PTR [rdi+0x90],0xffffffffffffffff
   0x00007ffff7c8ca4b <+283>:   jmp    0x7ffff7c8c9c5 <_IO_new_do_write+149>
   0x00007ffff7c8ca50 <+288>:   test   DWORD PTR [rbx],0x202
   0x00007ffff7c8ca56 <+294>:   jne    0x7ffff7c8ca1c <_IO_new_do_write+236>
   0x00007ffff7c8ca58 <+296>:   jmp    0x7ffff7c8ca18 <_IO_new_do_write+232>
   0x00007ffff7c8ca5a <+298>:   nop    WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8ca60 <+304>:   lea    edi,[rax-0x1]
   0x00007ffff7c8ca63 <+307>:   mov    edx,r13d
   0x00007ffff7c8ca66 <+310>:   mov    rsi,r12
   0x00007ffff7c8ca69 <+313>:   call   0x7ffff7c8e8b0 <__GI__IO_adjust_column>
   0x00007ffff7c8ca6e <+318>:   add    eax,0x1
   0x00007ffff7c8ca71 <+321>:   mov    WORD PTR [rbx+0x80],ax
   0x00007ffff7c8ca78 <+328>:   jmp    0x7ffff7c8c9f5 <_IO_new_do_write+197>
   0x00007ffff7c8ca7d <+333>:   nop    DWORD PTR [rax]
   0x00007ffff7c8ca80 <+336>:   call   0x7ffff7c89ef0 <_IO_vtable_check>
   0x00007ffff7c8ca85 <+341>:   jmp    0x7ffff7c8c9d4 <_IO_new_do_write+164>
   0x00007ffff7c8ca8a <+346>:   nop    WORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8ca90 <+352>:   call   0x7ffff7c89ef0 <_IO_vtable_check>
   0x00007ffff7c8ca95 <+357>:   mov    rsi,QWORD PTR [rbx+0x20]
   0x00007ffff7c8ca99 <+361>:   mov    rax,QWORD PTR [rbx+0x10]
   0x00007ffff7c8ca9d <+365>:   jmp    0x7ffff7c8c997 <_IO_new_do_write+103>
End of assembler dump.

这个函数先判断输出缓冲区有无数据需要输出（这一部分在fwrite函数分析过，但那时不需要输出）

1
2
3
4
0x7ffff7c8c930 <_IO_do_write>       endbr64
0x7ffff7c8c934 <_IO_do_write+4>     xor    eax, eax     EAX => 0
0x7ffff7c8c936 <_IO_do_write+6>     test   rdx, rdx     0x20 & 0x20     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x7ffff7c8c939 <_IO_do_write+9>   ✔ jne    _IO_do_write+16             <_IO_do_write+16>

我们这里刚调用过fwrite函数，所以缓冲区是需要刷新的，所以继续往下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
0x7ffff7c8c940 <_IO_do_write+16>    push   r15
0x7ffff7c8c942 <_IO_do_write+18>    lea    r15, [rip + 0x18a0b7]     R15 => 0x7ffff7e16a00 (_IO_helper_jumps) ◂— 0
0x7ffff7c8c949 <_IO_do_write+25>    push   r14
0x7ffff7c8c94b <_IO_do_write+27>    push   r13
0x7ffff7c8c94d <_IO_do_write+29>    lea    r13, [rip + 0x18ae14]     R13 => 0x7ffff7e17768 ◂— 0
0x7ffff7c8c954 <_IO_do_write+36>    push   r12
0x7ffff7c8c956 <_IO_do_write+38>    sub    r13, r15                  R13 => 0xd68 (0x7ffff7e17768 - 0x7ffff7e16a00)
0x7ffff7c8c959 <_IO_do_write+41>    mov    r12, rsi                        R12 => 0x5555555594b0 ◂— 'wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww'
0x7ffff7c8c95c <_IO_do_write+44>    push   rbp
0x7ffff7c8c95d <_IO_do_write+45>    mov    rbp, rdx                        RBP => 0x20
0x7ffff7c8c960 <_IO_do_write+48>    push   rbx
0x7ffff7c8c961 <_IO_do_write+49>    mov    rbx, rdi                        RBX => 0x5555555592a0 ◂— 0xfbad2c04
0x7ffff7c8c964 <_IO_do_write+52>    sub    rsp, 8                          RSP => 0x7fffffffdc00 (0x7fffffffdc08 - 0x8)
0x7ffff7c8c968 <_IO_do_write+56>    mov    r14, qword ptr [rdi + 0xd8]     R14, [0x555555559378] => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c8c96f <_IO_do_write+63>    test   dword ptr [rdi], 0x1000         0xfbad2c04 & 0x1000     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8c975 <_IO_do_write+69>  ✘ jne    _IO_do_write+272            <_IO_do_write+272>

这里是vtable的安全检查，不再赘述，继续往下

1
2
3
4
5
6
7
8
9
0x7ffff7c8c97b <_IO_do_write+75>     mov    rax, qword ptr [rdi + 0x10]     RAX, [0x5555555592b0] => 0x5555555594b0 ◂— 'wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww'
0x7ffff7c8c97f <_IO_do_write+79>     mov    rsi, qword ptr [rdi + 0x20]     RSI, [0x5555555592c0] => 0x5555555594b0 ◂— 'wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww'
0x7ffff7c8c983 <_IO_do_write+83>     cmp    rax, rsi                        0x5555555594b0 - 0x5555555594b0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8c986 <_IO_do_write+86>   ✔ je     _IO_do_write+149            <_IO_do_write+149>
    ↓
0x7ffff7c8c9c5 <_IO_do_write+149>    mov    rax, r14     RAX => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c8c9c8 <_IO_do_write+152>    sub    rax, r15     RAX => 0xc00 (0x7ffff7e17600 - 0x7ffff7e16a00)
0x7ffff7c8c9cb <_IO_do_write+155>    cmp    rax, r13     0xc00 - 0xd68     EFLAGS => 0x293 [ CF pf AF zf SF IF df of ac ]
0x7ffff7c8c9ce <_IO_do_write+158>  ✘ jae    _IO_do_write+336            <_IO_do_write+336>

往下

1
2
3
4
0x7ffff7c8c9d4 <_IO_do_write+164>    mov    rdx, rbp     RDX => 0x20
0x7ffff7c8c9d7 <_IO_do_write+167>    mov    rsi, r12     RSI => 0x5555555594b0 ◂— 'wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww'
0x7ffff7c8c9da <_IO_do_write+170>    mov    rdi, rbx     RDI => 0x5555555592a0 ◂— 0xfbad2c04
0x7ffff7c8c9dd <_IO_do_write+173>    call   qword ptr [r14 + 0x78]      <_IO_file_write>

这里调用了vtable->_IO_file_write来输出缓冲区数据以刷新缓冲区（我们这里fp->_IO_write_base与fp->_IO_write_ptr间是有数据的）
跟进

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
pwndbg> disass
Dump of assembler code for function _IO_new_file_write:
=> 0x00007ffff7c8aec0 <+0>:     endbr64
   0x00007ffff7c8aec4 <+4>:     push   r13
   0x00007ffff7c8aec6 <+6>:     mov    r13,rdi
   0x00007ffff7c8aec9 <+9>:     push   r12
   0x00007ffff7c8aecb <+11>:    push   rbp
   0x00007ffff7c8aecc <+12>:    push   rbx
   0x00007ffff7c8aecd <+13>:    sub    rsp,0x8
   0x00007ffff7c8aed1 <+17>:    test   rdx,rdx
   0x00007ffff7c8aed4 <+20>:    jle    0x7ffff7c8af58 <_IO_new_file_write+152>
   0x00007ffff7c8aeda <+26>:    mov    rbp,rsi
   0x00007ffff7c8aedd <+29>:    mov    r12,rdx
   0x00007ffff7c8aee0 <+32>:    mov    rbx,rdx
   0x00007ffff7c8aee3 <+35>:    jmp    0x7ffff7c8aefd <_IO_new_file_write+61>
   0x00007ffff7c8aee5 <+37>:    nop    DWORD PTR [rax]
   0x00007ffff7c8aee8 <+40>:    call   0x7ffff7d14870 <__GI___libc_write>
   0x00007ffff7c8aeed <+45>:    test   rax,rax
   0x00007ffff7c8aef0 <+48>:    js     0x7ffff7c8af20 <_IO_new_file_write+96>
   0x00007ffff7c8aef2 <+50>:    sub    rbx,rax
   0x00007ffff7c8aef5 <+53>:    add    rbp,rax
   0x00007ffff7c8aef8 <+56>:    test   rbx,rbx
   0x00007ffff7c8aefb <+59>:    jle    0x7ffff7c8af50 <_IO_new_file_write+144>
   0x00007ffff7c8aefd <+61>:    mov    edi,DWORD PTR [r13+0x70]
   0x00007ffff7c8af01 <+65>:    mov    rdx,rbx
   0x00007ffff7c8af04 <+68>:    mov    rsi,rbp
   0x00007ffff7c8af07 <+71>:    test   BYTE PTR [r13+0x74],0x2
   0x00007ffff7c8af0c <+76>:    je     0x7ffff7c8aee8 <_IO_new_file_write+40>
   0x00007ffff7c8af0e <+78>:    call   0x7ffff7d19b90 <__GI___write_nocancel>
   0x00007ffff7c8af13 <+83>:    test   rax,rax
   0x00007ffff7c8af16 <+86>:    jns    0x7ffff7c8aef2 <_IO_new_file_write+50>
   0x00007ffff7c8af18 <+88>:    nop    DWORD PTR [rax+rax*1+0x0]
   0x00007ffff7c8af20 <+96>:    or     DWORD PTR [r13+0x0],0x20
   0x00007ffff7c8af25 <+101>:   mov    rax,r12
   0x00007ffff7c8af28 <+104>:   sub    rax,rbx
   0x00007ffff7c8af2b <+107>:   mov    rdx,QWORD PTR [r13+0x90]
   0x00007ffff7c8af32 <+114>:   test   rdx,rdx
   0x00007ffff7c8af35 <+117>:   js     0x7ffff7c8af41 <_IO_new_file_write+129>
   0x00007ffff7c8af37 <+119>:   add    rdx,rax
   0x00007ffff7c8af3a <+122>:   mov    QWORD PTR [r13+0x90],rdx
   0x00007ffff7c8af41 <+129>:   add    rsp,0x8
   0x00007ffff7c8af45 <+133>:   pop    rbx
   0x00007ffff7c8af46 <+134>:   pop    rbp
   0x00007ffff7c8af47 <+135>:   pop    r12
   0x00007ffff7c8af49 <+137>:   pop    r13
   0x00007ffff7c8af4b <+139>:   ret
   0x00007ffff7c8af4c <+140>:   nop    DWORD PTR [rax+0x0]
   0x00007ffff7c8af50 <+144>:   mov    rax,r12
   0x00007ffff7c8af53 <+147>:   sub    rax,rbx
   0x00007ffff7c8af56 <+150>:   jmp    0x7ffff7c8af2b <_IO_new_file_write+107>
   0x00007ffff7c8af58 <+152>:   xor    eax,eax
   0x00007ffff7c8af5a <+154>:   jmp    0x7ffff7c8af2b <_IO_new_file_write+107>
End of assembler dump.

仍然是判断需要输出的数据长度是否为0

1
2
3
4
5
6
7
8
0x7ffff7c8aec4 <_IO_file_write+4>     push   r13
0x7ffff7c8aec6 <_IO_file_write+6>     mov    r13, rdi     R13 => 0x5555555592a0 ◂— 0xfbad2c04
0x7ffff7c8aec9 <_IO_file_write+9>     push   r12
0x7ffff7c8aecb <_IO_file_write+11>    push   rbp
0x7ffff7c8aecc <_IO_file_write+12>    push   rbx
0x7ffff7c8aecd <_IO_file_write+13>    sub    rsp, 8       RSP => 0x7fffffffdbd0 (0x7fffffffdbd8 - 0x8)
0x7ffff7c8aed1 <_IO_file_write+17>    test   rdx, rdx     0x20 & 0x20     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x7ffff7c8aed4 <_IO_file_write+20>  ✘ jle    _IO_file_write+152          <_IO_file_write+152>

为0则直接返回，往下走

1
2
3
4
5
6
7
8
9
10
11
0x7ffff7c8aeda <_IO_file_write+26>    mov    rbp, rsi     RBP => 0x5555555594b0 ◂— 'wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww'
0x7ffff7c8aedd <_IO_file_write+29>    mov    r12, rdx     R12 => 0x20
0x7ffff7c8aee3 <_IO_file_write+35>:   jmp    0x7ffff7c8aefd <_IO_new_file_write+61>
    ↓
0x7ffff7c8aefd <_IO_file_write+61>    mov    edi, dword ptr [r13 + 0x70]     EDI, [0x555555559310] => 3
0x7ffff7c8af01 <_IO_file_write+65>    mov    rdx, rbx                        RDX => 0x20
0x7ffff7c8af04 <_IO_file_write+68>    mov    rsi, rbp                        RSI => 0x5555555594b0 ◂— 'wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww'
0x7ffff7c8af07 <_IO_file_write+71>    test   byte ptr [r13 + 0x74], 2        0 & 2     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8af0c <_IO_file_write+76>  ✔ je     _IO_file_write+40           <_IO_file_write+40>
    ↓
0x7ffff7c8aee8 <_IO_file_write+40>    call   write                       <write>

后续就是系统调用write来将输出缓冲区的数据输出到目标文件

1
2
3
4
5
6
7
0x7ffff7d14870 <write>       endbr64
0x7ffff7d14874 <write+4>     mov    eax, dword ptr fs:[0x18]     EAX, [0x7ffff7fb1758] => 0
0x7ffff7d1487c <write+12>    test   eax, eax                     0 & 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7d1487e <write+14>  ✘ jne    write+32                    <write+32>

0x7ffff7d14880 <write+16>    mov    eax, 1            EAX => 1
0x7ffff7d14885 <write+21>    syscall  <SYS_write>

后续回到_IO_do_write

1
2
3
4
5
6
7
8
9
10
11
12
0x7ffff7c8c9f5 <_IO_do_write+197>    mov    rax, qword ptr [rbx + 0x38]     RAX, [0x5555555592d8] => 0x5555555594b0 ◂— 'wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww'
0x7ffff7c8c9f9 <_IO_do_write+201>    mov    edx, dword ptr [rbx + 0xc0]     EDX, [0x555555559360] => 0xffffffff
0x7ffff7c8c9ff <_IO_do_write+207>    movq   xmm0, rax                       XMM0 => 0x5555555594b0 ◂— 'wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww'
0x7ffff7c8ca04 <_IO_do_write+212>    mov    qword ptr [rbx + 0x28], rax     [0x5555555592c8] <= 0x5555555594b0 ◂— 'wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww'
0x7ffff7c8ca08 <_IO_do_write+216>    punpcklqdq xmm0, xmm0
0x7ffff7c8ca0c <_IO_do_write+220>    movups xmmword ptr [rbx + 8], xmm0
0x7ffff7c8ca10 <_IO_do_write+224>    movups xmmword ptr [rbx + 0x18], xmm0
0x7ffff7c8ca14 <_IO_do_write+228>    test   edx, edx                           0xffffffff & 0xffffffff     EFLAGS => 0x286 [ cf PF af zf SF IF df of ac ]
0x7ffff7c8ca16 <_IO_do_write+230>  ✔ jle    _IO_do_write+288            <_IO_do_write+288>
    ↓
0x7ffff7c8ca50 <_IO_do_write+288>    test   dword ptr [rbx], 0x202             0xfbad2c04 & 0x202     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8ca56 <_IO_do_write+294>  ✘ jne    _IO_do_write+236            <_IO_do_write+236>

看到刷新了write指针

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$7 = {
  file = {
    _flags = -72537084,
    _IO_read_ptr = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_read_end = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_read_base = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_write_base = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_write_ptr = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_write_end = 0x55555555a4b0 "",
    _IO_buf_base = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_buf_end = 0x55555555a4b0 "",
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = -1,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

再往后

1
2
3
4
5
6
7
8
0x7ffff7c8bece <_IO_file_close_it+62>    mov    r12, qword ptr [rbx + 0xd8]     R12, [0x555555559378] => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c8bed5 <_IO_file_close_it+69>    lea    rdx, [rip + 0x18ab24]           RDX => 0x7ffff7e16a00 (_IO_helper_jumps) ◂— 0
0x7ffff7c8bedc <_IO_file_close_it+76>    lea    rax, [rip + 0x18b885]           RAX => 0x7ffff7e17768 ◂— 0
0x7ffff7c8bee3 <_IO_file_close_it+83>    sub    rax, rdx                        RAX => 0xd68 (0x7ffff7e17768 - 0x7ffff7e16a00)
0x7ffff7c8bee6 <_IO_file_close_it+86>    mov    rcx, r12                        RCX => 0x7ffff7e17600 (_IO_file_jumps) ◂— 0
0x7ffff7c8bee9 <_IO_file_close_it+89>    sub    rcx, rdx                        RCX => 0xc00 (0x7ffff7e17600 - 0x7ffff7e16a00)
0x7ffff7c8beec <_IO_file_close_it+92>    cmp    rax, rcx                        0xd68 - 0xc00     EFLAGS => 0x202 [ cf pf af zf sf IF df of ac ]
0x00007ffff7c8beef <+95>:    jbe    0x7ffff7c8bfe0 <_IO_new_file_close_it+336>

仍然是vtable的安全检查机制，<_IO_new_file_close_it+336>处就是

1
0x00007ffff7c8bfe0 <+336>:   call   0x7ffff7c89ef0 <_IO_vtable_check>

不再赘述，后续调用vtable->_IO_file_close函数

1
2
0x7ffff7c8bef5 <_IO_file_close_it+101>    mov    rdi, rbx     RDI => 0x5555555592a0 ◂— 0xfbad2c04
0x7ffff7c8bef8 <_IO_file_close_it+104>    call   qword ptr [r12 + 0x88]      <_IO_file_close>

调用__close_nocancel函数

1
2
3
4
5
6
7
0x7ffff7c8a590 <_IO_file_close>         endbr64
0x7ffff7c8a594 <_IO_file_close+4>       mov    edi, dword ptr [rdi + 0x70]     EDI, [0x555555559310] => 3
0x7ffff7c8a597 <_IO_file_close+7>       jmp    __close_nocancel            <__close_nocancel>
    ↓
0x7ffff7d19860 <__close_nocancel>       endbr64
0x7ffff7d19864 <__close_nocancel+4>     mov    eax, 3            EAX => 3
0x7ffff7d19869 <__close_nocancel+9>     syscall  <SYS_close>

而__close_nocancel直接系统调用close函数来关闭文件描述符
后续回到_IO_file_close_it，调用_IO_setb函数

1
2
3
4
5
0x7ffff7c8bf47 <_IO_file_close_it+183>    xor    ecx, ecx     ECX => 0
0x7ffff7c8bf49 <_IO_file_close_it+185>    xor    edx, edx     EDX => 0
0x7ffff7c8bf4b <_IO_file_close_it+187>    xor    esi, esi     ESI => 0
0x7ffff7c8bf4d <_IO_file_close_it+189>    mov    rdi, rbx     RDI => 0x5555555592a0 ◂— 0xfbad2c04
0x7ffff7c8bf50 <_IO_file_close_it+192>    call   _IO_setb                    <_IO_setb>

这里_IO_setb还调用free函数释放了缓冲区

1
2
0x7ffff7c8dc74 <_IO_setb+84>    call   free@plt                    <free@plt>
        ptr: 0x5555555594b0 ◂— 'wwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww'

_IO_setb结束后可以看到

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$10 = {
  file = {
    _flags = -72537083,
    _IO_read_ptr = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_read_end = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_read_base = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_write_base = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_write_ptr = 0x5555555594b0 'w' <repeats 32 times>,
    _IO_write_end = 0x55555555a4b0 "",
    _IO_buf_base = 0x0,
    _IO_buf_end = 0x0,
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = 3,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = -1,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

_IO_buf_base,_IO_buf_end都已经清空

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
pwndbg> heap
Allocated chunk | PREV_INUSE
Addr: 0x555555559000
Size: 0x290 (with flag bits: 0x291)

Allocated chunk | PREV_INUSE
Addr: 0x555555559290
Size: 0x1e0 (with flag bits: 0x1e1)

Allocated chunk | PREV_INUSE
Addr: 0x555555559470
Size: 0x30 (with flag bits: 0x31)

Top chunk | PREV_INUSE
Addr: 0x5555555594a0
Size: 0x20b60 (with flag bits: 0x20b61)

对应的缓冲区chunk也被释放（这里被topchunk合并）
然后刷新读写指针
将指针全部清空了（xmmword是16字节单元）

1
2
3
4
5
0x7ffff7c8bf55 <_IO_file_close_it+197>    pxor   xmm0, xmm0
0x7ffff7c8bf59 <_IO_file_close_it+201>    mov    rdi, rbx                           RDI => 0x5555555592a0 ◂— 0xfbad2c05
0x7ffff7c8bf5c <_IO_file_close_it+204>    movups xmmword ptr [rbx + 8], xmm0
0x7ffff7c8bf60 <_IO_file_close_it+208>    movups xmmword ptr [rbx + 0x18], xmm0
0x7ffff7c8bf64 <_IO_file_close_it+212>    movups xmmword ptr [rbx + 0x28], xmm0

后续再次调用_IO_un_link确保从_IO_list_all中脱离

1
2
0x7ffff7c8bf68 <_IO_file_close_it+216>    call   _IO_un_link                 <_IO_un_link>
        rdi: 0x5555555592a0 ◂— 0xfbad2c05

再往下

1
2
3
4
5
0x7ffff7c8bf6d <_IO_file_close_it+221>    test   r12d, r12d                                     0 & 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8bf70 <_IO_file_close_it+224>    mov    dword ptr [rbx], 0xfbad240c                    [0x5555555592a0] <= 0xfbad240c
0x7ffff7c8bf76 <_IO_file_close_it+230>    mov    dword ptr [rbx + 0x70], 0xffffffff             [0x555555559310] <= 0xffffffff
0x7ffff7c8bf7d <_IO_file_close_it+237>  ✔ cmove  r12d, ebp
0x7ffff7c8bf81 <_IO_file_close_it+241>    mov    qword ptr [rbx + 0x90], 0xffffffffffffffff     [0x555555559330] <= 0xffffffffffffffff

设置_flags,_fileno和_offset域

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$11 = {
  file = {
    _flags = -72539124,
    _IO_read_ptr = 0x0,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x0,
    _IO_buf_end = 0x0,
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = -1,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = -1,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

可以看到指针全部清空， _offset和_fileno都被设置为-1
最后回到_IO_new_fclose函数，再对vtable安全检查后，调用vtable->_IO_file_finish函数

1
2
3
0x7ffff7c7ecd9 <fclose+105>    xor    esi, esi     ESI => 0
0x7ffff7c7ecdb <fclose+107>    mov    rdi, rbp     RDI => 0x5555555592a0 ◂— 0xfbad240c
0x7ffff7c7ecde <fclose+110>    call   qword ptr [rbx + 0x10]      <_IO_file_finish>

函数首先检查了文件描述符是否打开，其已经被设置为-1，所以不会进入该流程。如果文件打开的话则会调用_IO_do_flush和_IO_SYSCLOSE刷新缓冲区以及关闭文件。

1
2
0x7ffff7c8bffd <_IO_file_finish+13>     cmp    dword ptr [rdi + 0x70], -1     0xffffffff - -0x1     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8c001 <_IO_file_finish+17>   ✔ je     _IO_file_finish+106         <_IO_file_finish+106>

接着调用_IO_default_finish确认缓冲区确实被释放，以及结构体从_IO_list_all中取了下来，并设置指针

1
2
3
4
5
6
0x7ffff7c8c05a <_IO_file_finish+106>    add    rsp, 8       RSP => 0x7fffffffdc48 (0x7fffffffdc40 + 0x8)
0x7ffff7c8c05e <_IO_file_finish+110>    mov    rdi, rbp     RDI => 0x5555555592a0 ◂— 0xfbad240c
0x7ffff7c8c061 <_IO_file_finish+113>    xor    esi, esi     ESI => 0
0x7ffff7c8c063 <_IO_file_finish+115>    pop    rbx          RBX => 0x7ffff7e17600 (_IO_file_jumps)
0x7ffff7c8c064 <_IO_file_finish+116>    pop    rbp          RBP => 0x5555555592a0
0x7ffff7c8c065 <_IO_file_finish+117>    jmp    _IO_default_finish          <_IO_default_finish>

可以看到判断[rdi + 0x38]也就是_IO_buf_base是否为0，确认缓冲区确实被释放

1
2
3
4
5
0x7ffff7c8e734 <_IO_default_finish+4>     push   rbp
0x7ffff7c8e735 <_IO_default_finish+5>     mov    rbp, rdi                        RBP => 0x5555555592a0 ◂— 0xfbad240c
0x7ffff7c8e738 <_IO_default_finish+8>     mov    rdi, qword ptr [rdi + 0x38]     RDI, [0x5555555592d8] => 0
0x7ffff7c8e73c <_IO_default_finish+12>    test   rdi, rdi                        0 & 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8e73f <_IO_default_finish+15>  ✔ je     _IO_default_finish+23       <_IO_default_finish+23>

接着又检查了很多域

1
2
3
4
5
6
7
8
9
10
0x7ffff7c8e747 <_IO_default_finish+23>    mov    rax, qword ptr [rbp + 0x60]     RAX, [0x555555559300] => 0
0x7ffff7c8e74b <_IO_default_finish+27>    test   rax, rax                        0 & 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8e74e <_IO_default_finish+30>  ✔ je     _IO_default_finish+48       <_IO_default_finish+48>
    ↓
0x7ffff7c8e760 <_IO_default_finish+48>    mov    rdi, qword ptr [rbp + 0x48]     RDI, [0x5555555592e8] => 0
0x7ffff7c8e764 <_IO_default_finish+52>    test   rdi, rdi                        0 & 0     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8e767 <_IO_default_finish+55>  ✔ je     _IO_default_finish+70       <_IO_default_finish+70>
    ↓
0x7ffff7c8e776 <_IO_default_finish+70>    test   byte ptr [rbp], 0x80            0xc & 0x80     EFLAGS => 0x246 [ cf PF af ZF sf IF df of ac ]
0x7ffff7c8e77a <_IO_default_finish+74>  ✘ jne    _IO_default_finish+96       <_IO_default_finish+96>

检查完后回到_IO_new_fclose，再经过一下检查判断后调用free来释放结构体的chunk
free完后fclose函数全部结束

1
2
0x7ffff7c7ed1f <fclose+175>    mov    rdi, rbp     RDI => 0x5555555592a0 ◂— 0xfbad240c
0x7ffff7c7ed22 <fclose+178>    call   free@plt                    <free@plt>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
pwndbg> heap
Allocated chunk | PREV_INUSE
Addr: 0x555555559000
Size: 0x290 (with flag bits: 0x291)

Free chunk (tcachebins) | PREV_INUSE
Addr: 0x555555559290
Size: 0x1e0 (with flag bits: 0x1e1)
fd: 0x555555559

Allocated chunk | PREV_INUSE
Addr: 0x555555559470
Size: 0x30 (with flag bits: 0x31)

Top chunk | PREV_INUSE
Addr: 0x5555555594a0
Size: 0x20b60 (with flag bits: 0x20b61)

已经被free掉了，我们仍然试着查看结构体信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
pwndbg> p *(struct _IO_FILE_plus*) 0x5555555592a0
$12 = {
  file = {
    _flags = 1431655769,
    _IO_read_ptr = 0x3649288fbc281a3 <error: Cannot access memory at address 0x3649288fbc281a3>,
    _IO_read_end = 0x0,
    _IO_read_base = 0x0,
    _IO_write_base = 0x0,
    _IO_write_ptr = 0x0,
    _IO_write_end = 0x0,
    _IO_buf_base = 0x0,
    _IO_buf_end = 0x0,
    _IO_save_base = 0x0,
    _IO_backup_base = 0x0,
    _IO_save_end = 0x0,
    _markers = 0x0,
    _chain = 0x7ffff7e1b6a0 <_IO_2_1_stderr_>,
    _fileno = -1,
    _flags2 = 0,
    _old_offset = 0,
    _cur_column = 0,
    _vtable_offset = 0 '\000',
    _shortbuf = "",
    _lock = 0x555555559380,
    _offset = -1,
    _codecvt = 0x0,
    _wide_data = 0x555555559390,
    _freeres_list = 0x0,
    _freeres_buf = 0x0,
    __pad5 = 0,
    _mode = -1,
    _unused2 = '\000' <repeats 19 times>
  },
  vtable = 0x7ffff7e17600 <_IO_file_jumps>
}

看到直到fclose结束，vatble指针和_chain指针仍然保留着，同时也有一些其他域的信息仍然留存比如_wide_data
而这里的_flags为0x55555559，其实是tcachebin中这个chunk经过safe-linking后的fd值

0x06 IO缓冲机制

我们会发现调试fwrite时候只写入了_IO_FILE的缓冲区，而没有直接写入文件，这是glibc的IO缓冲机制，因为系统调用read或者write的开销很大（需要从用户态切换到内核态），所以依赖缓冲区来优化
在调试fwrite时，我们发现_IO_do_write会系统调用write输出fp->_IO_write_ptr到fp->_IO_write_base之间的内容，这是在缓冲区剩余空间不足或者第一次初始化分配缓冲区时候，_IO_file_overflow调用_IO_do_write做的
我们调试的时候是第一次初始化分配缓冲区，所以没有系统调用write，如果是因为缓冲区剩余空间不足时调用_IO_file_overflow，则会系统调用write输出fp->_IO_write_ptr到fp->_IO_write_base之间的内容，相当于刷新了缓冲区，将数据真正写入文件中
而在调试fread时候，我们发现数据被系统调用read直接从文件读出来了，这也是因为第一次初始化分配缓冲区后，缓冲区无数据，调用_IO_file_underflow函数刷新缓冲区，系统调用read来读出了数据
综上我们发现，刷新缓冲区后，数据才真正读入或者输出，那么什么时候刷新缓冲区呢？见下图
